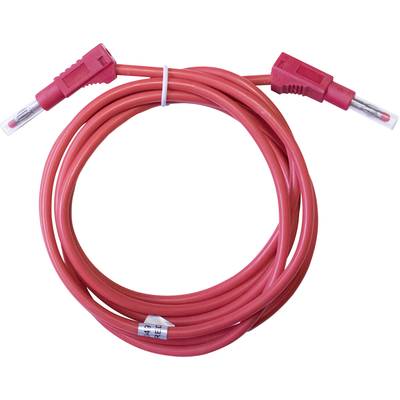

Mueller Electric BU-2323-10-36-2 Test lead 4 mm jack 4 mm jack 91.4 cm Red 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
14-day return policy included
Technical specifications
- Product type
Test lead
- Type A
4 mm jack
- Type B
4 mm jack
- Cable length
91.4 cm
- Factory colour
Red
- Plug features
Nestable
- Material
Silicone
- Nominal voltage
600 V
- Nominal current
45 A
- Nominal current - rounded value
45 A
- Contact material
Copper alloy tin plated
- Type
BU-2323-10-36-2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3330875 Mueller Electric BU-2323-10-36-2 Test lead 4 mm jack 4 mm jack 91.4 cm Red 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3330875 Mueller Electric BU-2323-10-36-2 Test lead 4 mm jack 4 mm jack 91.4 cm Red 1 pc(s)
Description
Banana plugs that can be stacked on the back and have high-force springs to ensure better grip. Spring-loaded, transparent, retractable sheath that provides electrical protection when the cable is not installed.
This text is machine translated.
This text is machine translated.
Features
- 10 AWG silicon wire
- 1064 strands 56/08x19C
- Tin-plated copper with a highly flexible sheath (5 mm diameter)
Scope of delivery
- measurement cable
