Mueller Electric BU-4150038M1.0 Coax Outside diameter: 4.95 mm RG58 50 Ω Black 1 pc(s)
Part number:
Item no:
Product type
Coax
Cable type
RG58
Impedance
50 Ω
Cable features
Shielded
Outside Ø
4.95 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 31.92
3
4% = € 1.38
€ 30.54
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 31.92 / piece)
€ 31.92
plus VAT.
14-day return policy included
Highlights & Details

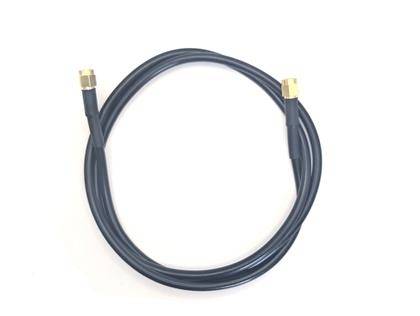

Mueller Electric BU-4150038M1.0 Coaxial cable SMA plug (straight) on SMA plug (straight)
- Cable type: SMA connector (straight) to SMA connector (straight)
- Shielding: Shielded
- Cable type (coaxial): RG-58 cable
- Impedance: 50 ohm
- Frequency range DC–3 GHz
- VSWR: Max. 1.2
- Operating voltage 335 V (at sea level)
- Operating temperature: -65 °C to 150 °C
Technical specifications
- Gold-plated SMA plug (male/plug), straight on both sides, shielded
- Weight: approx. 0.045 kg
- Product type
Coax
- Cable type
RG58
- Impedance
50 Ω
- Cable features
Shielded
- Core Ø
0.9 mm
- Factory colour
Black
- Outside Ø
4.95 mm
- Content
1 pc(s)
- Bend radius (no. of ODs for fixed installation)
5
- Bend radius (no. of ODs for flexible installation)
10
- Attenuation
24 dB
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Capacity per metre
101 pF
- Manufacturer part #
BU-4150038M1.0
- Insulation material
PVC
- Certification marks
MIL-C-17
- Test voltage
500 V
- Standards
RoHS compliant
- Min. temperature range (fixed installation)
-65 °C
- Max. temperature range (fixed installation)
150 °C
- Min. temperature range (flexible installation)
-40 °C
- Max. temperature range (flexible installation)
85 °C
- Type
BU-4150038M1.0
- Dielectric
Solid PE (polyethylene), diameter ca. 2.95 mm
Documents & Downloads
Datasheet
Datasheet 3776070 Mueller Electric BU-4150038M1.0 Coax Outside diameter: 4.95 mm RG58 50 Ω Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3776070 Mueller Electric BU-4150038M1.0 Coax Outside diameter: 4.95 mm RG58 50 Ω Black 1 pc(s)
Description
Reliable signal transmission in extreme conditions.
The Mueller Electric BU-4150038M1.0 coaxial cable is the perfect choice for demanding high frequency applications. Equipped with two straight SMA plugs and the robust, shielded RG-58 cable, it guarantees a low-loss signal transmission up to 3 GHz. Thanks to its outstanding VSWR value of up to 1.2 and extreme temperature resistance of -65°C to 150°C, this compound remains absolutely stable and secure even in extreme industrial or military areas. Trust precision when it comes to everything.
This text is machine translated.
The Mueller Electric BU-4150038M1.0 coaxial cable is the perfect choice for demanding high frequency applications. Equipped with two straight SMA plugs and the robust, shielded RG-58 cable, it guarantees a low-loss signal transmission up to 3 GHz. Thanks to its outstanding VSWR value of up to 1.2 and extreme temperature resistance of -65°C to 150°C, this compound remains absolutely stable and secure even in extreme industrial or military areas. Trust precision when it comes to everything.
This text is machine translated.
Scope of delivery
- 1x Mueller Electric BU-4150038M1.0 SMA (length 1.0 m) cable
