Mueller Electric BU-4150038M2.0 Coax Outside diameter: 4.95 mm RG58 50 Ω 60 dB Black 1 pc(s)
Part number:
Item no:
Product type
Coax
Cable type
RG58
Impedance
50 Ω
Shield rating greater than
60 dB
Cable features
Shielded
Datasheet (PDF)
Number
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
14-day return policy included
Highlights & Details

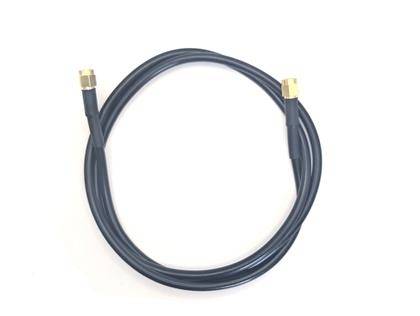

SMA-plug on SMA-plug coaxial cable, length 2.0 meters
- Cable type: SMA connector (straight) to SMA connector (straight)
- Shielding: Shielded
- Cable type (coaxial): RG-58 cable
- Impedance: 50 ohm
- Frequency range DC to 3 GHz
- VSWR: Max. 1.2
- Operating voltage 335 V (at sea level)
- Operating temperature: -65 °C to 150 °C
Technical specifications
- Pre-fabricated cable with 2.0 m length
- Product type
Coax
- Cable type
RG58
- Impedance
50 Ω
- Shield rating greater than
60 dB
- Cable features
Shielded
- Core Ø
0.9 mm
- Factory colour
Black
- Outside Ø
4.95 mm
- Content
1 pc(s)
- Bend radius (no. of ODs for fixed installation)
5
- Bend radius (no. of ODs for flexible installation)
10
- Attenuation
15 dB at 100 MHz
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Capacity per metre
101 pF
- Manufacturer part #
BU-4150038M2.0
- Insulation material
PVC
- Certification marks
MIL-C-17
- Test voltage
1900 V
- Standards
Complies with RoHS 3
- Min. temperature range (fixed installation)
-65 °C
- Max. temperature range (fixed installation)
150 °C
- Min. temperature range (flexible installation)
10 °C
- Max. temperature range (flexible installation)
70 °C
- Type
BU-4150038M2.0
- Dielectric
PE (polyethylene), fixed, diameter ca. 2.95 mm
Documents & Downloads
Datasheet
Datasheet 3776071 Mueller Electric BU-4150038M2.0 Coax Outside diameter: 4.95 mm RG58 50 Ω 60 dB Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3776071 Mueller Electric BU-4150038M2.0 Coax Outside diameter: 4.95 mm RG58 50 Ω 60 dB Black 1 pc(s)
Description
Reliable signal transmission in extreme conditions!
The Mueller Electric BU-4150038M2.0 coaxial cable is the perfect choice for demanding high-frequency applications. Equipped with straight SMA plugs on both sides and the proven, shielded RG-58 cable, it guarantees excellent signal quality at an impedance of 50 Ohm.
Whether in the laboratory, in telecommunications or under harsh industrial conditions – thanks to an impressive temperature range from -65 °C to 150 °C and a frequency power up to 3 GHz your connection remains absolutely stable. A maximum VSWR of 1.2 minimizes signal losses and ensures maximum efficiency. Rely on longevity and precision!
This text is machine translated.
The Mueller Electric BU-4150038M2.0 coaxial cable is the perfect choice for demanding high-frequency applications. Equipped with straight SMA plugs on both sides and the proven, shielded RG-58 cable, it guarantees excellent signal quality at an impedance of 50 Ohm.
Whether in the laboratory, in telecommunications or under harsh industrial conditions – thanks to an impressive temperature range from -65 °C to 150 °C and a frequency power up to 3 GHz your connection remains absolutely stable. A maximum VSWR of 1.2 minimizes signal losses and ensures maximum efficiency. Rely on longevity and precision!
This text is machine translated.
Scope of delivery
- 1x Mueller Electric BU-4150038M2.0 (SMA connector to SMA connector coaxial cable, length: 2.0 meters)
