Mueller Electric BU-4150038MM500 Coax Outside diameter: 4.95 mm RG58 50 Ω 60 dB Black 1 pc(s)
Part number:
Item no:
Product type
Coax
Cable type
RG58
Impedance
50 Ω
Shield rating greater than
60 dB
Cable features
Shielded
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.96
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
Only 2 Piece(s) available
Highlights & Details

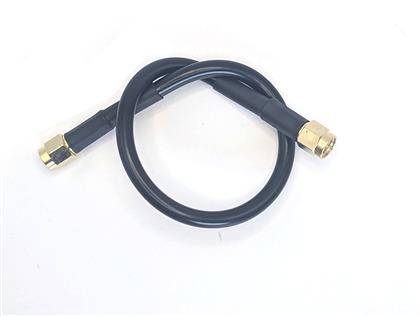

Coaxial cable SMA-plug (straight) on SMA-plug (straight) cable
- Cable type: SMA connector (straight) to SMA connector (straight) cable
- Shielding: Shielded
- Cable type (coaxial) RG-58 cable
- Impedance: 50 ohm
- Frequency range DC to 3 GHz
- VSWR: Max. 1.2
- Operating voltage 335 V (at sea level)
- Operating temperature: -65 °C to 150 °C
Technical specifications
- Gold plated SMA plug, straight plug on both sides (male/plug)
- Pre-assembled cable with 500 mm length
- Product type
Coax
- Cable type
RG58
- Impedance
50 Ω
- Shield rating greater than
60 dB
- Cable features
Shielded
- Core Ø
0.9 mm
- Factory colour
Black
- Outside Ø
4.95 mm
- Content
1 pc(s)
- Bend radius (no. of ODs for fixed installation)
5
- Bend radius (no. of ODs for flexible installation)
10
- Attenuation
24 dB/100m at 100 MHz
80 dB/100m at 1 GHz
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Capacity per metre
101 pF
- Manufacturer part #
BU-4150038MM500
- Insulation material
PVC
- Certification marks
Complies with RoHS 3
- Standards
REACH unaffected
- Min. temperature range (fixed installation)
-65 °C
- Max. temperature range (fixed installation)
150 °C
- Min. temperature range (flexible installation)
-65 °C
- Max. temperature range (flexible installation)
150 °C
- Type
BU-4150038MM500
- Dielectric
Solid polyethylene (PE) or PTFE
Documents & Downloads
Datasheet
Datasheet 3776073 Mueller Electric BU-4150038MM500 Coax Outside diameter: 4.95 mm RG58 50 Ω 60 dB Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3776073 Mueller Electric BU-4150038MM500 Coax Outside diameter: 4.95 mm RG58 50 Ω 60 dB Black 1 pc(s)
Description
Reliable signal transmission in extreme conditions
The Mueller Electric BU-4150038MM500 coaxial cable is the perfect choice for demanding high-frequency applications. Equipped with straight SMA plugs on both sides and a robust, shielded RG-58 cable, it guarantees a low-loss and interference-free signal transmission in the frequency range of DC up to 3 GHz. Thanks to the excellent standing wave ratio (VSWR max. 1.2) and an extreme temperature resistance from -65 °C to 150 °C this cable convinces both in the laboratory as well as in demanding industrial environments through uncompromising performance and long life.
This text is machine translated.
The Mueller Electric BU-4150038MM500 coaxial cable is the perfect choice for demanding high-frequency applications. Equipped with straight SMA plugs on both sides and a robust, shielded RG-58 cable, it guarantees a low-loss and interference-free signal transmission in the frequency range of DC up to 3 GHz. Thanks to the excellent standing wave ratio (VSWR max. 1.2) and an extreme temperature resistance from -65 °C to 150 °C this cable convinces both in the laboratory as well as in demanding industrial environments through uncompromising performance and long life.
This text is machine translated.
Scope of delivery
- 1x Mueller Electric BU-4150038MM500 SMA coaxial cable
