Mueller Electric BU-4150059M1.5 Coax Outside diameter: 4.95 mm RG58 50 Ω 60 dB Black 1 pc(s)
Part number:
Item no:
Product type
Coax
Cable type
RG58
Impedance
50 Ω
Shield rating greater than
60 dB
Cable features
Shielded
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 30.24
3
4% = € 1.32
€ 28.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 30.24 / piece)
€ 30.24
plus VAT.
Only 2 Piece(s) available
Highlights & Details

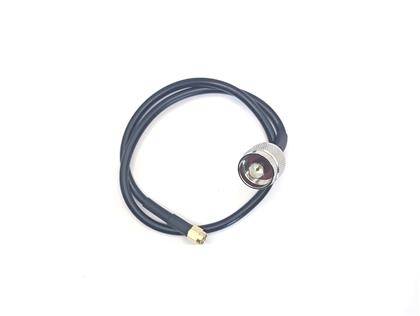

Coaxial cable SMA plug (straight) to N plug (straight)
- Cable type: SMA connector (straight) to N-connector (straight) coaxial cable
- Shielding: Shielded
- Cable specification RG-58
- Impedance: 50 ohm
- Frequency range DC to 3 GHz
- VSWR: Max. 1.2
- Operating voltage 335 V (at sea level)
- Operating temperature: -65 °C to 150 °C
Technical specifications
- Ready-made cable cable with a length of 1.5 meters
- Gold-plated contacts (SMA) or nickel-plated contacts (N).
- Product type
Coax
- Cable type
RG58
- Impedance
50 Ω
- Shield rating greater than
60 dB
- Cable features
Shielded
- Core Ø
0.9 mm
- Factory colour
Black
- Outside Ø
4.95 mm
- Content
1 pc(s)
- Bend radius (no. of ODs for fixed installation)
5
- Bend radius (no. of ODs for flexible installation)
10
- Attenuation
24 dB/100m at 100 MHz
80 dB/100m at 1 GHz
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Capacity per metre
101 pF
- Manufacturer part #
BU-4150059M1.5
- Insulation material
PVC
- Certification marks
MIL-C-17
- Test voltage
1400 V
- Standards
Complies with RoHS3
REACH unaffected
- Min. temperature range (fixed installation)
-65 °C
- Max. temperature range (fixed installation)
150 °C
- Min. temperature range (flexible installation)
-40 °C
- Max. temperature range (flexible installation)
80 °C
- Type
BU-4150059M1.5
- Dielectric
PE (polyethylene, fixed)
Documents & Downloads
Datasheet
Datasheet 3776074 Mueller Electric BU-4150059M1.5 Coax Outside diameter: 4.95 mm RG58 50 Ω 60 dB Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3776074 Mueller Electric BU-4150059M1.5 Coax Outside diameter: 4.95 mm RG58 50 Ω 60 dB Black 1 pc(s)
Description
Reliable signal transmission for the highest demands
The Mueller Electric BU-4150059M1.5 coaxial cable is the perfect connection solution for your high-frequency applications. Equipped with a precise SMA plug on the one hand and a robust N-plug on the other hand, this high-quality RG-58 cable guarantees a low-loss and excellent shielded signal transmission up to 3 GHz.
With an extremely wide temperature range from -65 °C to 150 °C and excellent VSWR levels of up to 1.2 °C, it remains absolutely stable even under the most demanding industrial and laboratory conditions. Rely on quality and longevity for your measurement and radio technology!
This text is machine translated.
The Mueller Electric BU-4150059M1.5 coaxial cable is the perfect connection solution for your high-frequency applications. Equipped with a precise SMA plug on the one hand and a robust N-plug on the other hand, this high-quality RG-58 cable guarantees a low-loss and excellent shielded signal transmission up to 3 GHz.
With an extremely wide temperature range from -65 °C to 150 °C and excellent VSWR levels of up to 1.2 °C, it remains absolutely stable even under the most demanding industrial and laboratory conditions. Rely on quality and longevity for your measurement and radio technology!
This text is machine translated.
Scope of delivery
- 1x Mueller Electric BU-4150059M1.5 (SMA-plug on N-plug coaxial cable, length: 1.5 meters)
