Mueller Electric BU-4150059MM500 Coax Outside diameter: 4.95 mm RG58 50 Ω 38 dB Black 1 pc(s)
Part number:
Item no:
Product type
Coax
Cable type
RG58
Impedance
50 Ω
Shield rating greater than
38 dB
Cable features
Shielded
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Only 2 Piece(s) available
Highlights & Details

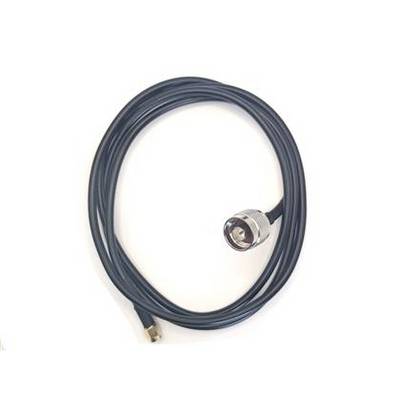

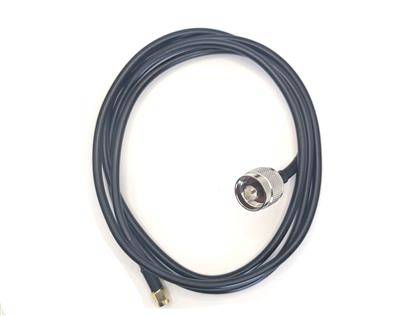

Mueller Electric BU-4150059MM500 coaxial cable (SMA connector to N connector)
- Cable type: SMA connector (straight) to N-connector (straight) coaxial cable
- Shielding: Shielded
- Cable type (raw cable): RG-58
- Impedance: 50 ohm
- Frequency range DC to 3 GHz
- VSWR: Max. 1.2
- Operating voltage 335 V (at sea level)
- Operating temperature: -65 °C to 150 °C
Technical specifications
- Length: 500 mm
- Product type
Coax
- Cable type
RG58
- Impedance
50 Ω
- Shield rating greater than
38 dB
- Cable features
Shielded
- Core Ø
0.9 mm
- Factory colour
Black
- Outside Ø
4.95 mm
- Content
1 pc(s)
- Bend radius (no. of ODs for fixed installation)
5
- Bend radius (no. of ODs for flexible installation)
10
- Attenuation
33 dB / 100 m at 435 MHz
56 dB / 100 m at 1 GHz
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Capacity per metre
101 pF
- Manufacturer part #
BU-4150059MM500
- Insulation material
PVC
- Certification marks
Complies with MIL-C-17
- Test voltage
5 kV
- Standards
RoHS compliant
- Min. temperature range (fixed installation)
-65 °C
- Max. temperature range (fixed installation)
150 °C
- Min. temperature range (flexible installation)
-40 °C
- Max. temperature range (flexible installation)
80 °C
- Type
BU-4150059MM500
- Dielectric
PE (polyethylene), nominal diameter 2.95 mm
Documents & Downloads
Datasheet
Datasheet 3776076 Mueller Electric BU-4150059MM500 Coax Outside diameter: 4.95 mm RG58 50 Ω 38 dB Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3776076 Mueller Electric BU-4150059MM500 Coax Outside diameter: 4.95 mm RG58 50 Ω 38 dB Black 1 pc(s)
Description
Reliable signal transmission in extreme conditions
The Mueller Electric BU-4150059MM500 coaxial cable is the perfect connection for demanding high-frequency applications. Fitted with precise, straight SMA and N connectors, this shielded RG-58 cable offers excellent signal integrity at an impedance of 50 Ohm. Thanks to a frequency range from DC to 3 GHz and a minimum VSWR of up to 1.2 precise measurements and loss-free transmissions are guaranteed. Whether in telecommunications, in the laboratory or under extreme temperature conditions from -65 °C to 150 °C – this robust cable stands for maximum performance and long life.
This text is machine translated.
The Mueller Electric BU-4150059MM500 coaxial cable is the perfect connection for demanding high-frequency applications. Fitted with precise, straight SMA and N connectors, this shielded RG-58 cable offers excellent signal integrity at an impedance of 50 Ohm. Thanks to a frequency range from DC to 3 GHz and a minimum VSWR of up to 1.2 precise measurements and loss-free transmissions are guaranteed. Whether in telecommunications, in the laboratory or under extreme temperature conditions from -65 °C to 150 °C – this robust cable stands for maximum performance and long life.
This text is machine translated.
Scope of delivery
- 1x Mueller Electric BU-4150059MM500 coaxial cable (SMA connector to N connector)
