Mueller Electric BU-4150059MM750 Coax Outside diameter: 4.95 RG58 50 Ω 40 dB Black 1 pc(s)
Part number:
Item no:
Product type
Coax
Cable type
RG58
Impedance
50 Ω
Shield rating greater than
40 dB
Cable features
Shielded
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.98
€ 21.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
Only 2 Piece(s) available
Highlights & Details

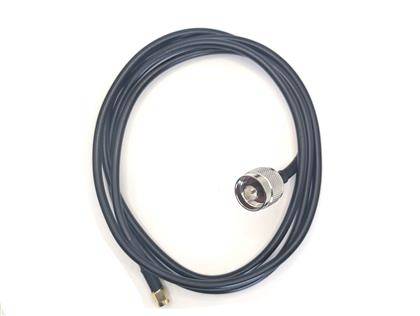

Mueller Electric BU-4150059MM750 SMA to N-type coaxial cable (length 750 mm)
- Cable type: SMA connector (straight) to N connector (straight) cable
- Shielding: Shielded
- Cable category RG-58 cable
- Impedance: 50 ohm
- Frequency range DC to 3 GHz
- VSWR: Max. 1.2
- Operating voltage 335 V (at sea level)
- Operating temperature: -65 °C to 150 °C
Technical specifications
- Ready-made cable, fixed length 750 mm
- Product type
Coax
- Cable type
RG58
- Impedance
50 Ω
- Shield rating greater than
40 dB
- Cable features
Shielded
- Core Ø
0.9 mm
- Factory colour
Black
- Outside Ø
4.95
- Content
1 pc(s)
- Bend radius (no. of ODs for fixed installation)
5
- Bend radius (no. of ODs for flexible installation)
10
- Attenuation
24 dB/100m at 400 MHz
45 dB/100m at 1 GHz
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Capacity per metre
101 pF
- Manufacturer part #
BU-4150059MM750
- Insulation material
PVC
- Certification marks
RoHS compliant
- Test voltage
1900 V
- Standards
MIL-C-17
- Min. temperature range (fixed installation)
-65 °C
- Max. temperature range (fixed installation)
150 °C
- Min. temperature range (flexible installation)
-40 °C
- Max. temperature range (flexible installation)
80 °C
- Type
BU-4150059MM750
- Dielectric
PE (polyethylene), fixed
Documents & Downloads
Datasheet
Datasheet 3776077 Mueller Electric BU-4150059MM750 Coax Outside diameter: 4.95 RG58 50 Ω 40 dB Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3776077 Mueller Electric BU-4150059MM750 Coax Outside diameter: 4.95 RG58 50 Ω 40 dB Black 1 pc(s)
Description
Reliable signal transmission in extreme conditions
The Mueller Electric BU-4150059MM750 coaxial cable is the perfect connection for your high-frequency applications. With a precise transition from SMA to N-plug and the proven, double shielded RG-58 cable, it guarantees minimum signal loss at an impedance of 50 Ohm. Thanks to the excellent VSWR value of up to a maximum of 1.2 and a frequency range up to 3 GHz, Ideal is suitable for precise measurement and laboratory technique. In addition, it can withstand the toughest environments: With an enormous temperature range from -65 °C to 150 °C, your connection remains absolutely stable and secure even under extreme thermal stress.
This text is machine translated.
The Mueller Electric BU-4150059MM750 coaxial cable is the perfect connection for your high-frequency applications. With a precise transition from SMA to N-plug and the proven, double shielded RG-58 cable, it guarantees minimum signal loss at an impedance of 50 Ohm. Thanks to the excellent VSWR value of up to a maximum of 1.2 and a frequency range up to 3 GHz, Ideal is suitable for precise measurement and laboratory technique. In addition, it can withstand the toughest environments: With an enormous temperature range from -65 °C to 150 °C, your connection remains absolutely stable and secure even under extreme thermal stress.
This text is machine translated.
Scope of delivery
- 1x Mueller Electric BU-4150059MM750 SMA to N-type coaxial cable (length 750 mm)
