Mueller Electric BU-P1825-2 Jack plug Plug Red 1 pc(s)
EAN:
Part number:
Item no:
Product type
Jack plug
Connector type
Plug
Connection
Banana plug
Nominal current
15 A
Nominal current - rounded value
15 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
14-day return policy included
Highlights & Details

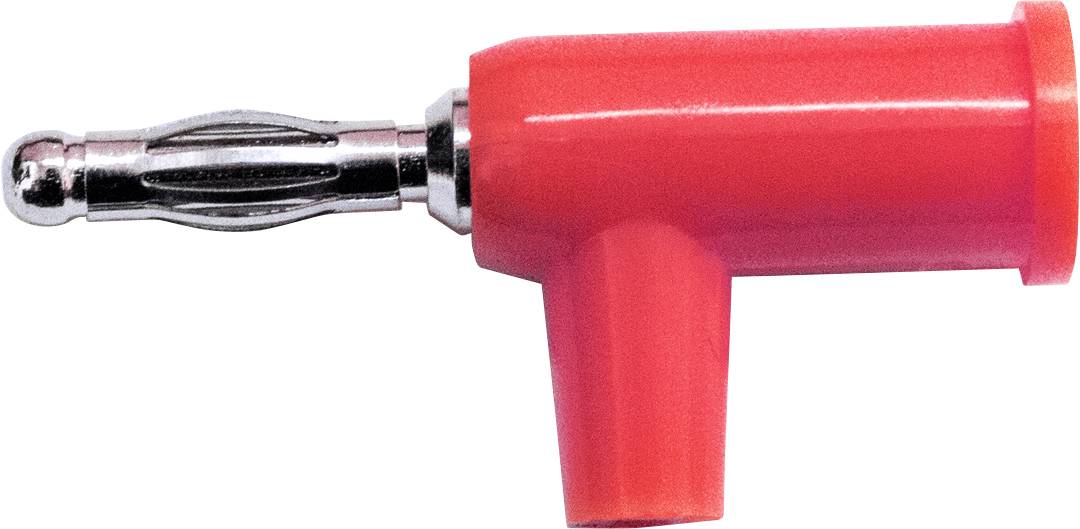

Stackable 4 mm banana plug, with side cable bushing and screw connection, red.
- 15 A Red
Technical specifications
- Hands-free testing up to 5000 VRMS
- Wire connection Inner diameter 4.30 mm
- Connection for adjusting screw Inner diameter: 4.30 mm
- Product type
Jack plug
- Connector type
Plug
- Nominal current
15 A
- Nominal current - rounded value
15 A
- Connection
Banana plug
- Factory colour
Red
- Manufacturer part #
BU-P1825-2
- Type
BU-P1825-2
- Content
1 pc(s)
- Insulation material
Polypropylene
- Contact material
Beryllium / copper
- Length
39.30 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3330898 Mueller Electric BU-P1825-2 Jack plug Plug Red 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3330898 Mueller Electric BU-P1825-2 Jack plug Plug Red 1 pc(s)
Description
Can be attached to wires from 22 AWG to 18 AWG using a small set screw. Useful for applications where soldering or crimping is not possible or where a temporary wire connection is required. Polypropylene housing with banana spring made of beryllium copper.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Stackable 4 mm banana plug, with wire side input and screw connection
