Mueller Electric WI-M-10-10-2 Copper wire 1 x 6 mm² + 1 x 6 mm² Red 3 m
EAN:
Part number:
Item no:
Product type
Copper wire
No. of leads
1 x
Cross section (each core)
6 mm²
Outside Ø
6 mm
Content
3 m
Datasheet (PDF)
Number
Total (1 m = € 15.68)
€ 47.05
plus VAT.
Only 1 Piece(s) available
Highlights & Details

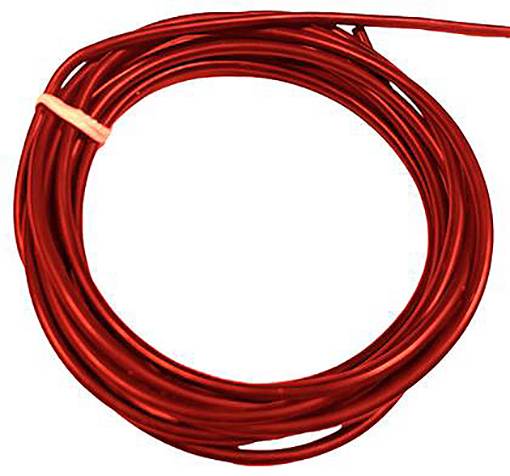

Silicon cable wire, 10 AWG, red, 3M long
- 10 AWG, 1050/0.08 cord, tin-plated copper wire with highly flexible silicone sheath with 6 mm diameter
- This text is machine translated.
Technical specifications
- Jacket material: Silicone
- Conductor material: Tin-plated copper wire
- Dielectric strength 3.2 KV/min.
- Temperature rating: FT2
- UL approved: UL 3640
- Product type
Copper wire
- No. of leads
1 x
- Content
3 m
- Cross section (each core)
6 mm²
- Insulation material
Silicone
- Cable features
highly flexible
- Cross section (each core) (part 2)
6 mm²
- No. of leads (part 2)
1 x
- Outside Ø
6 mm
- Nominal voltage
1100 V
- AWG max.
10
- AWG (min.)
10
- Manufacturer part #
WI-M-10-10-2
- Factory colour
Red
- Max. length sold by the metre
3 m
- Sold per metre
No
- Cross section
1 x 6 mm² + 1 x 6 mm²
- RoHS-compliant
Yes
- Max. temperature range (flexible installation)
+180 °C
- Min. temperature range (flexible installation)
-40 °C
- Type
WI-M-10-10-2
- Standards
Underwriters Laboratories Inc. (UL)
Documents & Downloads
Datasheet
Datasheet 3330919 Mueller Electric WI-M-10-10-2 Copper wire 1 x 6 mm² + 1 x 6 mm² Red 3 m
User & Safety Instructions
User & Safety Instructions 3330919 Mueller Electric WI-M-10-10-2 Copper wire 1 x 6 mm² + 1 x 6 mm² Red 3 m
Description
Scope of delivery
- Silicon wire, 10 AWG, red, 3M long
