Mueller Electric WI-M-18-10-0 Copper wire 1 x 3.6 mm² + 1 x 3.6 mm² Black 3 m
EAN:
Part number:
Item no:
Product type
Copper wire
No. of leads
1 x
Cross section (each core)
3.6 mm²
Outside Ø
3.6 mm
Content
3 m
Datasheet (PDF)
Quantity (Piece(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 6.16
€ 18.48
3
1 M = € 5.85
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 6.16)
€ 18.48
plus VAT.
Only 3 Piece(s) available
Highlights & Details

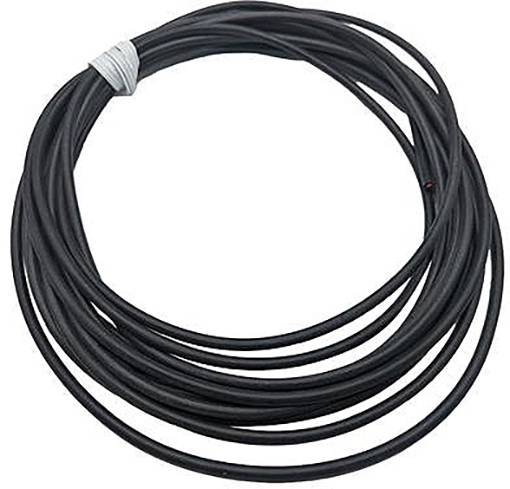

Silicon cable wire, 18 AWG, black, 3M long
- 18 AWG, 413/44 copper wire with a highly flexible silicone sheath with 3.6 mm diameter
- This text is machine translated.
Technical specifications
- Jacket material: Silicone
- Conductor material: Copper wire
- UL listed: Model 3577
- Product type
Copper wire
- No. of leads
1 x
- Content
3 m
- Cross section (each core)
3.6 mm²
- Insulation material
Silicone
- Cable features
highly flexible
- Cross section (each core) (part 2)
3.6 mm²
- No. of leads (part 2)
1 x
- Outside Ø
3.6 mm
- Nominal voltage
3000 V
- AWG max.
18
- AWG (min.)
18
- Manufacturer part #
WI-M-18-10-0
- Factory colour
Black
- Max. length sold by the metre
3 m
- Sold per metre
No
- Nominal current
22 A
- Cross section
1 x 3.6 mm² + 1 x 3.6 mm²
- RoHS-compliant
Yes
- Max. temperature range (flexible installation)
+150 °C
- Type
WI-M-18-10-0
- Standards
Underwriters Laboratories Inc. (UL)
Documents & Downloads
Datasheet
Datasheet 3330921 Mueller Electric WI-M-18-10-0 Copper wire 1 x 3.6 mm² + 1 x 3.6 mm² Black 3 m
User & Safety Instructions
User & Safety Instructions 3330921 Mueller Electric WI-M-18-10-0 Copper wire 1 x 3.6 mm² + 1 x 3.6 mm² Black 3 m
Description
Scope of delivery
- Silicon wire, 18 AWG, black, 3M long
