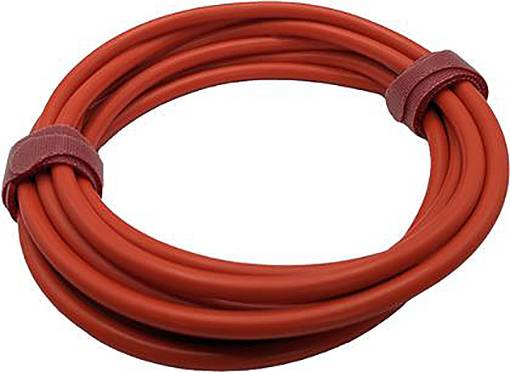

Mueller Electric WI-M-8-10-2 Copper wire 1 x 6.5 mm² + 1 x 6.5 mm² Red 3 m
EAN:
Part number:
Item no:
Product type
Copper wire
No. of leads
1 x
Cross section (each core)
6.5 mm²
Outside Ø
6.5 mm
Content
3 m
Datasheet (PDF)
Number
Total (1 m = € 12.88)
€ 38.65
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Silicon cable wire, 8 AWG, red, 3M long
- 8 AWG, 1650/0.08 cord, tin-plated copper wire with highly flexible silicone sheath with 6.5 mm diameter
- This text is machine translated.
Technical specifications
- Jacket material: Silicone
- Conductor material: Tin-plated copper wire
- 180 A at 150 °C.
- Dielectric strength 3.2 KV/min.
- Temperature resistance FT2
- UL approved: UL 3640
- Product type
Copper wire
- No. of leads
1 x
- Content
3 m
- Cross section (each core)
6.5 mm²
- Insulation material
Silicone
- Cable features
highly flexible
- Cross section (each core) (part 2)
6.5 mm²
- No. of leads (part 2)
1 x
- Outside Ø
6.5 mm
- Nominal voltage
1100 V
- AWG max.
8
- AWG (min.)
8
- Manufacturer part #
WI-M-8-10-2
- Factory colour
Red
- Core layout
1650/0.08 mm
- Max. length sold by the metre
3 m
- Sold per metre
No
- Cross section
1 x 6.5 mm² + 1 x 6.5 mm²
- RoHS-compliant
Yes
- Max. temperature range (flexible installation)
+200 °C
- Min. temperature range (flexible installation)
-40 °C
- Max. temperature range (fixed installation)
150 °C
- Type
WI-M-8-10-2
- Standards
Underwriters Laboratories Inc. (UL)
Documents & Downloads
Datasheet
Datasheet 3330926 Mueller Electric WI-M-8-10-2 Copper wire 1 x 6.5 mm² + 1 x 6.5 mm² Red 3 m
User & Safety Instructions
User & Safety Instructions 3330926 Mueller Electric WI-M-8-10-2 Copper wire 1 x 6.5 mm² + 1 x 6.5 mm² Red 3 m
Description
Scope of delivery
- Silicon wire, 8 AWG, red, 3M long
