Müller KNX 23653 Room thermostat TS 30.10 knx
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Operating voltage: via KNX bus voltage
- Product type
Room thermostat
- Series
KNX
IP20
- Power supply (LOV)
via PSU bus
- Data transfer (Smart Home)
Wired
- Frequency
868 MHz
- Mounting type
Surface-mount
Wall
- Factory colour
White

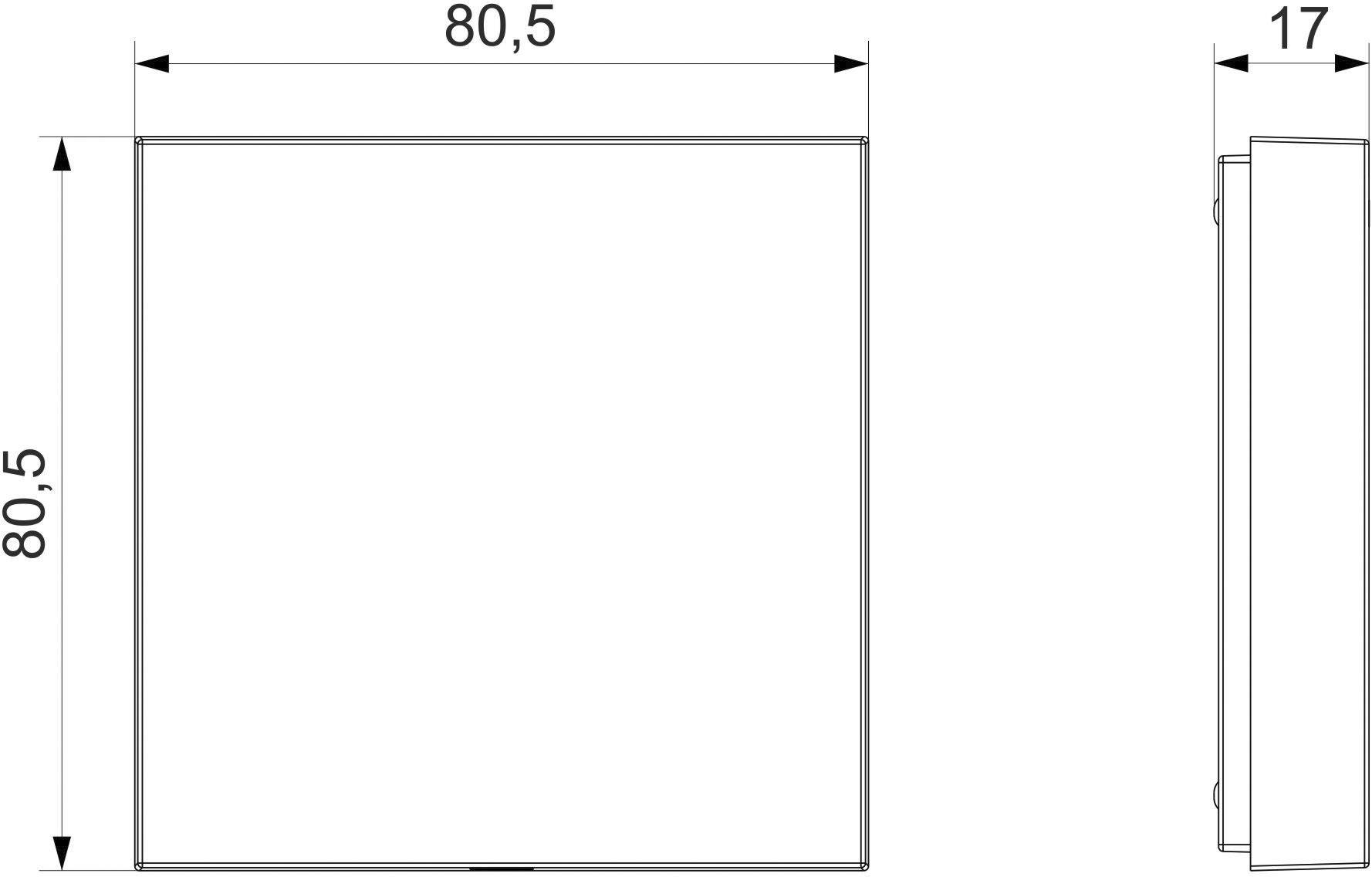

- Width
80.5 mm
- Height
80.5 mm
- Depth
17 mm
- Dim
(W x H x D) 80.5 x 80.5 x 17 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
90 g
Documents & Downloads
Datasheet
Datasheet 1954063 Müller KNX 23653 Room thermostat TS 30.10 knx
User & Safety Instructions
User & Safety Instructions 1954063 Müller KNX 23653 Room thermostat TS 30.10 knx
Description
Features
- Recording of the room temperature
- Temperature sensor (measurement range 0 - 50°C)

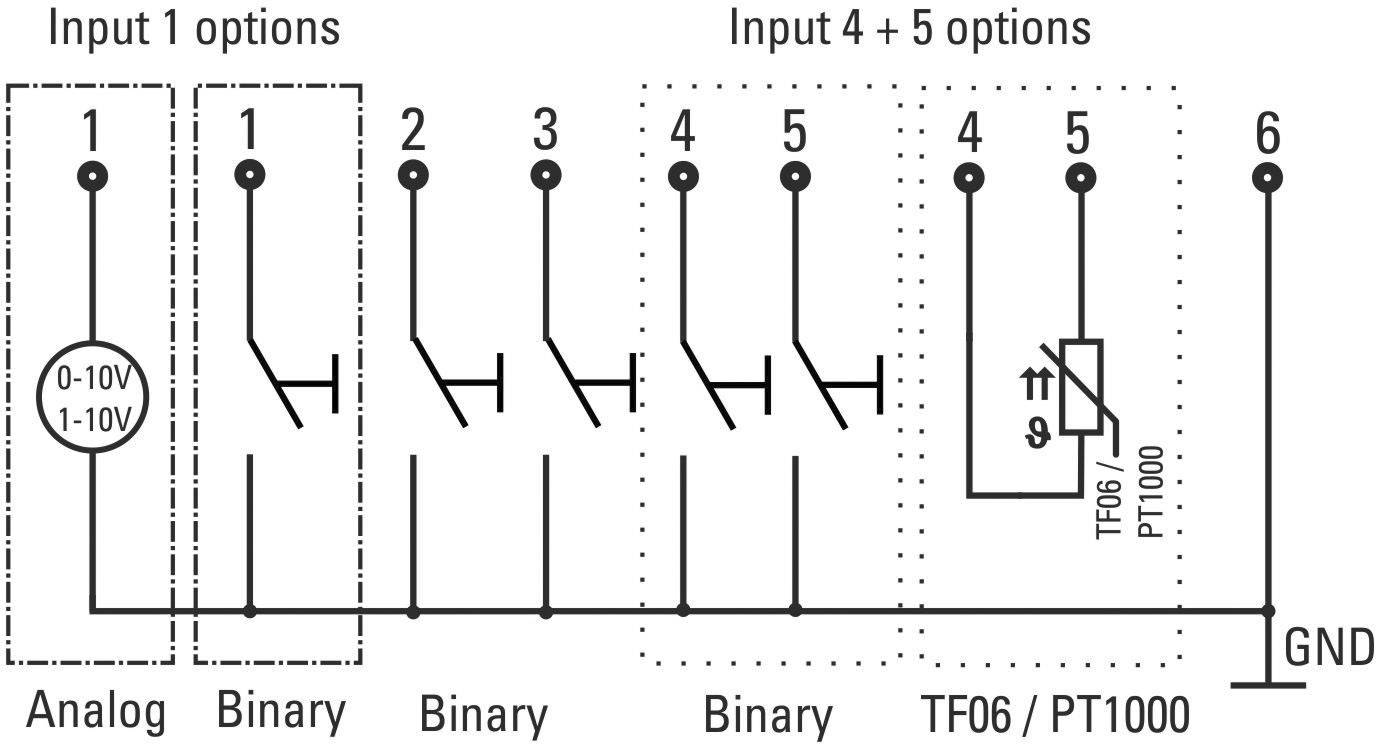

- 5 binary and analogue inputs (e.g. for connecting an external temperature sensor)
- Easy handling and installation
- Modern, flat design for surface mounting
- Temperature control via KNX
- This text is machine translated.
