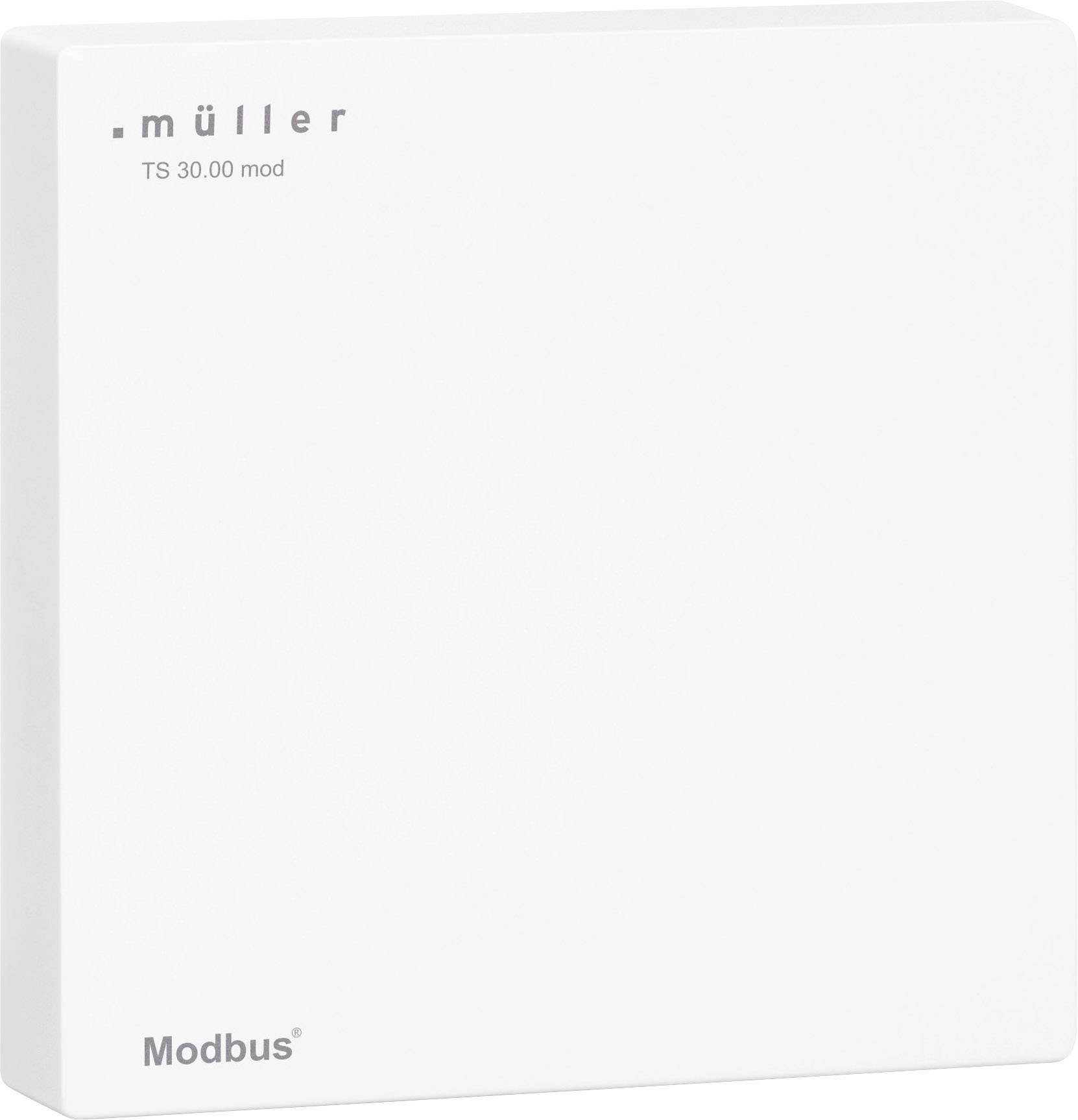

Müller Müller 23930 Room sensor TS 30.00 mod
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
14 days return policy included
Technical specifications
- Connection type: Push-in terminal
- Supply voltage 12 - 40 V DC
- Bus system: Modbus ASCII, Modbus RTU via RS 485
- Product type
Room sensor
- Series
Müller
- Used at
Indoors
IP20
- Data transfer (Smart Home)
Wired
- Frequency
868 MHz
- Mounting type
Wall
Surface-mount
- Factory colour
Studio white (similar to RAL 9016)

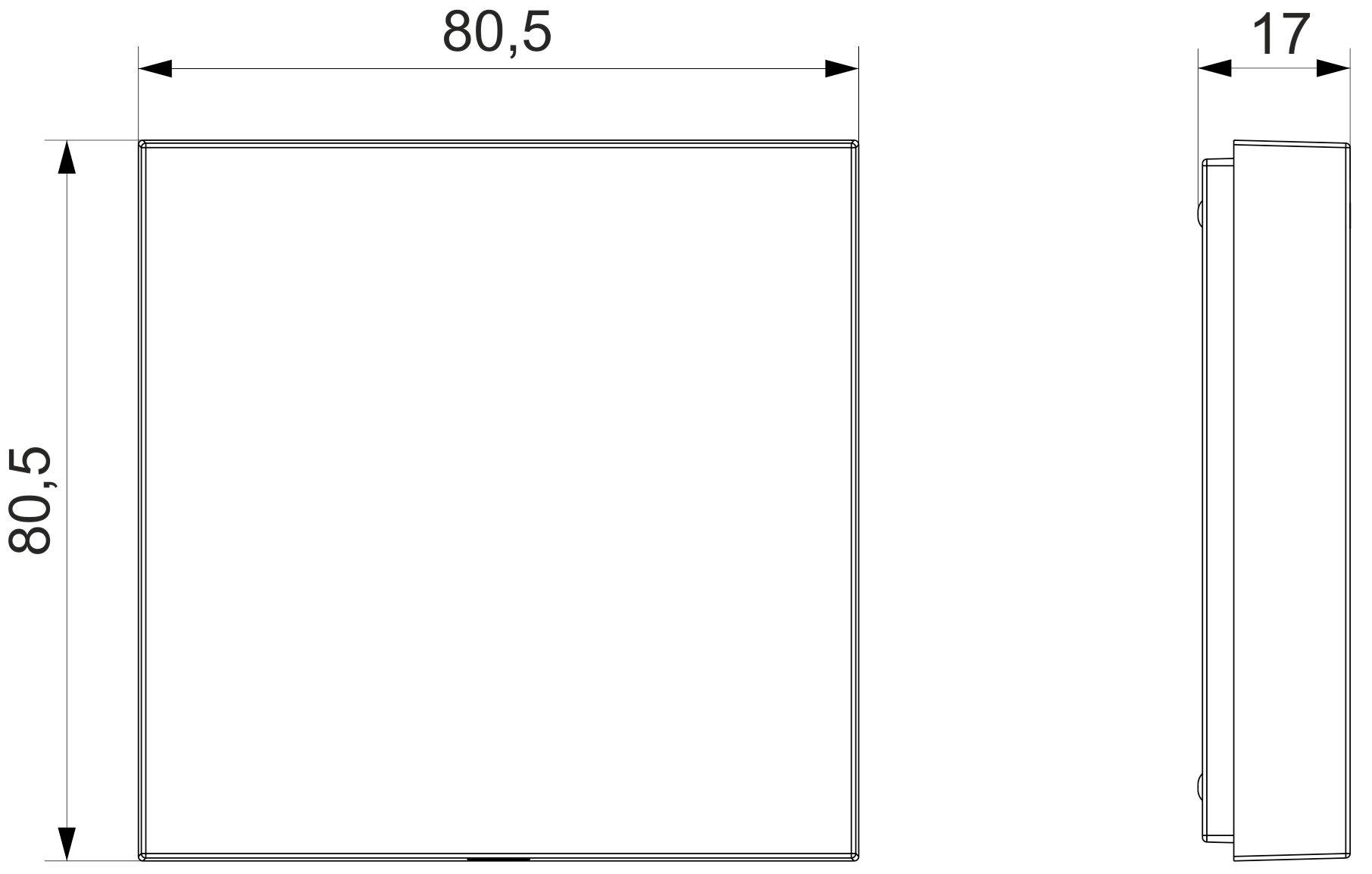

- Width
80.5 mm
- Height
80.5 mm
- Depth
17 mm
- Dim
(W x H x D) 80.5 x 80.5 x 17 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
100 g
- Features
Test function
Documents & Downloads
Datasheet
Datasheet 2281501 Müller Müller 23930 Room sensor TS 30.00 mod
User & Safety Instructions
User & Safety Instructions 2281501 Müller Müller 23930 Room sensor TS 30.00 mod
Description
Room temperature sensor
This text is machine translated.
This text is machine translated.
Features
- Temperature sensor (measuring range 0...50 °C)Modbus operating mode (ASCII / RTU) can be configuredEasy handling and installationModern, low-profile design
