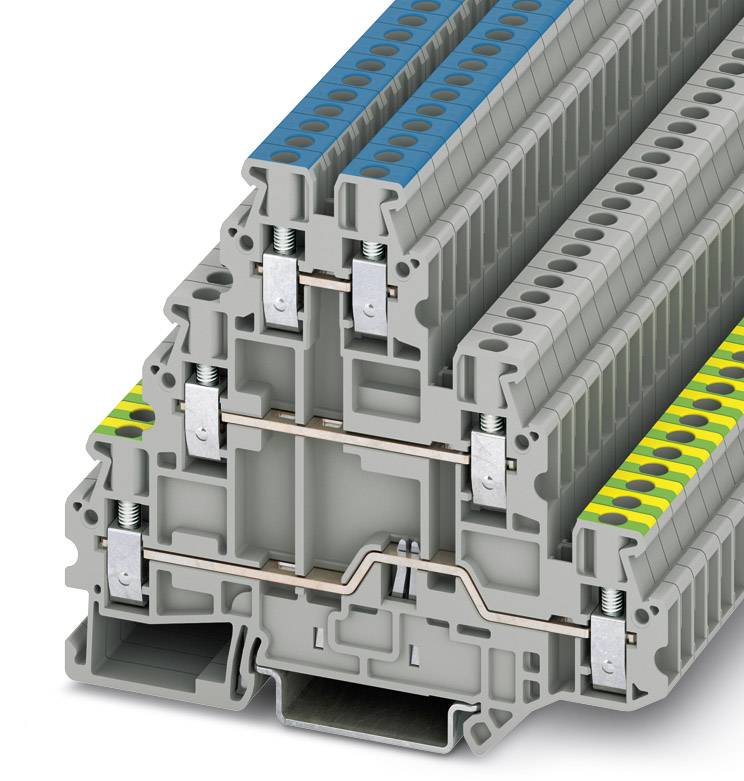

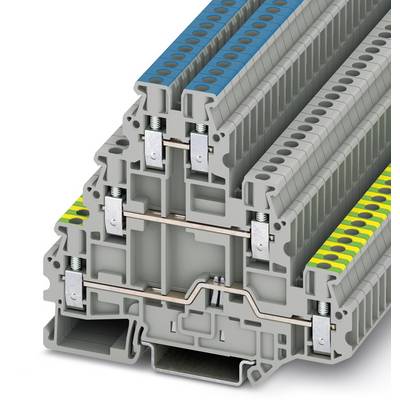

Multi-level terminal block UT 2,5-PE/L/N 3214291 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Triple port PG terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
19 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 6.47 / piece)
€ 348.74
-7 %
€ 323.53
plus VAT.
14-day return policy included
Technical specifications
- Product type
Triple port PG terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
12
- Clamp width
5.2 mm
- No. of rows
3
- Number of pins
6
- Factory colour
Grey
- Nominal current
19 A
- Nominal current - rounded value
19 A
- Nominal voltage
500 V
- Stripping length (max.)
9 mm
- Manufacturer part #
3214291
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UT 2,5-PE/L/N
- Dim
(L x W x H) 90 x 5.2 x 77.5 mm
- Width
5.2 mm
- Height
77.5 mm
- Length
90 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 718403 Multi-level terminal block UT 2,5-PE/L/N 3214291 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 718403 Multi-level terminal block UT 2,5-PE/L/N 3214291 Phoenix Contact
Description
Multi-level terminal block, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, Connection type: Screw connection, Width: 5.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
