Multimetrix MH 401 Insulation tester 250 V, 500 V, 1000 V
EAN:
Part number:
Item no:
Number
Total (€ 298.32 / piece)
€
Only 2 Piece(s) available
Highlights & Details
MH 401 Insulation measuring device
- Measurement of insulation at 250 / 500 / 1000 V. DC up to 2000 Ω
- Measurement of the continuity resistance with currents from 200 mA
- Ease of use with the functions: Timer / data hold / test lead compensation
- CAT III 300V (IEC 61010-1)
Technical specifications
- Insulation resistance (max.) 2000 Ω
- Product type
Insulation tester
- Test voltage
250 V
500 V
1000 V
- Reading type
Insulation resistance
- Continuity testing
2000 Ω
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 55 x 205 x 90 mm
- Weight
600 g
- Display type
Digital (LCD)
- Frequency range
- Voltage reading range (max.)
600 V
- Voltage reading range (min.)
0 V
- Reading category
CAT III 600 V
- Width
205 mm
- Height
90 mm
- Length
55 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2346537 Multimetrix MH 401 Insulation tester 250 V, 500 V, 1000 V
Description
The Multimetrix MH 401 is a simple insulation meter that enables the insulation measurement at 250, 500 or 1000 V for resistances up to 2000 Ω.
The measuring device also enables the measurement of alternating voltages up to 600 V AC and the continuity test.
It includes automatic test lead compensation, warns of the presence of voltage and offers the following additional functions: Timer, DATA HOLD, automatic shut-off.
This text is machine translated.
The measuring device also enables the measurement of alternating voltages up to 600 V AC and the continuity test.
It includes automatic test lead compensation, warns of the presence of voltage and offers the following additional functions: Timer, DATA HOLD, automatic shut-off.
This text is machine translated.

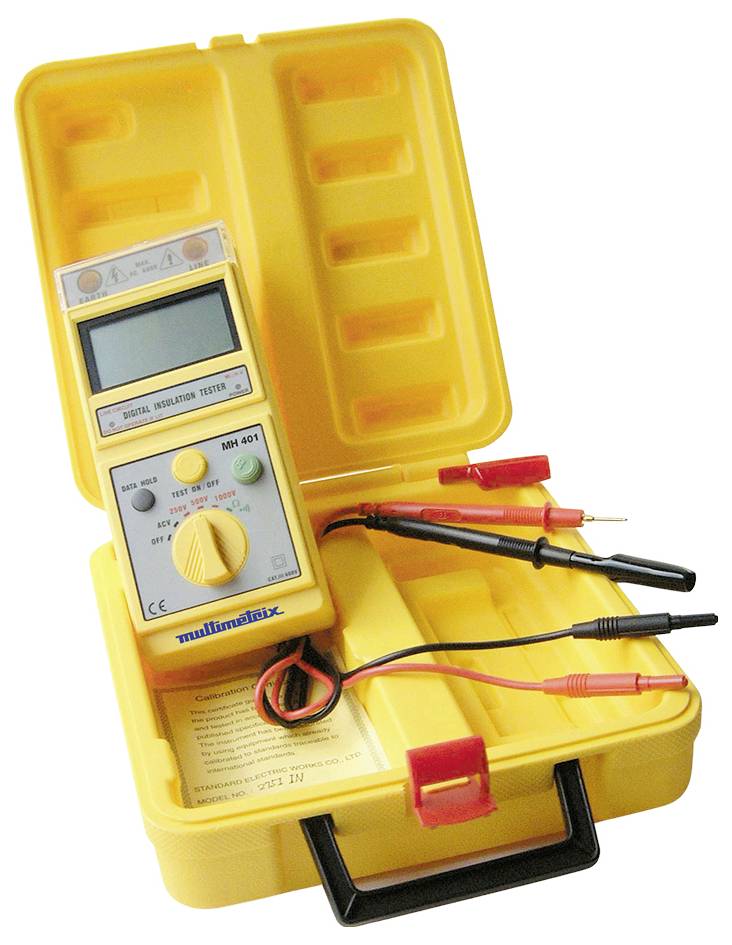

Scope of delivery
- 1 carrying case
- 2 test leads 80 cm (red/black) with test tips
- 2 alligator clips (red/black)
- 6 x 1.5 V batteries
