Multimetrix P06236902 Tachometer Mechanical, Optical 0.5 - 19999 U/min 2.5 - 99999 U/min
EAN:
Part number:
Item no:
5 Piece(s)
Sales and shipping:
Number
Total (€ 176.46 / piece)
€
Only 5 Piece(s) available
Highlights & Details
Rpm 82 digital tachometer
- Digital tachometer with or without contact
- Accuracy 0.05% + 1 digit
- Automatic selection of measuring ranges
- MAX, MIN, HOLD FUNCTION
- Speed and throughput speed:
- Speed with contact: 0.5 rpm to 19,999 rpm
- Speed without contact: 2.5 rpm to 99.999 rpm
- Throughput speed 0.05 m/min to 1999.9 m/min.
Technical specifications
- Automatic range selection
- RPM accuracy
0,05 % + 1 Digit
- Speed resolution
0.1 U/min
- Reading distance
50 mm - 500
- Dim
(L x W x H) 72 x 160 x 37 mm
- Weight
300 g
- Height
37 mm
- Length
72 mm
- Width
160 mm
- Rotational speed range (max.)
0.5 - 19999 U/min
- Rotational speed (optical)
2.5 - 99999 U/min
Manufacturer's standards (no certificate)
- Display
LCD
Digital
- Measuring type
Mechanical
Optical
- Type
RPM 82
- Rotational speed, mechanical (max.)
19999 U/min
- Rotational speed, mechanical (min.)
0.5 U/min
- Rotational speed, optical (max.)
99999 U/min
- Rotational speed, optical (min.)
2.5 U/min
- Product type
Tachometer
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2346540 Multimetrix P06236902 Tachometer Mechanical, Optical 0.5 - 19999 U/min 2.5 - 99999 U/min
Description

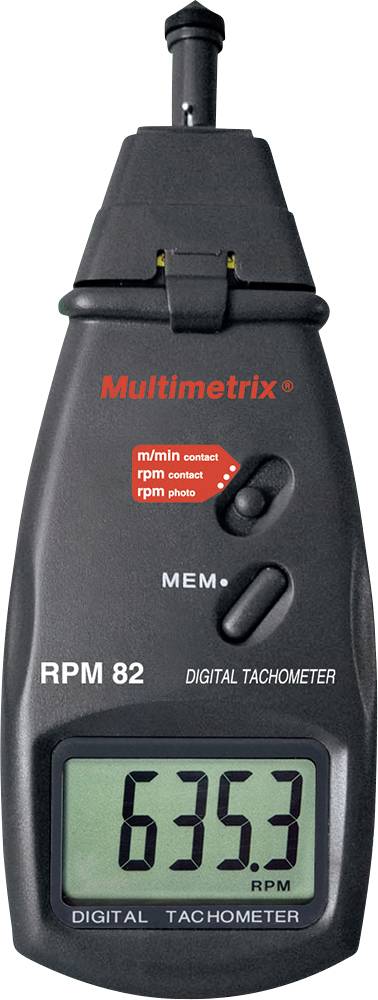

The Multimetrix RPM 82 is a very easy to use digital tachometer. It is used to measure rotation speeds with or without contact.
The contact-free measurement of the speed is done via reflective adhesive tape, which is attached to the object to be measured.
For the measurement of the speed with contact, the user can choose to measure the revolutions per minute or the surface speed.
The measured values can be saved. By pressing and holding the memory button during the measurement, the device saves the last, maximum and minimum value of the time period when released. These can then be called up immediately after the measurement.
This text is machine translated.
The contact-free measurement of the speed is done via reflective adhesive tape, which is attached to the object to be measured.
For the measurement of the speed with contact, the user can choose to measure the revolutions per minute or the surface speed.
The measured values can be saved. By pressing and holding the memory button during the measurement, the device saves the last, maximum and minimum value of the time period when released. These can then be called up immediately after the measurement.
This text is machine translated.
Scope of delivery
- 1 module for contact measurement
- 1 concave end piece
- 1 convex end piece
- Reflective tape
- 1 operating instructions
- 4 batteries
