MUNK Günzburger Steigtechnik 033808 Wood Step ladder 7.4 kg
EAN:
Part number:
Item no:
Highlights & Details
Munk step ladder wood can be walked on both sides 2x4 steps
- Ready to mount.
Technical specifications
- Number of steps/rungs: 2x4
- Working height: 2475 mm
- Max. Standing height 475 mm
- Step length 925 mm
- Level/rung height 20 mm
- Lower outer width 505 mm
- Angle 70 °
- Upper outer width: 430 mm
- Step design: Mixed stages + rungs
- Step/rung distance 250 mm
- Conductor length 1135 mm
- Permitted as work station: TRUE
- Total length folded 1135 mm
- Product type
Step ladder
- Material
Wood
- Weight
7.4 kg
- Extendable part width
22 mm
- Extendable part height
65 mm
- Height
1140 mm
- Load capacity (max.)
150 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3401137 MUNK Günzburger Steigtechnik 033808 Wood Step ladder 7.4 kg
Description

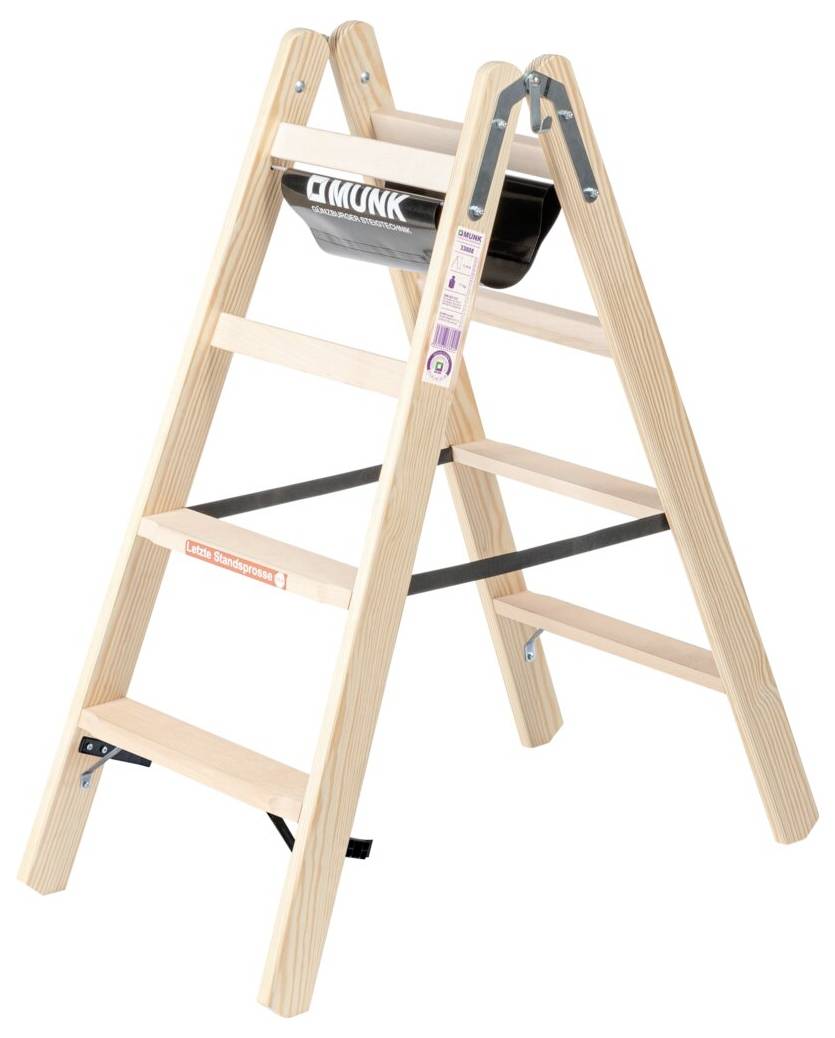

Step ladder made of wood. Beams made of solid conifers, steps made of beech wood . 80 mm deep, corrugated stages. The top two rungs made of beech 22 x 44 mm. Step/spar connection to produce smooth timber surface. Stable horseshoe hinges of steel. Includes a practical bucket hook as standard. Expanding safety through firmly screwed textile strap. Plastic transport protection at the conductor base. Step spacing 230 mm Conductor inclination: 70°. Maximum load 150 kg
