MUNK Günzburger Steigtechnik 040345 Insert 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

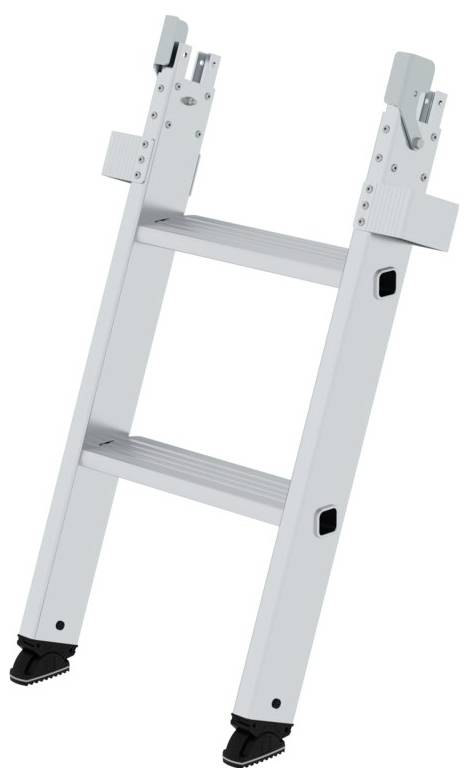

Munk insert for step-laying ladder trucks
- Can be mounted without any tools
Technical specifications
- Max. Standing height 1700 mm
- Angle 70 °
- Step width 300 mm
- R9. Anti-slip class
- Step design: Step
- Step/rung distance 235 mm
- Conductor length 700 mm
- Valid as traffic: TRUE
- Product type
Insert
- Material
Aluminium
- External width
437 mm
- Extendable part width
25 mm
- Extendable part height
73 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3401160 MUNK Günzburger Steigtechnik 040345 Insert 1 pc(s)
Description
Conductor plug-in module made of aluminum. Sturdy rectangular tube beams. 80 mm deep, corrugated stages. 4-way Level-/cross beam connection Extension of the LKW-ladder to 2 m total length. For secure access to truck / trailer. Levelo® shoes with patented 2-axis tilt technology. Step spacing 235 mm Line width 420 mm Conductor inclination: 70°. Maximum load 150 kg
