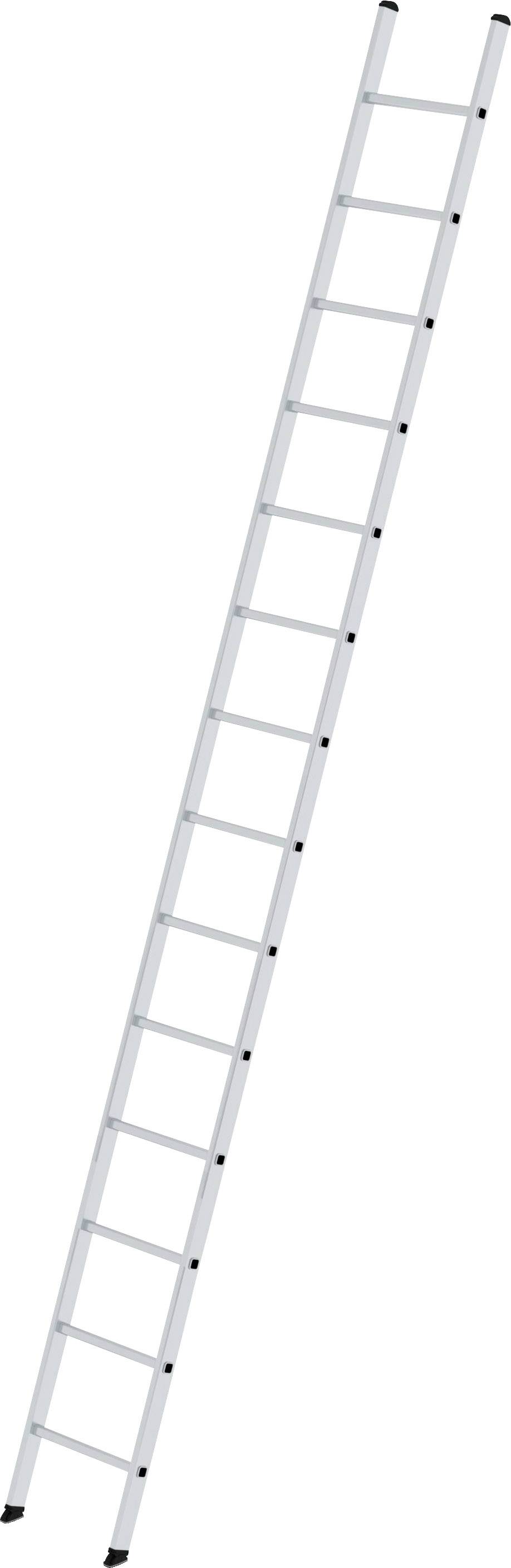

MUNK Günzburger Steigtechnik 10014 Aluminium Ladder Operating height (max.): 5.3 m
EAN:
Part number:
Item no:
Technical specifications
- Internal proof of inspection: K07198
- Product type
Ladder
- Working height range
5.1 m - 6 m
- Material
Aluminium
- Length
4.15 m
- No. of rungs/steps
14
- Operating height (max.)
5.3 m
- External width
420 mm
- Design type
To lean on
- Steps
280 mm
- Load capacity (max.)
150 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2271067 MUNK Günzburger Steigtechnik 10014 Aluminium Ladder Operating height (max.): 5.3 m
Description
Stainless steel ladder made of aluminum stable rectangular tube-bars square sprouts fluted on both sides 30 x 30 mm 4-way crimped wire / bar connection rung distance: 280 mm conductor width: 420 mm (without cross rail) nivello®-conductor shoes with patented 2-axis inclination technology Note: Landing strips above 3.0 m may only be used without a cross beam if they are used exclusively for their intended purpose (e.g. permanently installed, fitted with hooks, fastened with belt) Maximum load: 150 kg
