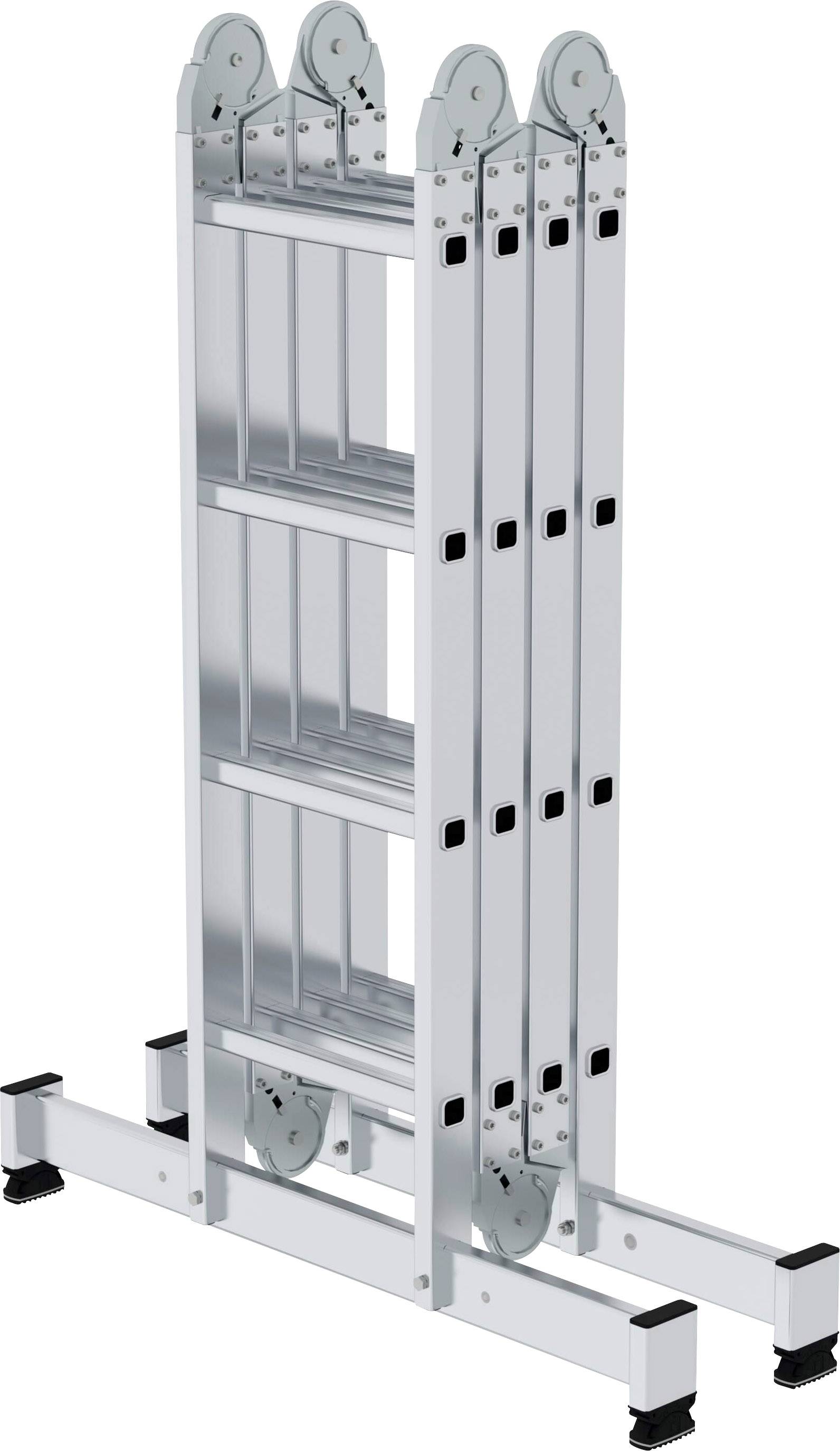

MUNK Günzburger Steigtechnik 11111 Aluminium Multi-purpose ladder Set-up requires tools Operating height (max.): 5.85 m
EAN:
Part number:
Item no:
Technical specifications
- Conductor length as vertical conductor: 2.3 m
- Step length as vertical conductor: 1.55 m
- Step length: 1.55 m
- Transport dimension width: 0.35 m
- Transport dimension height: 1.23 m
- Transport dimension depth: 0.25 m
- Trafer width: 0.93 m.
- Product type
Multi-purpose ladder
- Working height range
5.1 m - 6 m
- Material
Aluminium
- No. of rungs/steps
16
- Weight
15500
- Operating height (max.)
5.85 m
- Design type
4-part, flexible
- Features
Set-up requires tools
- Steps
280 mm
- Load capacity (max.)
150 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2271990 MUNK Günzburger Steigtechnik 11111 Aluminium Multi-purpose ladder Set-up requires tools Operating height (max.): 5.85 m
Description
Rung multi-purpose conductor made of aluminum stable rectangular pipe-beams on both sides corrugated square sprouts 30 x 30 mm 4-way crimped rung / spar connection can be used as a standing and landing conductor as well as optionally as working platform (see accessories) optimal application security through six automatically locking steel hinges nivello® crossbars for an extra secure stand and rise (both sides are loose) Srung distance: 280 mm conductor width 420 mm (without cross rail) maximum load 150 kg
