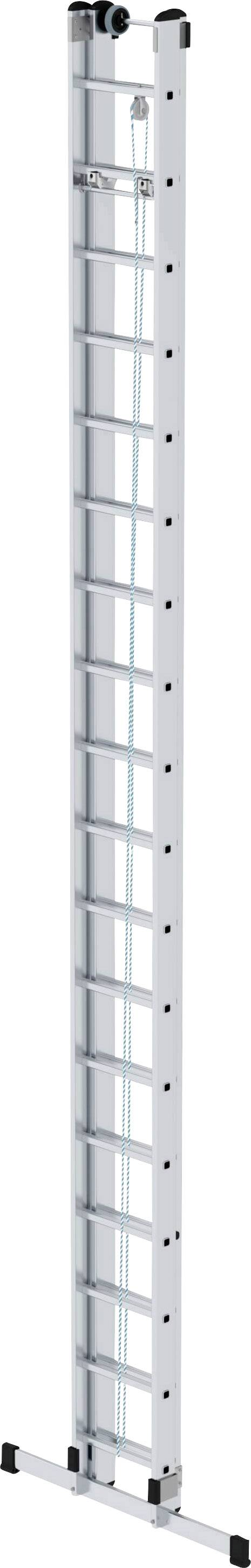

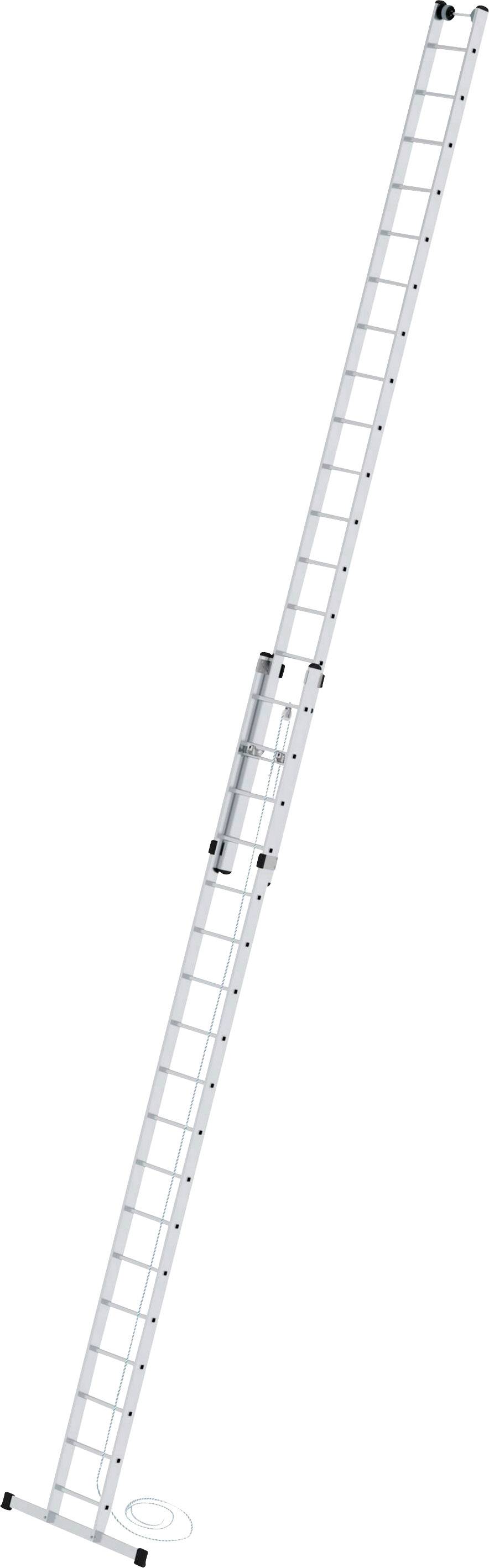

MUNK Günzburger Steigtechnik 21718 Aluminium Rope operated extension ladder Set-up requires tools Operating height (max.
EAN:
Part number:
Item no:
Technical specifications
- External test certificate: 2228711KAU-017: 2017-09-19
- Length extended: 9.18 m
- Length retracted: 5.3 m
- Traverer width: 1.2 m.
- Product type
Rope operated extension ladder
- Working height range
10.1 m - 11 m
- Material
Aluminium
- No. of rungs/steps
36
- Step depth
30 mm
- Operating height (max.)
10.3 m
- External width
420 mm
- Design type
To lean on
- Features
Set-up requires tools
- Steps
280 mm
- Load capacity (max.)
150 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2271105 MUNK Günzburger Steigtechnik 21718 Aluminium Rope operated extension ladder Set-up requires tools Operating height (max.
Certificate
Certificate 2271105 MUNK Günzburger Steigtechnik 21718 Aluminium Rope operated extension ladder Set-up requires tools Operating height (max.
Description
Rung-rope slide made of aluminum stable rectangular pipe-posts fluted square sprouts on both sides 30 x 30 mm 4-way crimped rung-/spar connection comfortable height adjustment from rung to rung thanks to rope pull with plastic rope and automatically acting fall hook upper conductor with wall rolling rollers corrosion-resistant guide fittings with sliding guides rung distance: 280 mm conductor width: 470 mm (without cross rail) available with and without cross rail Note: According to the standard, the slide-on part is not separable from the conductor in lengths over 3.0 m maximum load: 150 kg
This text is machine translated.
This text is machine translated.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
