MUNK Günzburger Steigtechnik 301303 Aluminium Fuel truck ladder Set-up requires tools Operating height (max.): 5.4 cm 39
EAN:
Part number:
Item no:
Technical specifications
- Tank wagon ladder design: Type 1
- Holm height Support part: 25 mm
- Swivel castors with locking device Ø 150 mm: 4
- Platform height max.: 4.3 m
- Platform height min.: 2.97 m
- Platform length: 1.08 m
- Spar height / step height: 30 mm
- Product type
Fuel truck ladder
- Working height range
5.1 cm - 6 cm
- Material
Aluminium
- Maximum height
4.3 m
- Length
3.16 m
- Step depth
30 mm
- Weight
390 kg
- Operating height (max.)
5.4 cm
- External width
2000 mm
- Design type
Free standing
- Features
Set-up requires tools
- Platform width
0.85 m
- Width
2000 mm
- Height
5.4 m
- Depth
3160 mm
- Steps
280 mm
- Load capacity (max.)
150 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2271962 MUNK Günzburger Steigtechnik 301303 Aluminium Fuel truck ladder Set-up requires tools Operating height (max.): 5.4 cm 39
Description

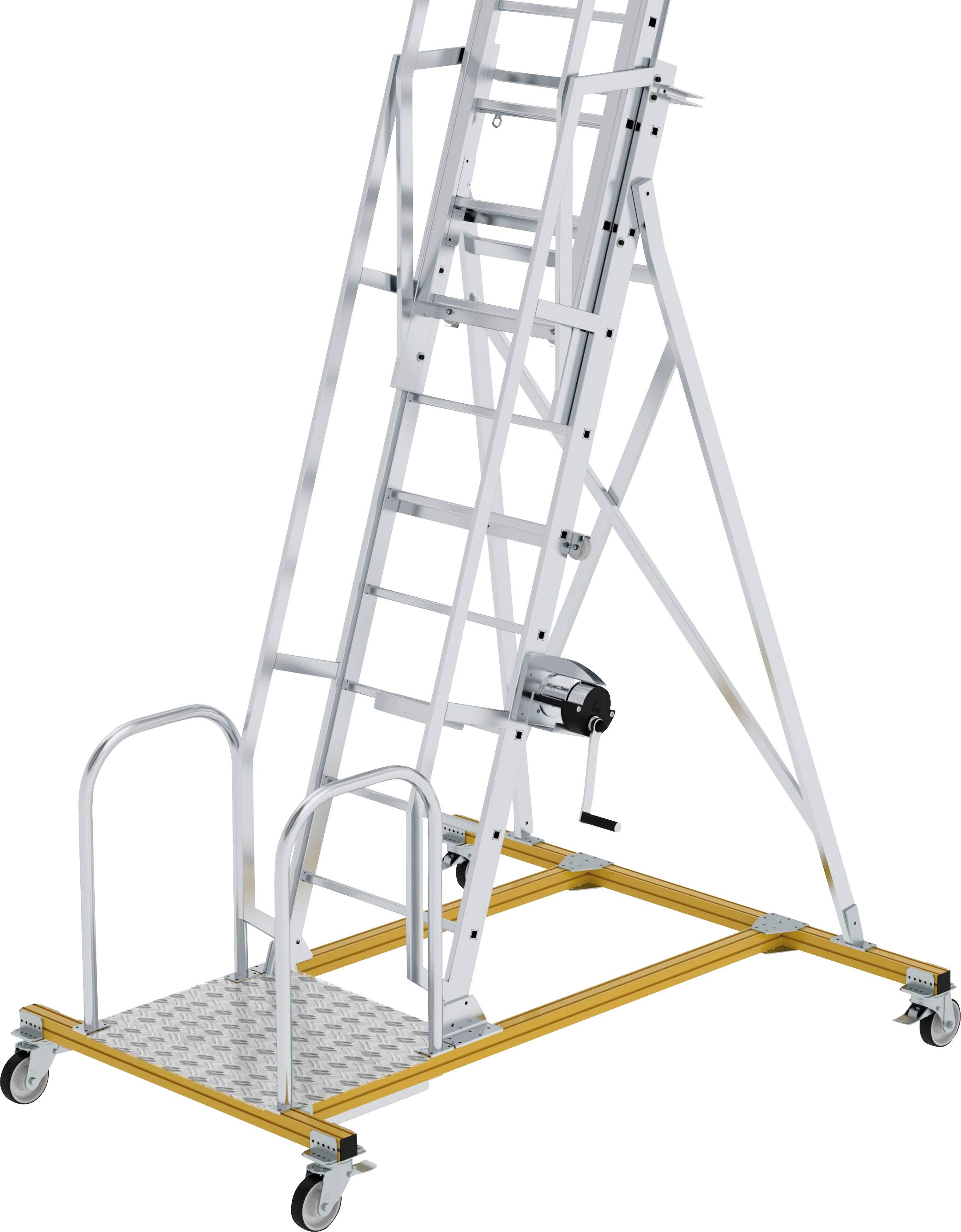

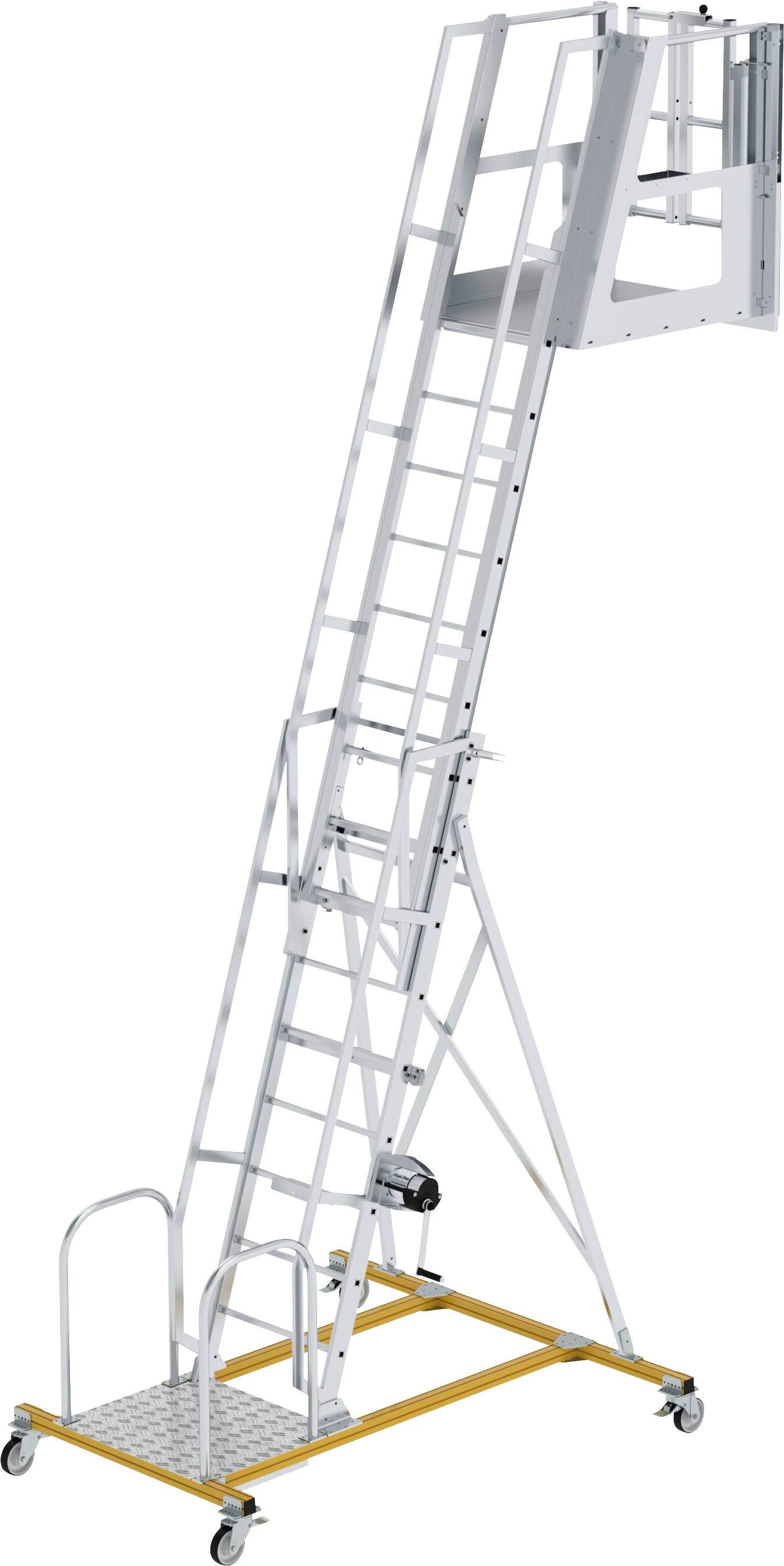

2-part tank wagon ladder made of aluminum with platform and protective basket (mandatory element, must be ordered separately) Stable rectangular tube-Holms ridged square sprouts on both sides 30 x 30 mm 4-way bricked rung / spar connection Guide and connecting parts in stainless steel Simple height adjustment from rung to rung thanks to rope winch and locking Platform with grating covering R 13 double-sided railing with foot and knee-bar Platform front side with 2-part safety door and protective basket (freely selectable, Must be ordered separately) Landing gear partially powder coated in RAL 1021 and available in three versions (see below) Distance between rungs: 280 mm Delivery time 15 days Note: The tank wagon manager serves exclusively as an access point for operating and inspection work during loading and unloading
