Name: MUNK Günzburger Steigtechnik 301304 Aluminium Fuel truck ladder Set-up requires tools Operating height (max.): 5.4 cm 39
Brand: MUNK Günzburger Steigtechnik
SKU: 2271827

Metal mobile step ladder with platform, fitted with wheels for movement and side handrails for safety, vertically positioned.

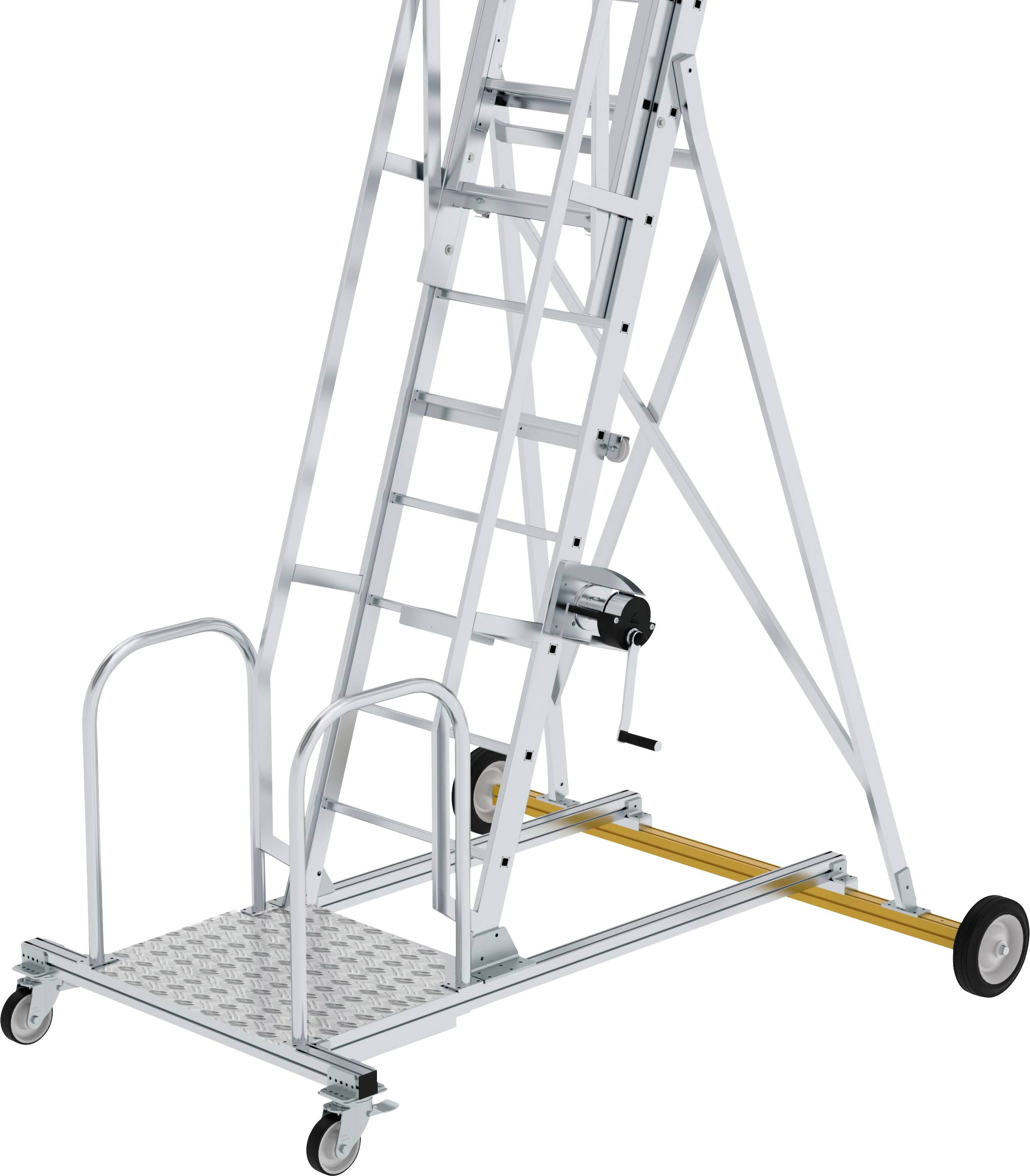

Portable silver ladder on a mobile frame with a platform and hand-operated crank, suitable for industrial purposes.

1/2

Image similar

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Tank wagon ladder design: Type 2
Holm height Support part: 25 mm
Castors Ø 280 mm: 2
Castors with locking device Ø 150 mm: 2
Platform height max.: 4.3 m
Platform height min.: 2.97 m
Platform length: 1.08 m
Spar height / step height: 30 mm

Product type: Fuel truck ladder

Working height range: 5.1 cm - 6 cm

Material: Aluminium

Maximum height: 4.3 m

Length: 3.16 m

Step depth: 30 mm

Weight: 390 kg

Operating height (max.): 5.4 cm

External width: 2040 mm

Features: Set-up requires tools

Platform width: 0.85 m

Width: 2040 mm

Height: 5.4 m

Depth: 3160 mm

Steps: 280 mm

Load capacity (max.): 150 kg

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2271827 MUNK Günzburger Steigtechnik 301304 Aluminium Fuel truck ladder Set-up requires tools Operating height (max.): 5.4 cm 39

Description

2-part tank wagon ladder made of aluminum with platform and protective basket (mandatory element, must be ordered separately) Stable rectangular tube-Holms ridged square sprouts on both sides 30 x 30 mm 4-way bricked rung / spar connection Guide and connecting parts in stainless steel Simple height adjustment from rung to rung thanks to rope winch and locking Platform with grating covering R 13 double-sided railing with foot and knee-bar Platform front side with 2-part safety door and protective basket (freely selectable, Must be ordered separately) Landing gear partially powder coated in RAL 1021 and available in three versions (see below) Distance between rungs: 280 mm Delivery time 15 days Note: The tank wagon manager serves exclusively as an access point for operating and inspection work during loading and unloading

This text is machine translated.
