Name: MUNK Günzburger Steigtechnik 301305 Aluminium Fuel truck ladder Set-up requires tools Operating height (max.): 5.375 cm
Brand: MUNK Günzburger Steigtechnik
SKU: 2271963

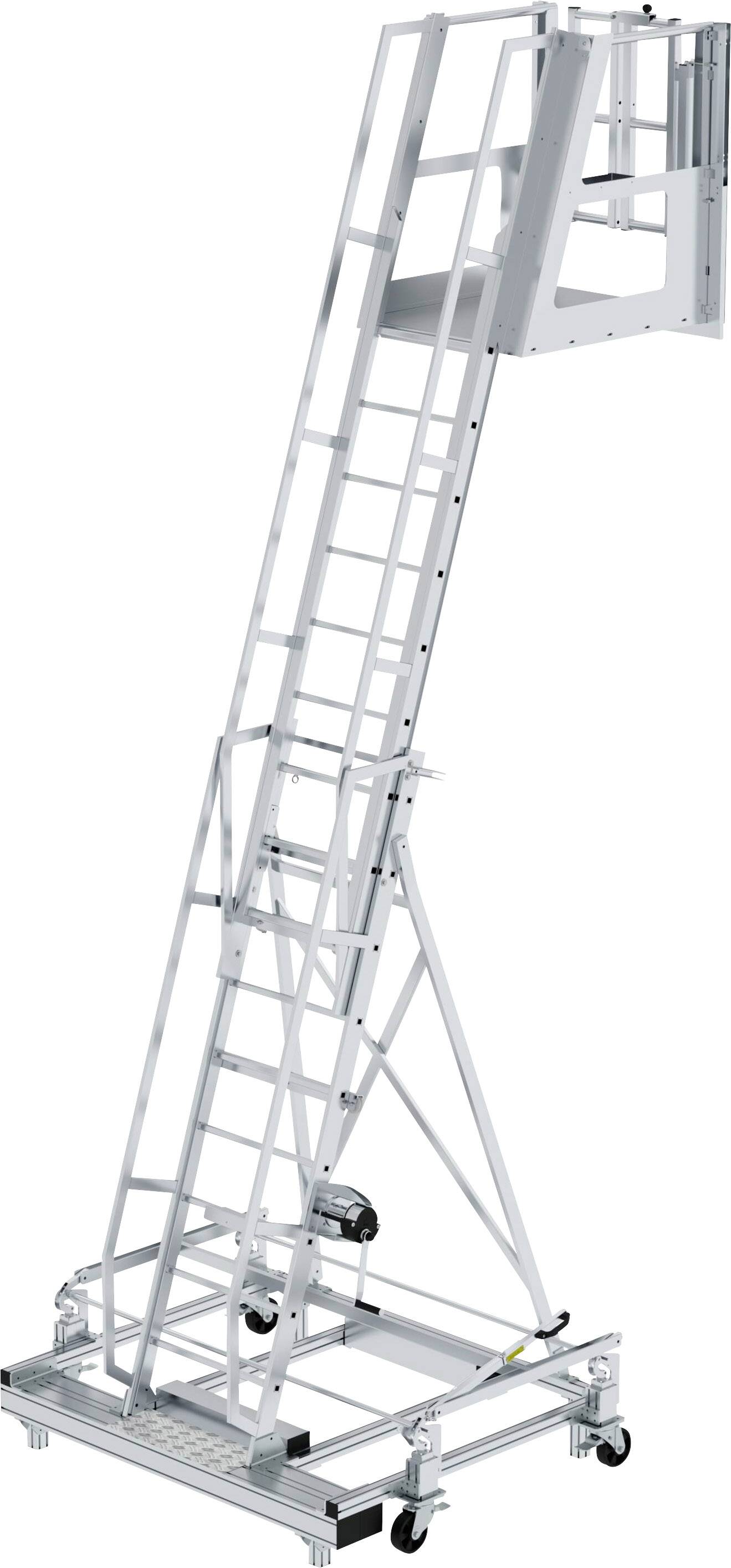

A mobile aluminium ladder with a platform, supported on a wheeled frame. It is likely used for working at height.

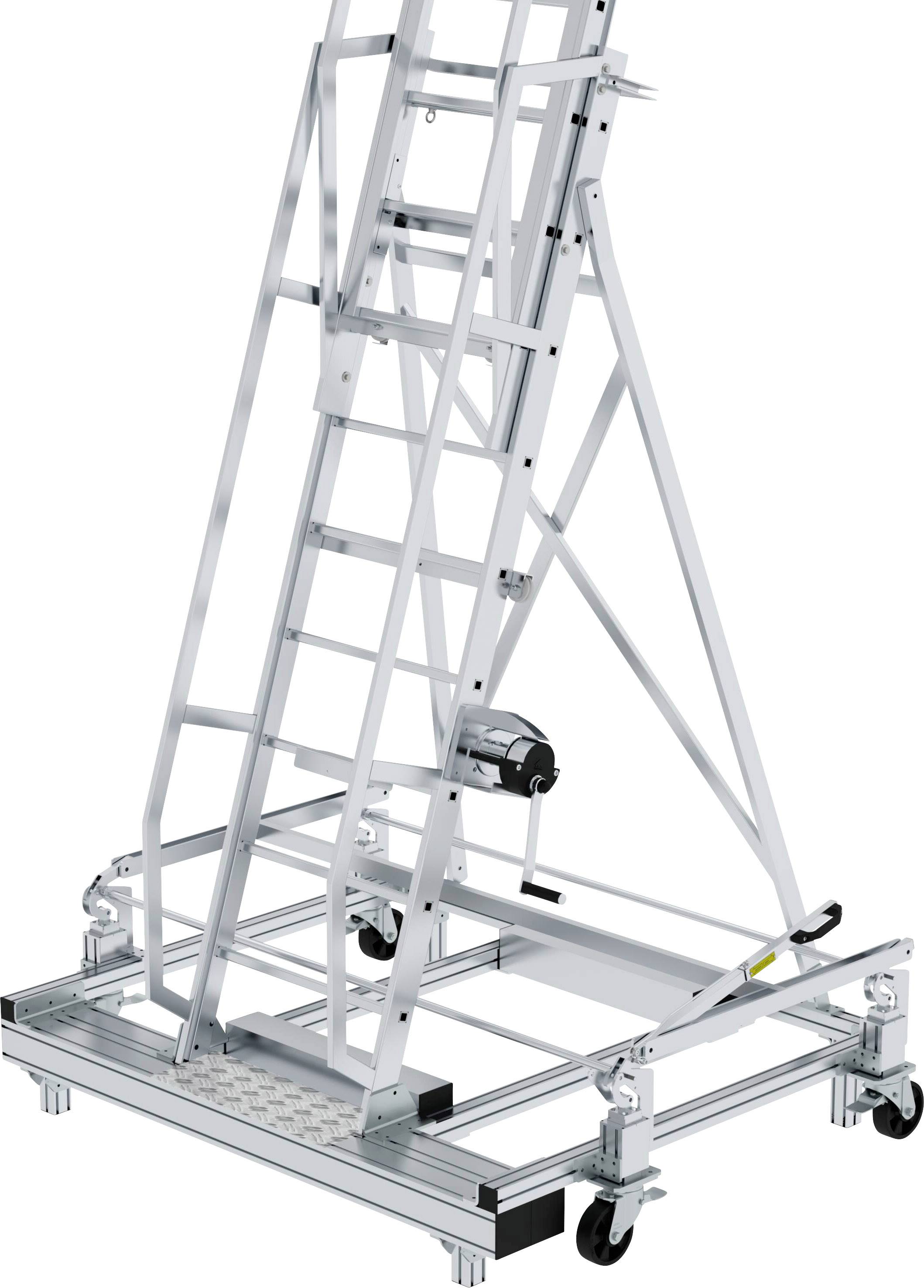

A mobile aluminium ladder on a movable frame with fixed castors. The platform provides stability and flexibility for access at height.

1/2

Image similar

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Tank wagon ladder design: Type 8
Holm height Support part: 25 mm
Swivel castors with locking device Ø 150 mm: 4
Platform height max.: 4.3 m
Platform height min.: 2.97 m
Platform length: 1.08 m
Spar height / step height: 30 mm

Product type: Fuel truck ladder

Working height range: 5.1 cm - 6 cm

Material: Aluminium

Maximum height: 4.3 m

Length: 2.5 m

Step depth: 30 mm

Weight: 510 kg

Operating height (max.): 5.375 cm

External width: 2050 mm

Design type: Free standing

Features: Set-up requires tools

Platform width: 0.85 m

Width: 2050 mm

Height: 5.38 m

Depth: 2500 mm

Steps: 280 mm

Load capacity (max.): 150 kg

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2271963 MUNK Günzburger Steigtechnik 301305 Aluminium Fuel truck ladder Set-up requires tools Operating height (max.): 5.375 cm

Description

2-part tank wagon ladder made of aluminum with platform and protective basket (mandatory element, must be ordered separately) Stable rectangular tube-Holms ridged square sprouts on both sides 30 x 30 mm 4-way bricked rung / spar connection Guide and connecting parts in stainless steel Simple height adjustment from rung to rung thanks to rope winch and locking Platform with grating covering R 13 double-sided railing with foot and knee-bar Platform front side with 2-part safety door and protective basket (freely selectable, Must be ordered separately) Landing gear partially powder coated in RAL 1021 and available in three versions (see below) Distance between rungs: 280 mm Delivery time 15 days Note: The tank wagon manager serves exclusively as an access point for operating and inspection work during loading and unloading
