MUNK Günzburger Steigtechnik 30400 Aluminium Support trestle height-adjustable 250 kg (W x H x D) 500 x 1000 x 780 mm 7
EAN:
Part number:
Item no:
Technical specifications
- Dim
(W x H x D) 500 x 1000 x 780 mm
- Product type
Support trestle
- Load capacity (max.)
250 kg
- Material
Aluminium
- Trestle features
height-adjustable
- Weight
7 kg
- Max. height
1000 mm
- Height (min.)
700 mm
- Width
500 mm
- Height
1000 mm
- Depth
780 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1314484 MUNK Günzburger Steigtechnik 30400 Aluminium Support trestle height-adjustable 250 kg (W x H x D) 500 x 1000 x 780 mm 7
Description

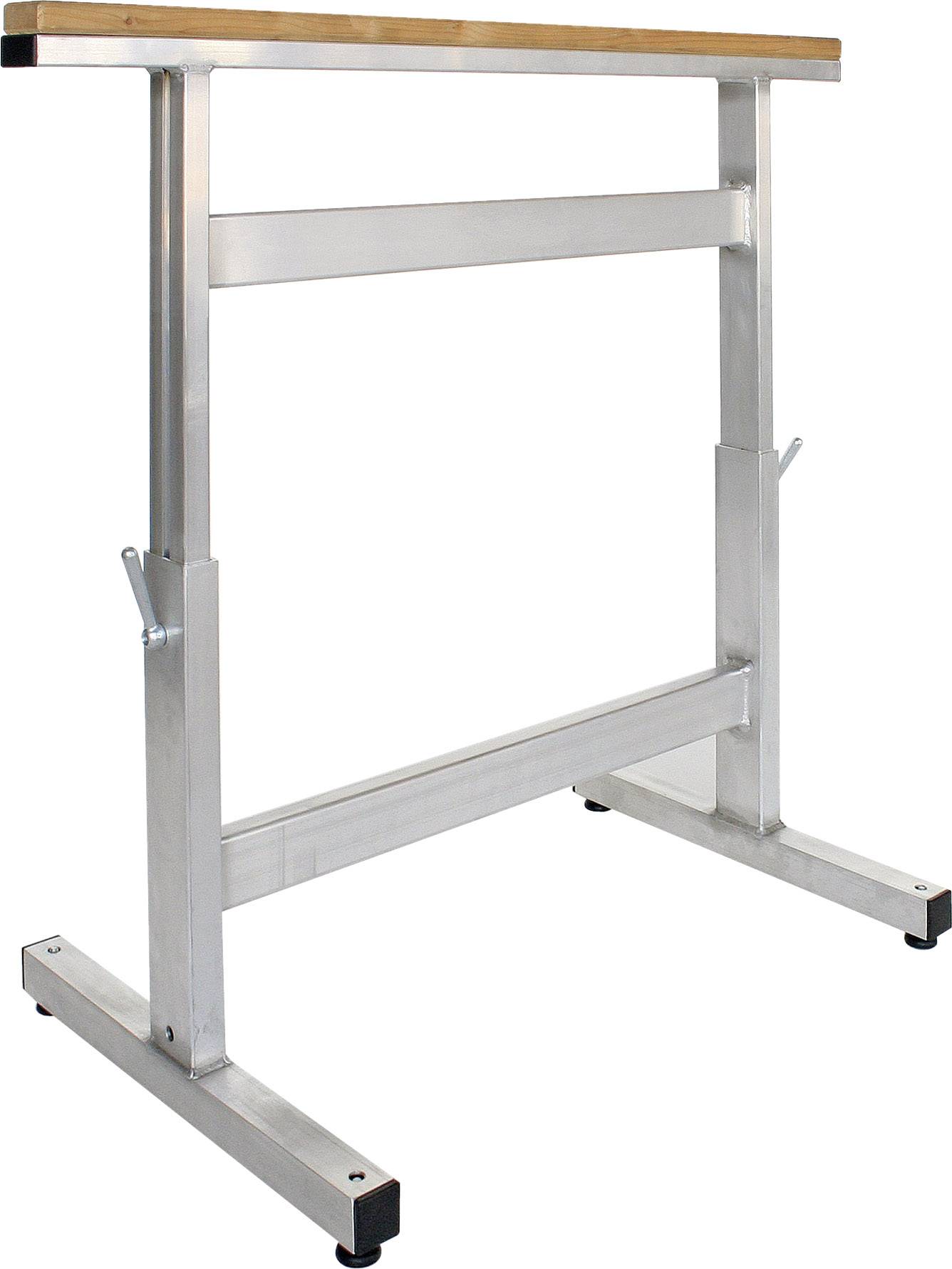

Sturdy aluminum construction, continuously variable height of approx. 700 to 1000 mm. Secure locking cone handle on each adjustment tube, cross bracing on both parts. Feet with adjusting screw for the level compensation, replaceable wear pad 1000 x 60 x 25 mm made of spruce wood. All Spar ends closed. Load: max. 250 kg
