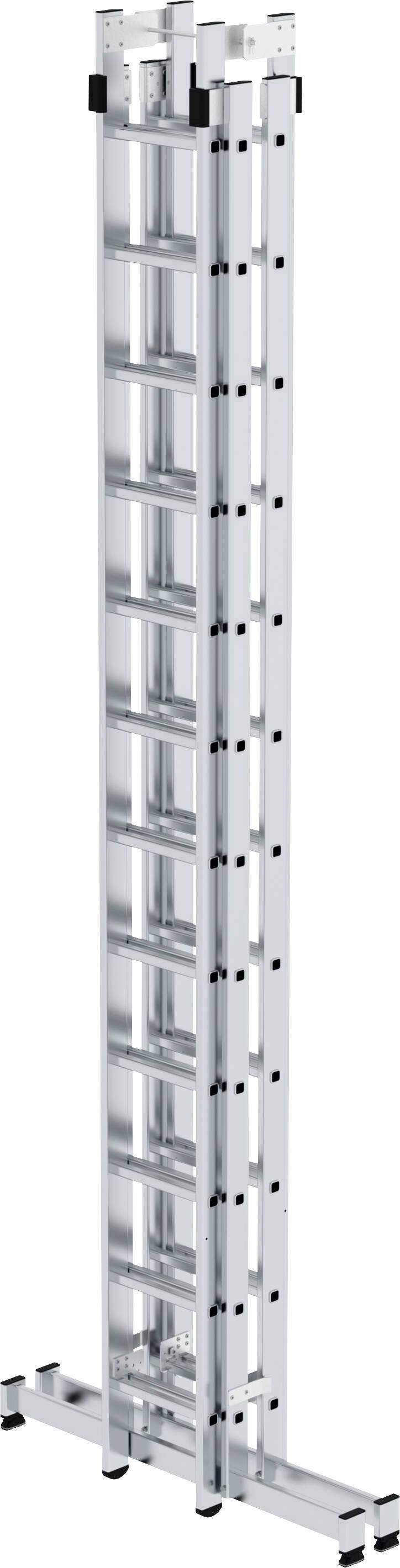

MUNK Günzburger Steigtechnik 33048 Aluminium Step ladder Operating height (max.): 7 m
EAN:
Part number:
Item no:
Technical specifications
- External proof of inspection: 2228711KAU-029: 2017-10-19
- Length extended: 5.85 m.
- Length retracted: 3.62 m.
- Step length: 3.33 m.
- Traverse width 1.2 m.
- Product type
Step ladder
- Working height range
6.1 m - 7 m
- Material
Aluminium
- No. of rungs/steps
48
- Operating height (max.)
7 m
- Design type
4-part, accessible on both sides
- Steps
280 mm
- Load capacity (max.)
150 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2271872 MUNK Günzburger Steigtechnik 33048 Aluminium Step ladder Operating height (max.): 7 m
Certificate
Certificate 2271872 MUNK Günzburger Steigtechnik 33048 Aluminium Step ladder Operating height (max.): 7 m
Description
Stainless steel ladder made of aluminum stable rectangular tube-beams square sprouts fluted on both sides 30 x 30 mm 4-way crimped rung/spar height connection adjustable from rung to rung with few hand grips nivello® crossbars in optimum width to the selected product for an extra safe stand and rise (on both sides, loose attached) Plastic end caps on the upper end of the spar with two high-strength perlongites, rung distance: 280 mm, conductor width: 420 mm (without cross rail), maximum load: 150 kg
