Name: MUNK Günzburger Steigtechnik 33310 Aluminium Multi-purpose ladder Set-up requires tools Operating height (max.): 8 m 25
Brand: MUNK Günzburger Steigtechnik
SKU: 2271873

A person is climbing a tall ladder to install a security camera on the wall of a building.

'A person is standing on a ladder in a workshop, working on a shelf. A blue door and glass cabin are in the background. Safety is crucial.'

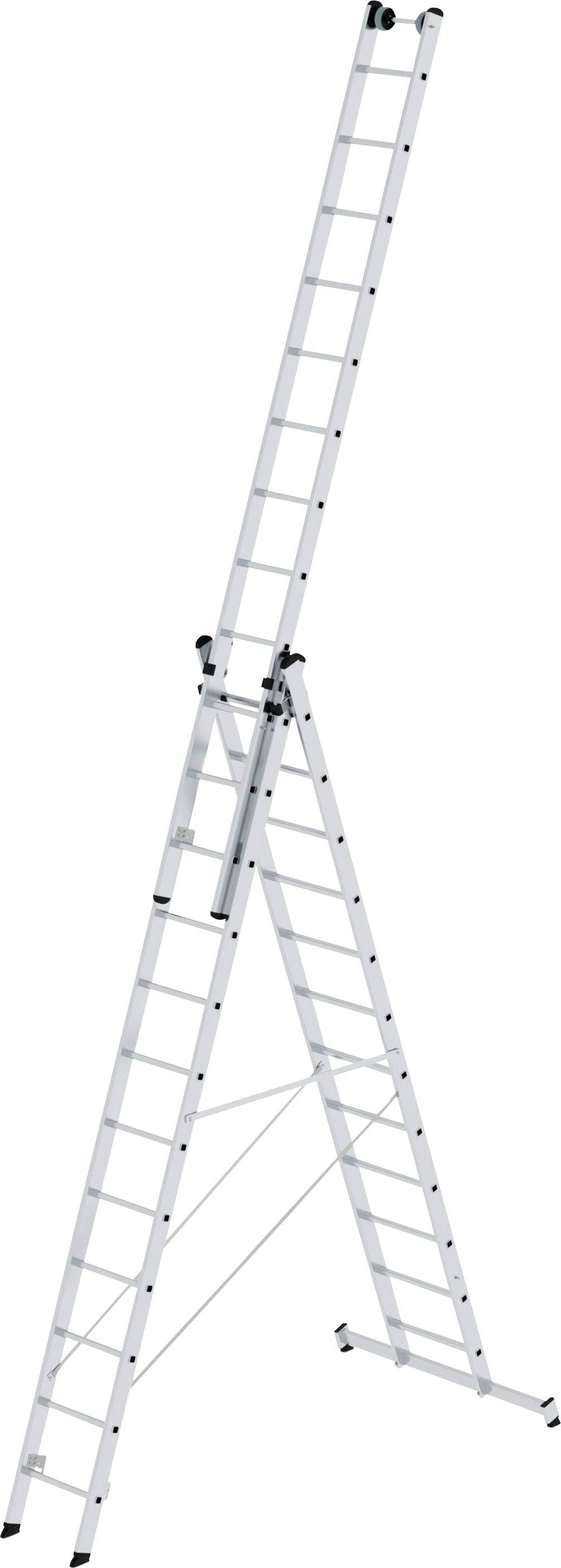

A long, silver telescopic ladder, extended to its maximum height, against a white background.

1/3

Image similar

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

External test certificate: 2228711KAU-023: 2018-01-29
2-piece conductor length as an ladder: 5.02 m
2-piece conductor length as a ladder with attachment part: 5.02 m
3-piece conductor length as an ladder: 6.98 m
Step length: 2.08 m
Traverer width: 1.2 m.

Product type: Multi-purpose ladder

Working height range: 7.1 m - 8 m

Material: Aluminium

No. of rungs/steps: 30

Weight: 25 kg

Operating height (max.): 8 m

Design type: Flexible, 3-part

Features: Set-up requires tools

Width: 49 cm

Steps: 280 mm

Load capacity (max.): 150 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2271873 MUNK Günzburger Steigtechnik 33310 Aluminium Multi-purpose ladder Set-up requires tools Operating height (max.): 8 m 25

Certificate

Certificate 2271873 MUNK Günzburger Steigtechnik 33310 Aluminium Multi-purpose ladder Set-up requires tools Operating height (max.): 8 m 25

Description

Sprouts multi-purpose ladder made of aluminum stable square pipe beams square sprouts fluted on both sides 30 x 30 mm 4-way crimped wire / spar connection applicable as standing and sliding conductor stair steers at conductor length up to 3.0 m simple height adjustment thanks to plug hooks with automatically locking lifting protection upper conductor with wall rollers nivello® conductor shoes and nivello® cross rail (enclosed) Spread protection with two high-strength perlongurtes and detachable metal brace Srung distance: 280 mm Conductor width: 490 mm (without cross rail) Maximum load: 150 kg

This text is machine translated.
