MUNK Günzburger Steigtechnik 35510 Plastic Extension ladder Operating height (max.): 6.1 m Red, Silver 17.4 kg
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Extension ladder
- Working height range
6.1 m - 7 m
- Material
Plastic
- Factory colour
Red
Silver
- Length
3.05 m
- No. of rungs/steps
10
- Weight
17.4 kg
- Operating height (max.)
6.1 m
- Material (details)
Plastic
- Type
Leaning ladder
Rope hoist ladder
Push ladder
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1314612 MUNK Günzburger Steigtechnik 35510 Plastic Extension ladder Operating height (max.): 6.1 m Red, Silver 17.4 kg
User & Safety Instructions
User & Safety Instructions 1314612 MUNK Günzburger Steigtechnik 35510 Plastic Extension ladder Operating height (max.): 6.1 m Red, Silver 17.4 kg
Description
Tested according to DIN EN 131. In accordance with section 6.5.1 of EN 61478:2002 + A1:2004 category 1 up to 1000 volts tested. Stable metal guide fittings, beams made of GFK-profile, rungs made of aluminum, non-slip nivello ®-conductor shoes.

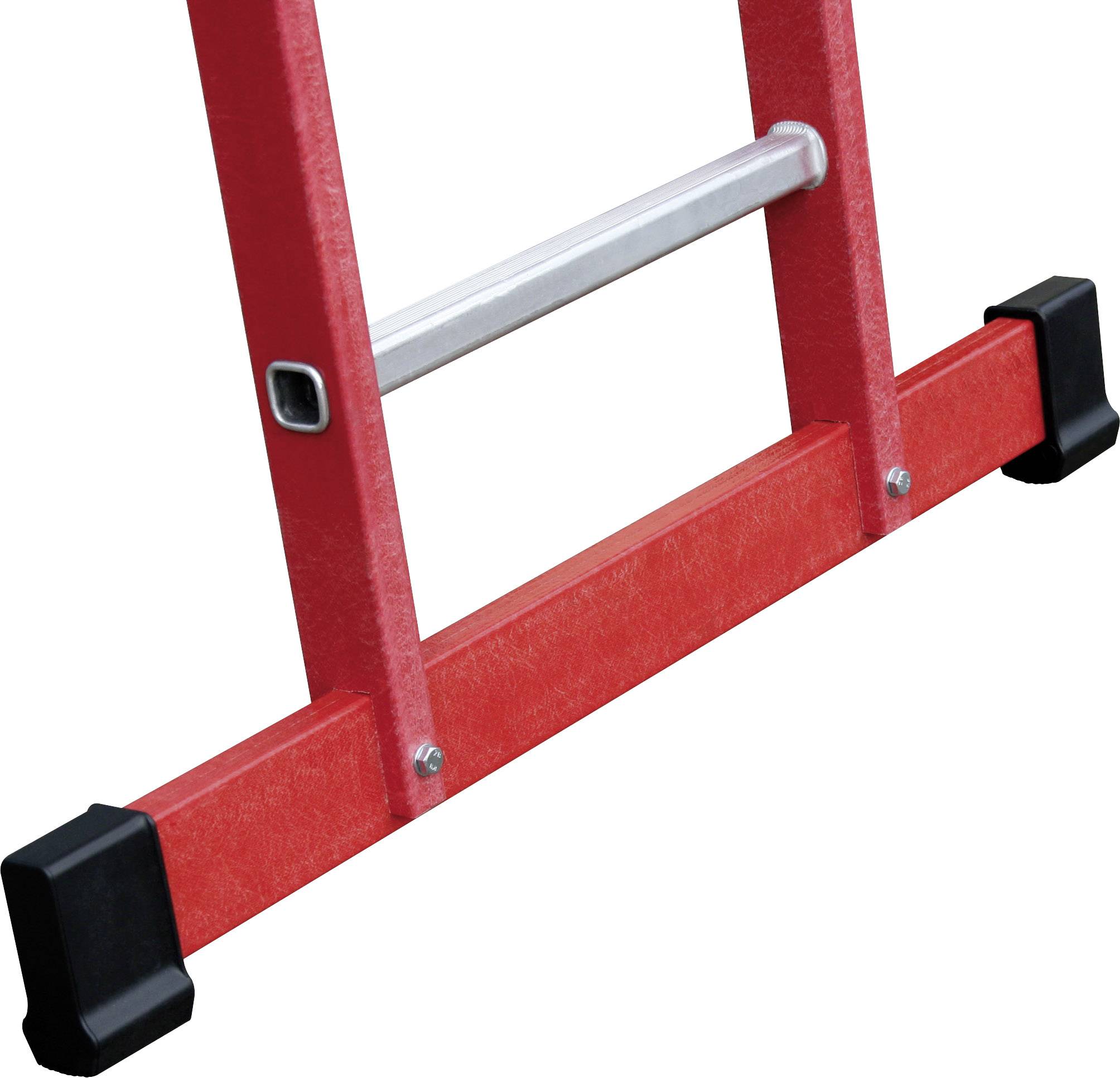

Rungs distance 280 mm, outer width of 420 mm. Min. 10 years of resistance to aging of GFK-profiles. In addition, with 1.10 m wide-beam, both ends with conductor shoes for stability and high work safety. The traverse is loose and is two-fold at the bottom of the holmende screwed. Adjustment from rung to rung by hand, both conductor parts can be used separately.
This text is machine translated.
Rungs distance 280 mm, outer width of 420 mm. Min. 10 years of resistance to aging of GFK-profiles. In addition, with 1.10 m wide-beam, both ends with conductor shoes for stability and high work safety. The traverse is loose and is two-fold at the bottom of the holmende screwed. Adjustment from rung to rung by hand, both conductor parts can be used separately.
This text is machine translated.
