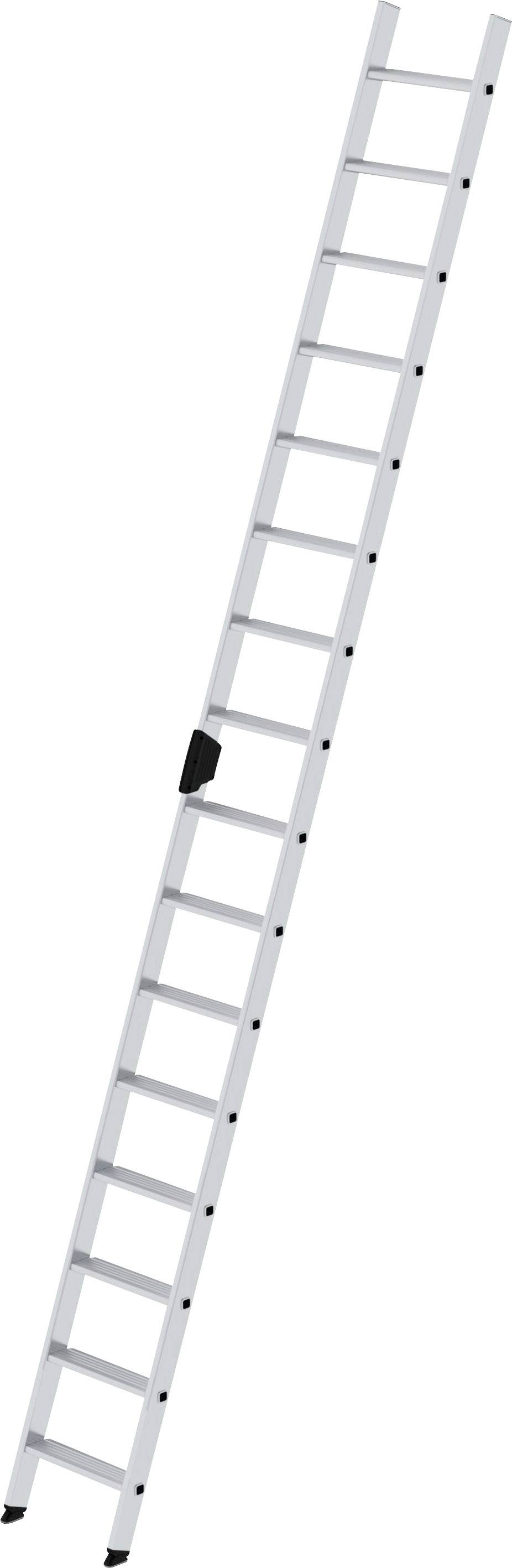

MUNK Günzburger Steigtechnik 40316 Aluminium Ladder Operating height (max.): 5.3 m
EAN:
Part number:
Item no:
Technical specifications
- External proof of inspection: 2228711KAU-002c: 2017-11-22
- Product type
Ladder
- Working height range
5.1 m - 6 m
- Material
Aluminium
- Length
4.15 m
- No. of rungs/steps
16
- Step depth
80 mm
- Operating height (max.)
5.3 m
- Nosing
1430 mm
- Design type
To lean on
- Steps
235 mm
- Load capacity (max.)
150 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2270808 MUNK Günzburger Steigtechnik 40316 Aluminium Ladder Operating height (max.): 5.3 m
Description

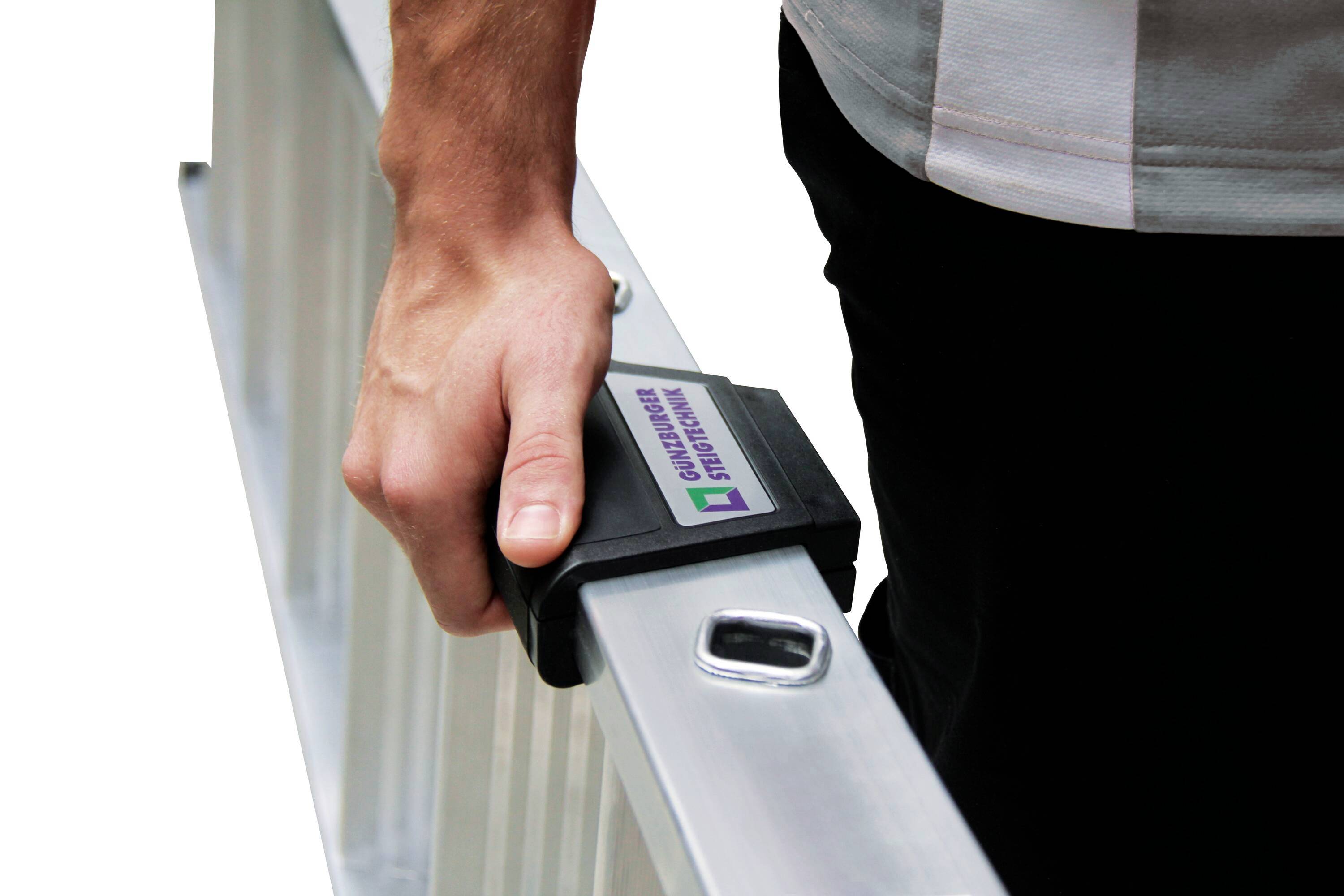

Step-ladder made of aluminum stable rectangular-pipe-beams 80 mm deep, corrugated steps 4-way crimped step-bar connection ergo-pad® grip zone step distance: 235 mm conductor width: 420 mm (without cross rail) conductor inclination: 70° nivello®-conductor shoes with patented 2-axis inclination technology Note: Landing strips above 3.0 m may only be used without a cross beam if they are used exclusively for their intended purpose (e.g. permanently installed, fitted with hooks, fastened with belt) Maximum load: 150 kg
