MUNK Günzburger Steigtechnik 40614 Aluminium Ladder Set-up requires tools Operating height (max.): 4.8 m DIN EN 131 10.5
EAN:
Part number:
Item no:
Technical specifications
- External test certificate: 2228711KAU-002c: 2017-11-22
- Traverer width: 0.93 m.
- Product type
Ladder
- Working height range
4.1 m - 5 m
- Material
Aluminium
- Length
3.64 m
- No. of rungs/steps
14
- Step depth
80 mm
- Weight
10.5 kg
- Operating height (max.)
4.8 m
- Nosing
1260 mm
- External width
420 mm
- Design type
To lean on
- Features
Set-up requires tools
- Standards
DIN EN 131
- Steps
235 mm
- Load capacity (max.)
150 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2272044 MUNK Günzburger Steigtechnik 40614 Aluminium Ladder Set-up requires tools Operating height (max.): 4.8 m DIN EN 131 10.5
Certificate
Certificate 2272044 MUNK Günzburger Steigtechnik 40614 Aluminium Ladder Set-up requires tools Operating height (max.): 4.8 m DIN EN 131 10.5
Description

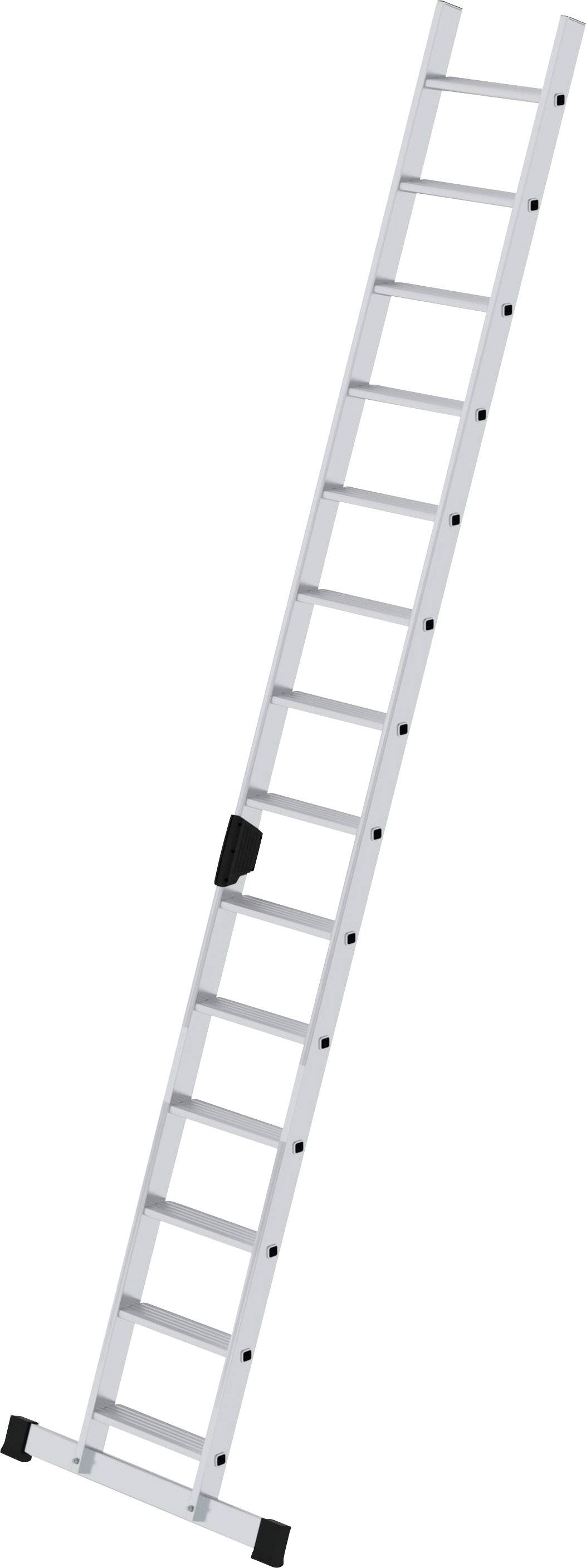

Step ladder made of aluminum stable rectangular tube beams 80 mm deep, corrugated steps 4-way crimped step/bar connection ergo-pad® grip zone step distance: 235 mm conductor width: 420 mm (without cross rail) conductor inclination: 20° standard cross rail with slip-proof shoes in optimum width to the selected product for a safe stand and rise in ladder ladders above 3.0 m. The cross rail is supplied loose and is bolted twice to the lower end of the beam Maximum load: 150 kg
