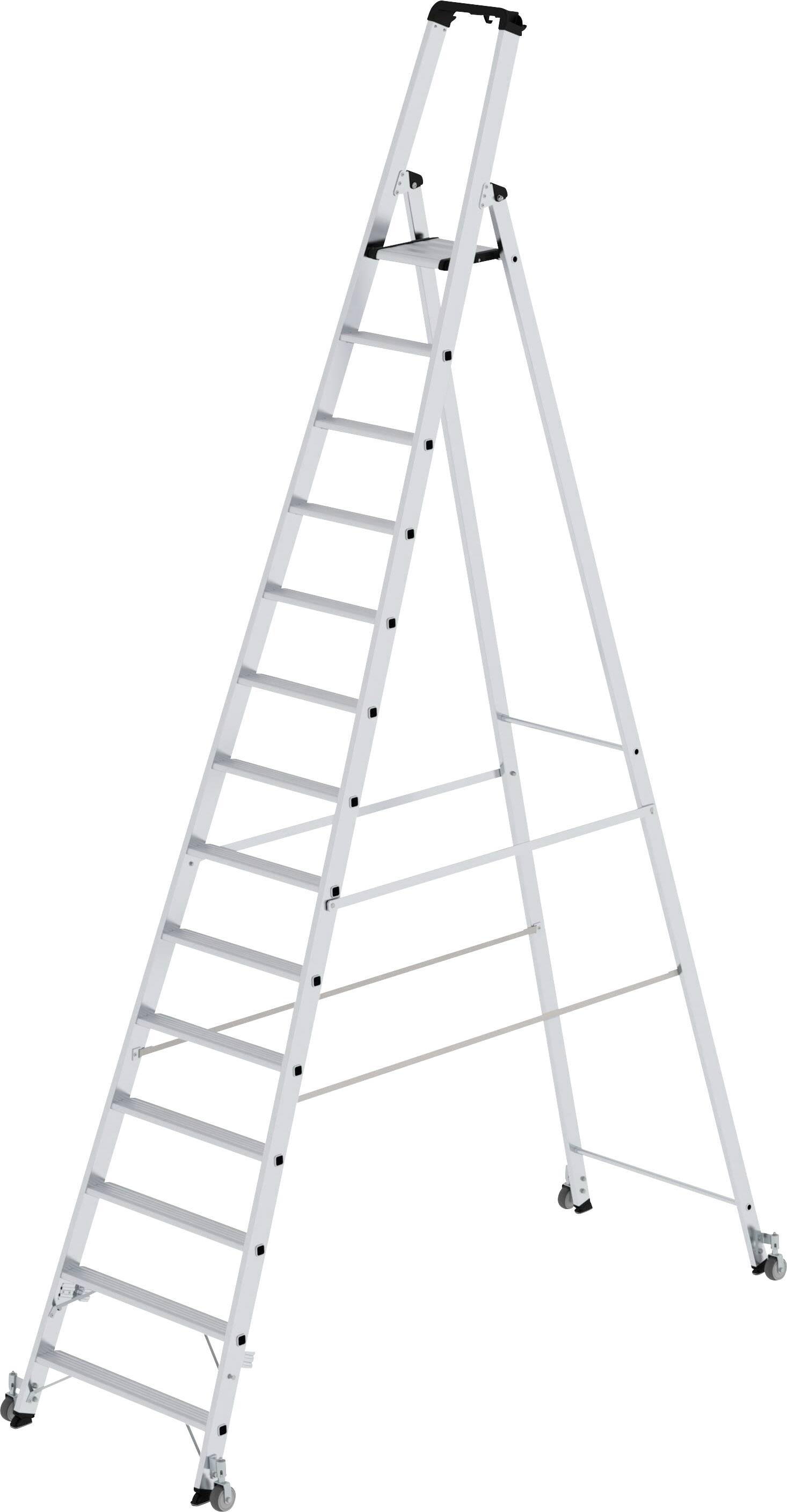

MUNK Günzburger Steigtechnik 41114 Aluminium Step ladder Operating height (max.): 5.5 m
EAN:
Part number:
Item no:
Technical specifications
- External test certificate: 2228711KAU-005a: 2017-11-23
- Holm height support part: 58 mm
- Platform height: 3.28 m
- Step length: 2.4 m
- Stages incl. platform/deck board: Yes
- Lower outer width: 0.95 m
- Product type
Step ladder
- Working height range
5.1 m - 6 m
- Material
Aluminium
- No. of rungs/steps
14
- Step depth
80 mm
- Operating height (max.)
5.5 m
- Design type
Free-standing, single-sided walk-in, with castors
- Height
3.95 m
- Barrel diameter
80 mm
- Steps
235 mm
- Load capacity (max.)
150 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2271878 MUNK Günzburger Steigtechnik 41114 Aluminium Step ladder Operating height (max.): 5.5 m
Certificate
Certificate 2271878 MUNK Günzburger Steigtechnik 41114 Aluminium Step ladder Operating height (max.): 5.5 m
Description
Step-up ladder made of aluminum stable rectangular tube-beams 80 mm deep, fluted steps and large platform 4-way crimped step / spar connection conical holding guide for secure stand four self-locking spring rollers (Ø 80 mm) rigid connection by metal struts of seven stages that can be detached on both sides: Spread protection with two high-strength Perlongurten conductor joint 'safe-cap' nivello® conductor shoes with patented 2-axis inclination technology practical storage tray with integrated hooks and tool holders Step distance: 235 mm conductor inclination: 70° maximum load: 150 kg
