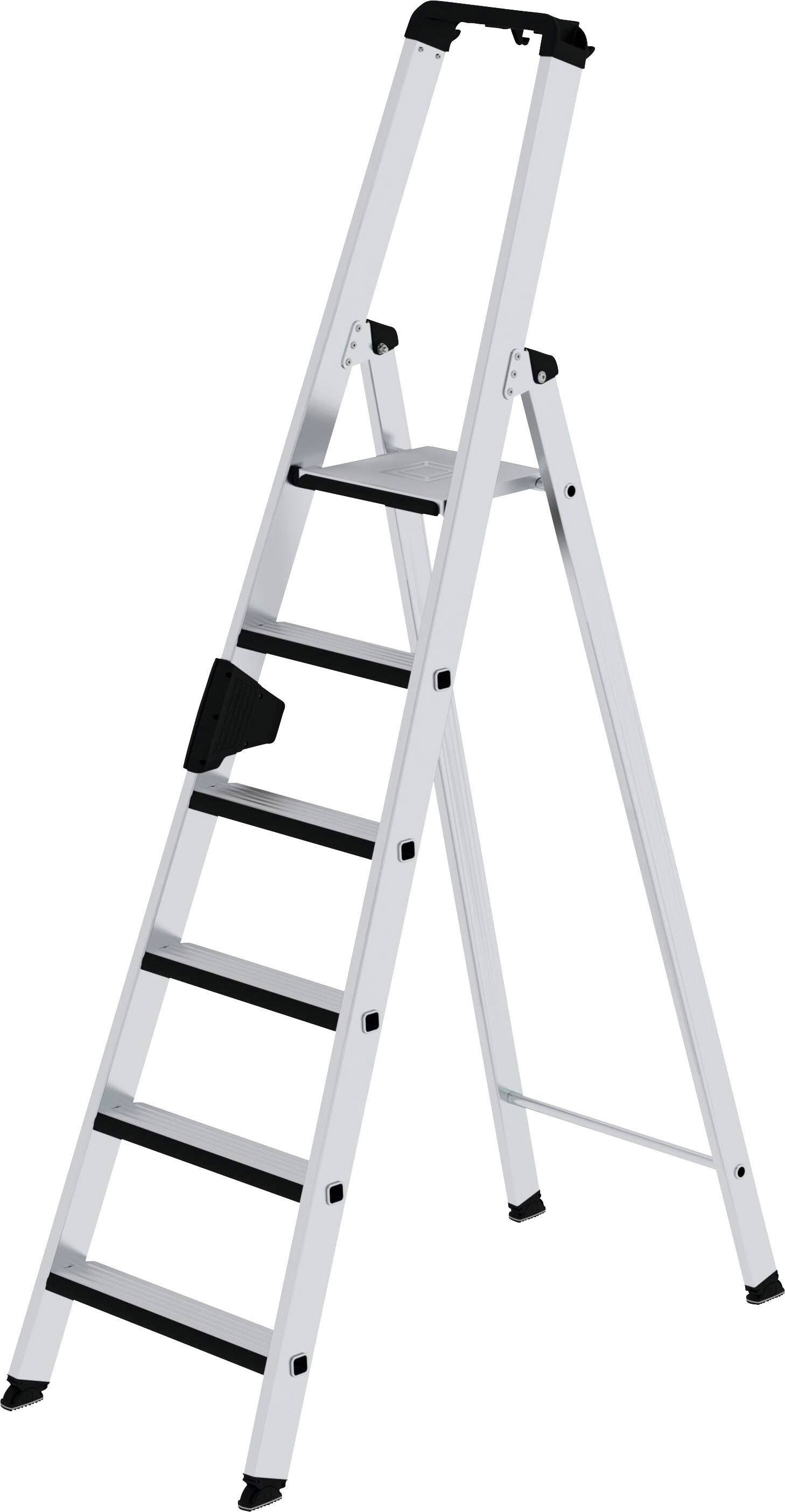

MUNK Günzburger Steigtechnik 42106 Aluminium Step ladder Operating height (max.): 3.5 m 9700
EAN:
Part number:
Item no:
Technical specifications
- External test certificate: 2228711KAU-005a: 2017-11-23
- Holm height support part: 58 mm
- Platform height: 1.4 m
- Step length: 1.16 m
- Stages incl. platform/deck board: Yes
- Lower outer width: 0.55 m.
- Product type
Step ladder
- Working height range
3.1 m - 4 m
- Material
Aluminium
- No. of rungs/steps
6
- Step depth
80 mm
- Weight
9700
- Operating height (max.)
3.5 m
- Design type
Free-standing, accessible on one side
- Height
2.07 m
- Steps
235 mm
- Load capacity (max.)
150 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2271249 MUNK Günzburger Steigtechnik 42106 Aluminium Step ladder Operating height (max.): 3.5 m 9700
Certificate
Certificate 2271249 MUNK Günzburger Steigtechnik 42106 Aluminium Step ladder Operating height (max.): 3.5 m 9700
Description
Step-up ladder made of aluminum stable rectangular tube-pillars 80 mm deep, corrugated steps and large platform 4-way crimped step/spar connection conical holding guide for safe stand joint 'safe-cap' relax-step® step padding for a comfortable stand nivello® conductor shoes with patented 2-axis inclination technology practical storage tray with integrated hooks and tool holders from eight stages: Spread protection with two high-strength Perlongurten step spacing: 235 mm conductor inclination: 70° available with and without spring rollers Maximum load: 150 kg
