MUNK Günzburger Steigtechnik 50106 Aluminium Ladder stand Operating height (max.): 3.5 m Silver 45 kg
EAN:
Part number:
Item no:
Highlights & Details
Aluminum platform ladder on one side accessible

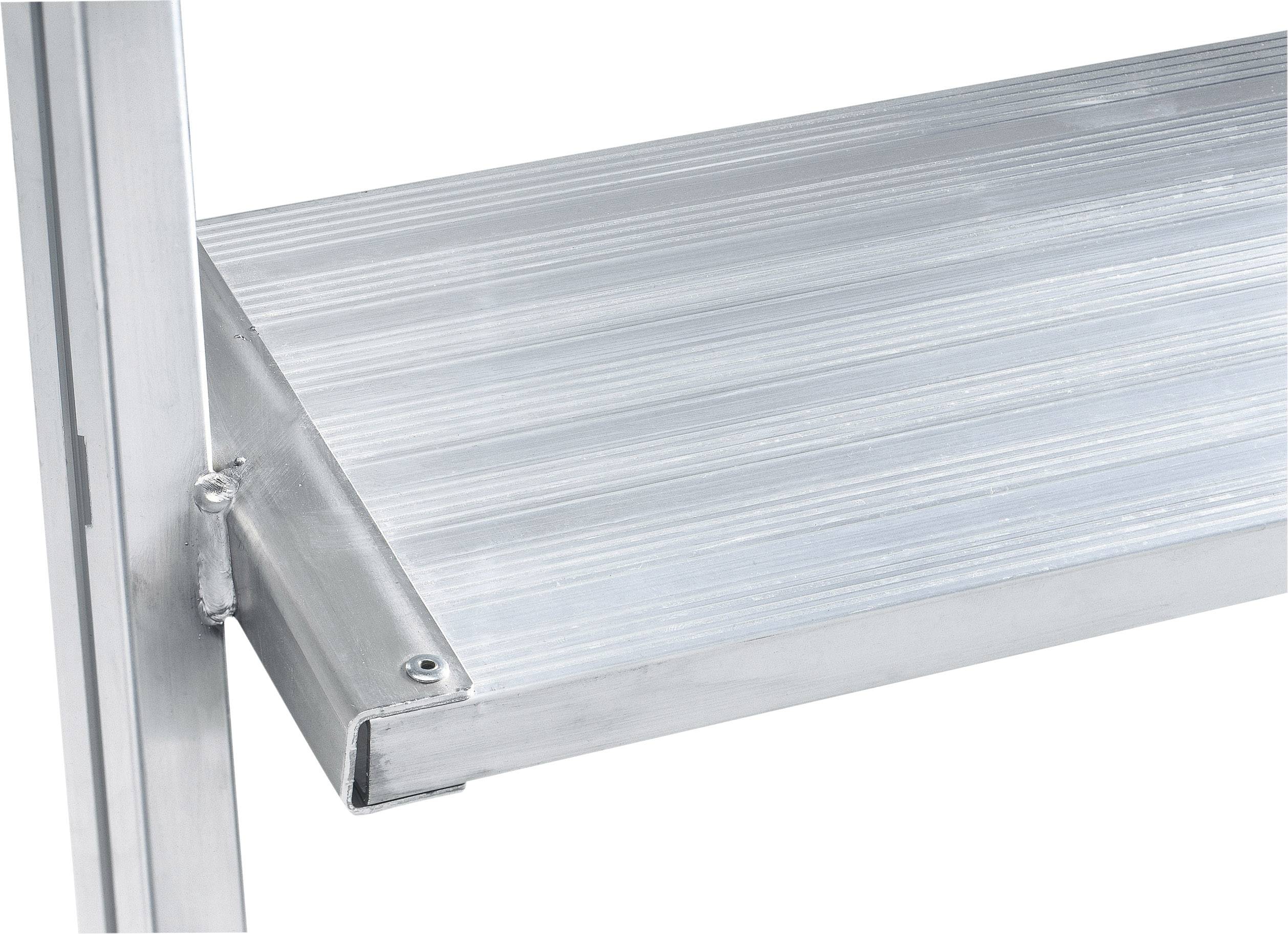

- Levels and platform design: aluminum corrugated
Technical specifications
- Product type
Ladder stand
- Working height range
3.1 m - 4 m
- Material
Aluminium
- Maximum height
1.44 m
- Factory colour
Silver
- No. of rungs/steps
6
- Weight
45 kg
- Operating height (max.)
3.5 m
- Platform width
600 mm
- Platform depth
800 mm
- Width
940 mm
- Height
2440 mm
- Depth
1750 mm
- Material (details)
Aluminium
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1314733 MUNK Günzburger Steigtechnik 50106 Aluminium Ladder stand Operating height (max.): 3.5 m Silver 45 kg
Description
Stable aluminum square tube beams, 200 mm deep stages, platform size 600 x 800 mm. Complete with three-side railing with foot-and knee-bar. 4 selbstarretierende steering wheels Ø 125 mm, 2 with locking device. Shipping takes place in components, detailed instructions are enclosed. Double-sided handrails are in accordance with DIN EN 131-7 in aufstiegen of podium conductors with climbing angle greater than or equal to 60° optional.
This text is machine translated.
This text is machine translated.
Hints
The mapped handrail, as well as the landing gear must be ordered separately, see accessories!
