MUNK Günzburger Steigtechnik 51102 Aluminium Stairs Set-up requires tools Operating height (max.): 2.48 m 32 kg
EAN:
Part number:
Item no:
Technical specifications
- Platform height: 0.48 m.
- Platform length 800 mm
- Steps including platform/deck board: Yes
- Step/platform design: Steel grating
- Product type
Stairs
- Working height range
2.1 m - 3 m
- Material
Aluminium
- Step depth
200 mm
- Dim
(W x H x D) 0.72 x 1480 x 1.07 m
- Weight
32 kg
- No. of rungs/steps
2
- Operating height (max.)
2.48 m
- Design type
Accessible on one side, with rollers
- Features
Set-up requires tools
- Platform width
600 mm
- Platform depth
0.6 mm
- Width
0.72 m
- Height
1480 mm
- Depth
1.07 m
- Load capacity (max.)
150 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2271699 MUNK Günzburger Steigtechnik 51102 Aluminium Stairs Set-up requires tools Operating height (max.): 2.48 m 32 kg
Description

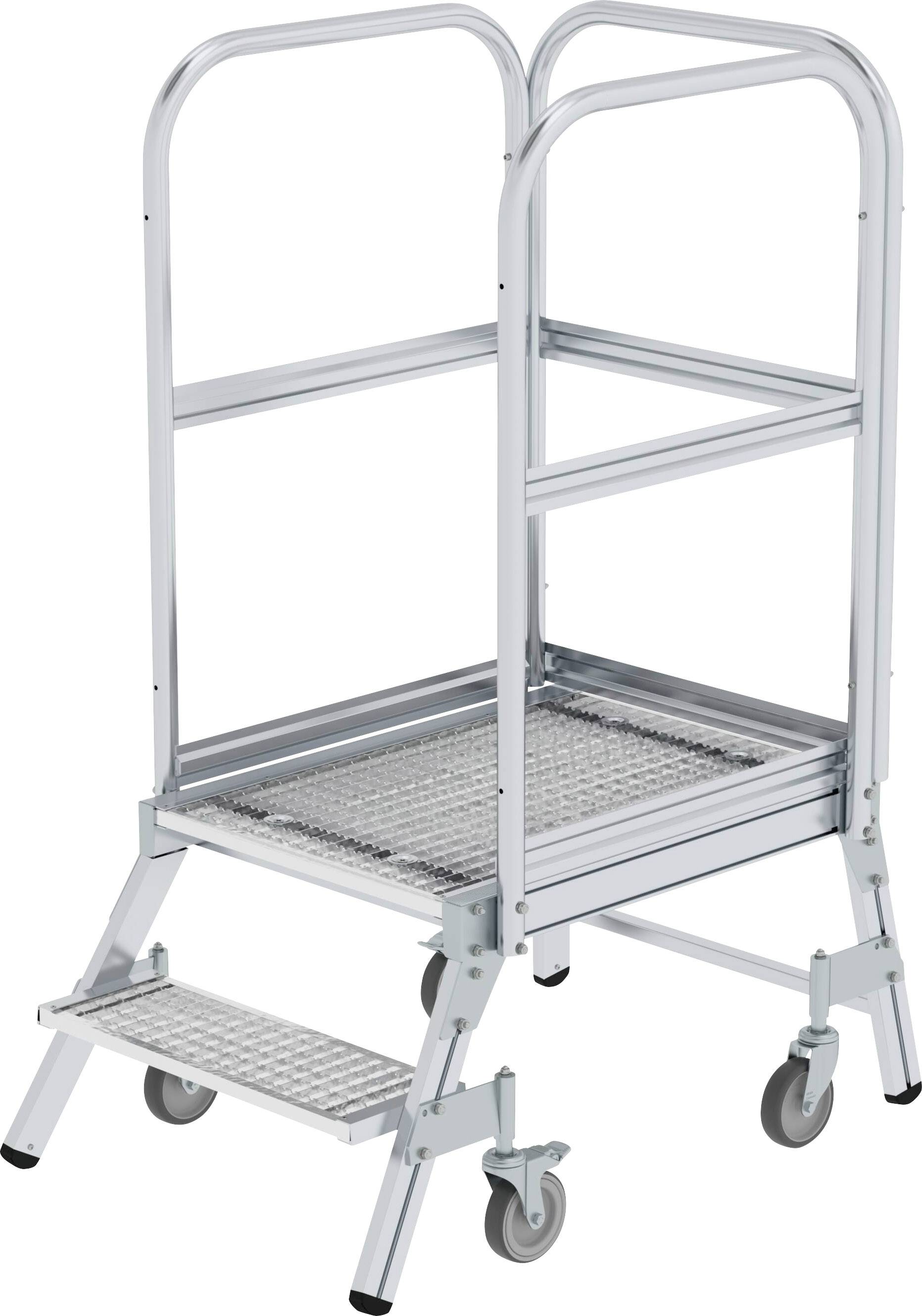

One-sided walk-in platform made of aluminum sturdy rectangular tube-beam 200 mm deep steps Spacious platform (600 x 800 mm) 3-sided railing as well as knee and foot strip for secure standing four self-locking castors Ø 125 mm, of which 2 with locking device simple assembly (dispatch takes place dismantled) Handrails are available in accordance with DIN EN 131-7 on platforms with ascending angles greater than 60° optional load: 150 kg available in different step and platform versions
