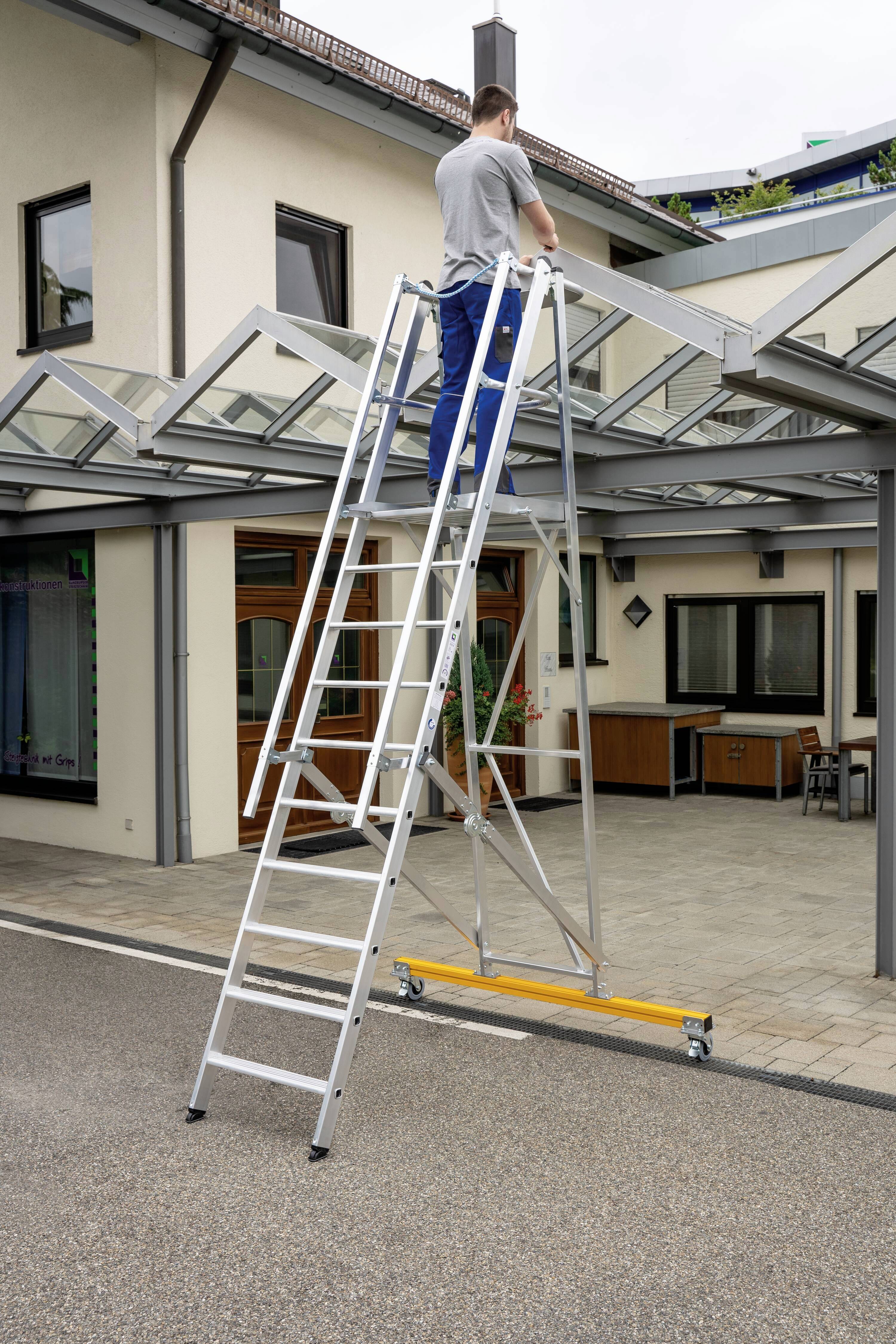

MUNK Günzburger Steigtechnik 52307 Aluminium Platform steps Set-up requires tools Operating height (max.): 3.6 m 43 kg
EAN:
Part number:
Item no:
Technical specifications
- Total length folded: 3.25 m
- Holm height Support part: 58 mm
- Platform height: 1.61 m
- Platform length: 650 mm
- Step length: 1.6 m
- Stages incl. platform/ceiling board: Yes
- Traversfer width: 1.35 m
- Lower outer width: 1.35 m.
- Product type
Platform steps
- Working height range
3.1 m - 4 m
- Material
Aluminium
- No. of rungs/steps
7
- Step depth
80 mm
- Weight
43 kg
- Operating height (max.)
3.6 m
- External width
650 mm
- Design type
Accessible on one side, with rollers
- Features
Set-up requires tools
- Platform width
600 mm
- Platform depth
0.65 mm
- Width
1350 mm
- Height
2.61 m
- Depth
1600 mm
- Steps
235 mm
- Load capacity (max.)
150 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2271349 MUNK Günzburger Steigtechnik 52307 Aluminium Platform steps Set-up requires tools Operating height (max.): 3.6 m 43 kg
Description
Platform ladder made of aluminum stable rectangular tube-beams 80 mm deep, ribbed steps large, skid-proof working platform (650 x 600 mm) 4-way bricked-up sprouts-/spar connection with two-sided handrail, 3-sided railings, The knee bar and safety rope for secure walking and standing thanks to sturdy steel hinges that fold together to save space Support part with stabilizing cross traverse for high stability integrated fixed rollers Ø 125 mm with locking device for a quick change of position in the unfolded state nivello®-conductor shoes with patented 2-axis inclination technology generous tool storage Outer width: 650 mm (without traverse) Step distance: 235 mm conductor inclination: 70° maximum load 150 kg
