MUNK Günzburger Steigtechnik 600954 Bridge 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

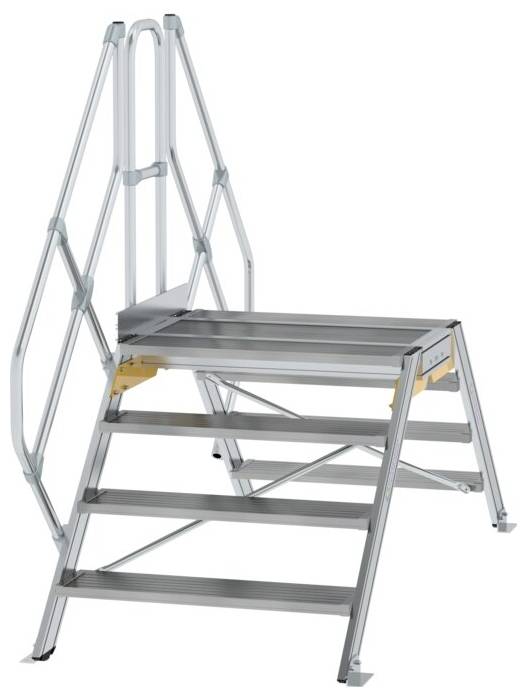

Munk crossing 45° step width 1000 mm 4 levels
- To be installed with tools
Technical specifications
- Angle 45 °
- Step width 1000 mm
- Coating: Aluminium rimmed
- Clear height 760 mm
- Light platform width 820 mm
- Product type
Bridge
- Material
Aluminium
Steel (galvanized)
- No. of rungs/steps
4
- Nosing
2753 mm
- External width
1150 mm
- Content
1 pc(s)
- Height
2035 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3401773 MUNK Günzburger Steigtechnik 600954 Bridge 1 pc(s)
Description
Stationary crossing made of aluminum with inclination of 45°. Step and platform width: 1,000 mm. Platform length 460 mm Final steps (depth: 225 mm) installed at the same height as platform (total floor area: 910 mm). Step and platform design standard in corrugated aluminum (R 9), optionally also available with other linings. Handrails and railings single-sided Ø 40 mm with screwed connection elements (height: 1,100 mm) standard. Second handrail optional (required at wall distance smaller/larger 120 mm according to DIN EN ISO 14122-3). Lower cross bars with robust base angles for floor mounting. Easy mounting through delivery in pre-mounted modules including mounting instructions. Maximum load 1.5 kN/m2, Step load 150 kg, Total load 300 kg. Note: The standard includes galvanized steel connecting parts suitable for indoor use. They can also be made in stainless steel for an additional cost, WAS is recommended for outdoor use
