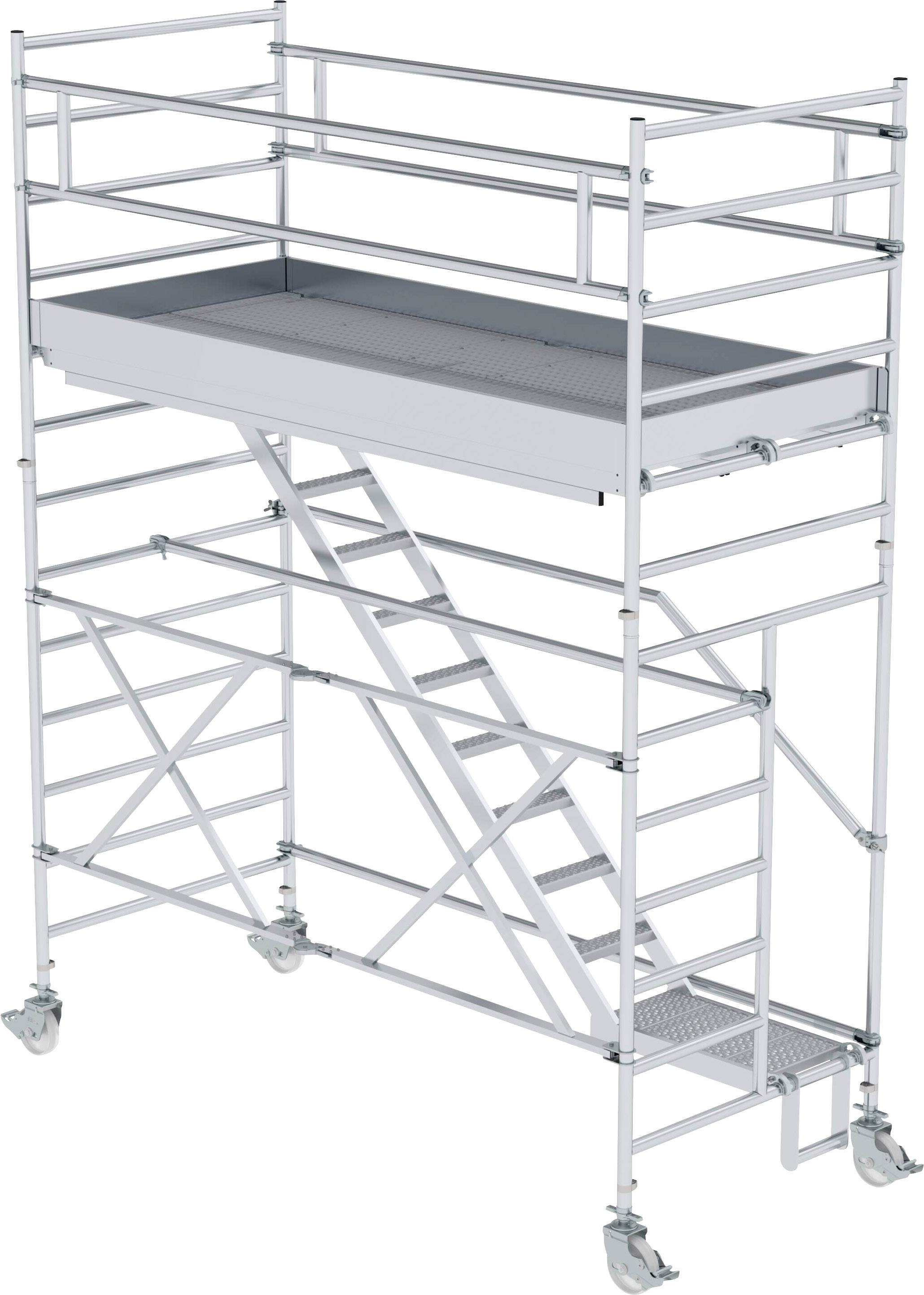

MUNK Günzburger Steigtechnik 70500 Mobile scaffold Toolfree set-up, fixed
EAN:
Part number:
Item no:
Technical specifications
- Coating: Aluminum grating anodized
- Rail height 1000 mm
- Platform design: Aluminum grating
- Platform height 2800 mm
- Rung-/step width: 600 mm
- Permissible load per square meter: 1.5 kN/m2
- Product type
Mobile scaffold
- Dim
(L x W x H) 3000 x 1320 x 3900 mm
- Nosing
8660 mm
- Design type
Mobile
- Features
Toolfree set-up
fixed
- Standards
DIN EN 1004
- Width
1320 mm
- Height
3900 mm
- Length
3000 mm
- Step depth
100 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2271702 MUNK Günzburger Steigtechnik 70500 Mobile scaffold Toolfree set-up, fixed
Description
For the safe and fast release of trucks and commercial vehicles from ice and snow loads. Also ideal for repairs on truck tarpaulins and superstructures can be used. Compact, stable aluminum scaffold system can be easily moved over four castors and can therefore also be used anywhere maintenance-free, long-lasting and weather-resistant inclined ascent with handrail and 100 mm deep steps made of aluminum perforated sheet (R12) plus entry stage skid-proof platform made of aluminum grating (R12) with through flap. The perforated grid prevents the lying of dirt, snow and moisture 4-sided railing with foot and knee bar for a high work safety Simple mounting without tools via plug connections and self-closing locking claws takes the design into account DIN EN 1004 permissible load: 1.5 kN/m² fast delivery (3 – 5 working days)
