Name: Murata Non-standard battery (rechargeable) 18650 Flat top Li-ion 3.6 V 2.1 Ah 1 pc(s)
Brand: Murata
SKU: 3768037

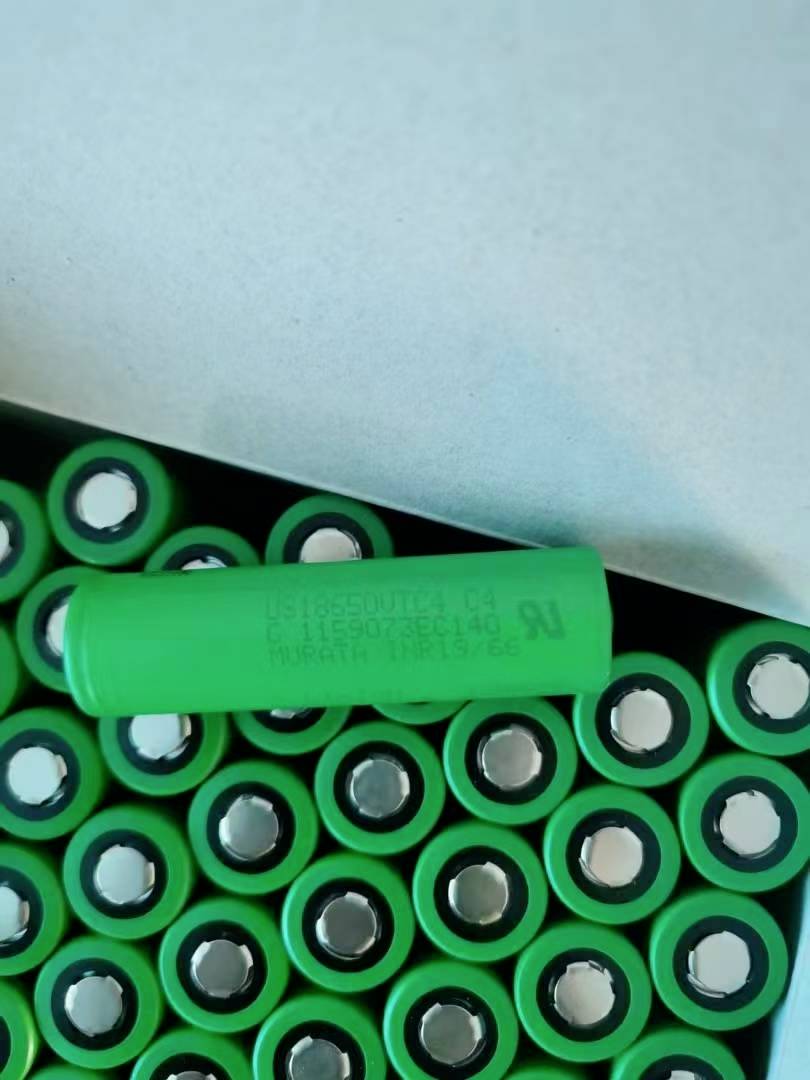

A green cylindrical battery lies on top of a cluster of green battery cells in a box.

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Murata US18650VTC4 Li-ion 3.6V / 2.1Ah

Extremely high current carrying capacity: Up to 30A constant discharge current (during temperature monitoring).
Premium quality from Murata: Highest reliability and cycle strength thanks to the tried and tested VTC4 chemistry.
Ideal high-performance battery: Perfect for power tools, electric bikes, modeling and industrial applications.

Technical specifications

Charging procedure CC-CV (constant current - constant voltage)

Size: 18650

Product type: Non-standard battery (rechargeable)

Technology: Li-ion

Dim: (Ø x H) 18.2 mm x 65 mm

Voltage: 3.6 V

Capacity (mAh, Ah): 2.1 Ah

Special-purpose battery features: Flat top

Max. charge voltage: 4.2 V

Max. charging current: 4 A

Terminal voltage: 2.5 V

Discharge current (max.): 30 A

Continuous discharge: 20 A

Min. temperature: -20 °C

Max. temperature: 75 °C

Height: 65 mm

(Ø): 18.2 mm

Weight: 45.5 g

Content: 1 pc(s)

Type: US18650VTC4

Rechargeable: Yes

Integrated surge protection: No

Documents & Downloads

Datasheet

Datasheet 3768037 Murata Non-standard battery (rechargeable) 18650 Flat top Li-ion 3.6 V 2.1 Ah 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3768037 Murata Non-standard battery (rechargeable) 18650 Flat top Li-ion 3.6 V 2.1 Ah 1 pc(s)

Description

The Murata US18650VTC4 is a complete legend among high-performance rechargeable batteries. With a capacity of 2100 mAh and an impressive continuous current output of up to 30A, this unprotected cell provides maximum energy exactly when it is needed the most.
