Name: Murata US18650VTC5 Non-standard battery (rechargeable) 18650 Flat top Li-ion 3.6 V 2.6 Ah 1 pc(s)
Brand: Murata
SKU: 3768036

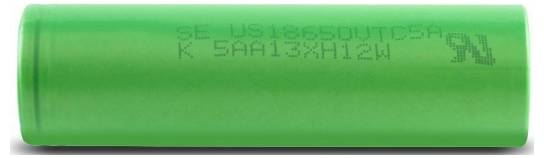

Green cylindrical battery cell with printed text on its side, shown against a white background.

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Murata US18650VTC5 Li-ion 3.6V / 2.6Ah

Extremely high discharge current of up to 30A (with temperature monitoring)
Outstanding thermal stability and security thanks to reliable industrial quality
Long-lasting and cycle-resistant with high power output

Technical specifications

Charging procedure CC-CV (constant current - constant voltage)

Size: 18650

Product type: Non-standard battery (rechargeable)

Technology: Li-ion

Dim: (Ø x H) 18.35 mm x 65.1 mm

Voltage: 3.6 V

Capacity (mAh, Ah): 2.6 Ah

Special-purpose battery features: Flat top

Max. charge voltage: 4.2

Max. charging current: 4 A

Terminal voltage: 2.5 V

Discharge current (max.): 30 A

Continuous discharge: 20 A

Min. temperature: -20 °C

Max. temperature: 60 °C

Height: 65.1 mm

(Ø): 18.35 mm

Weight: 44.3 g

Content: 1 pc(s)

Type: US18650VTC5

Rechargeable: Yes

Integrated surge protection: No

Documents & Downloads

Datasheet

Datasheet 3768036 Murata US18650VTC5 Non-standard battery (rechargeable) 18650 Flat top Li-ion 3.6 V 2.6 Ah 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3768036 Murata US18650VTC5 Non-standard battery (rechargeable) 18650 Flat top Li-ion 3.6 V 2.6 Ah 1 pc(s)

Description

The Murata US18650VTC5 is a high-current high-drain cell of the top class. With a capacity of 2600 mAh and a constant discharge current of up to 20A (or 30A at shutdown at 80°C), it is perfectly suitable for demanding applications in power tools, modeling or for E-mobility.
