Name: Murata US18650VTC6 Non-standard battery (rechargeable) 18650 Flat top Li-ion 3.6 V 3 Ah 1 pc(s)
Brand: Murata
SKU: 3767979

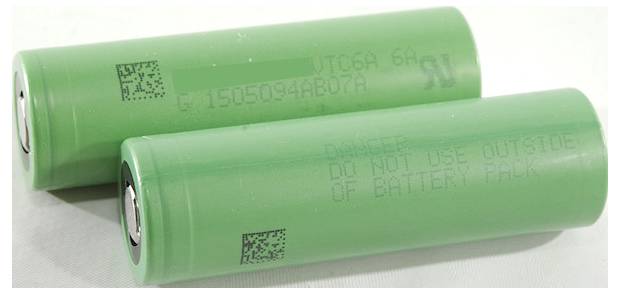

Two green cylindrical rechargeable batteries lying on a white surface, with faint printed warning text and codes visible.

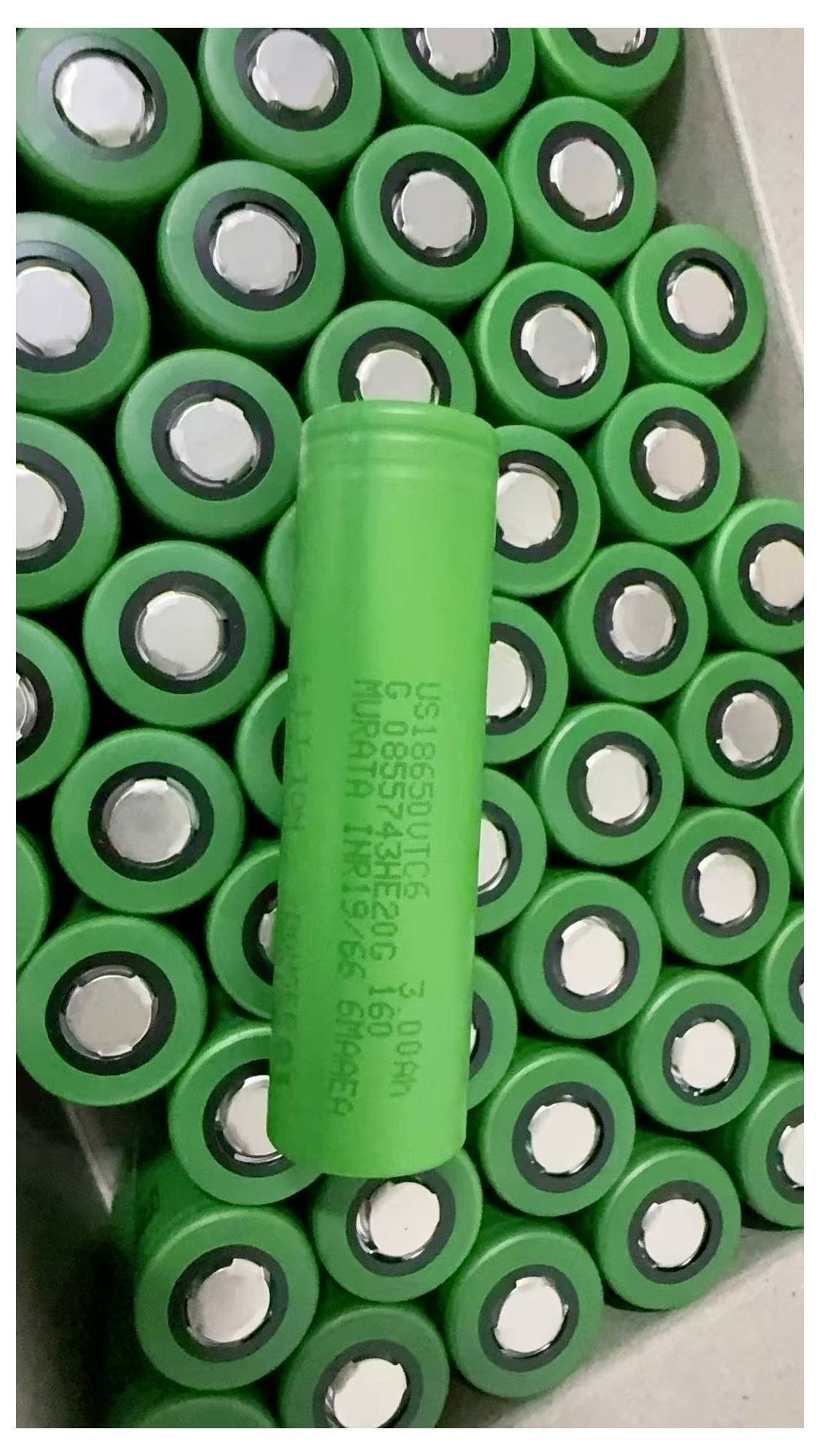

Close-up of green cylindrical batteries packed in a tray, with one battery standing upright in the center showing printed specifications.

1/2

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Murata US18650VTC6 Li-ion 3.6V / 3.0Ah

High capacity & extreme discharge current: Perfect balance of 3,000 mAh capacity and up to 30 A discharge load.
First-class brand quality: Developed by Murata (Sony) for maximum reliability and durability
Excellent cycle stability: Constant power output even under high load.

Technical specifications

Charging procedure CC-CV (constant current - constant voltage)

Size: 18650

Product type: Non-standard battery (rechargeable)

Technology: Li-ion

Dim: (Ø x H) 18.35 mm x 65 mm

Voltage: 3.6 V

Capacity (mAh, Ah): 3 Ah

Special-purpose battery features: Flat top

Max. charge voltage: 4.25 V

Max. charging current: 5 A

Terminal voltage: 2 V

Discharge current (max.): 30 A

Continuous discharge: 15 A

Min. temperature: -20 °C

Max. temperature: 60 °C

Height: 65 mm

(Ø): 18.35 mm

Weight: 46.6 g

Content: 1 pc(s)

Type: US18650VTC6

Rechargeable: Yes

Integrated surge protection: No

Documents & Downloads

Datasheet

Datasheet 3767979 Murata US18650VTC6 Non-standard battery (rechargeable) 18650 Flat top Li-ion 3.6 V 3 Ah 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3767979 Murata US18650VTC6 Non-standard battery (rechargeable) 18650 Flat top Li-ion 3.6 V 3 Ah 1 pc(s)

Description

The Murata US18650VTC6 is the ultimate high drain cell for power-hungry applications. With a nominal capacity of 3,000 mAh and a massive continuous discharge current of up to 30 A (with temperature monitoring), this battery provides maximum performance and endurance for battery carriers, power tools, E-bikes and demanding LED torches.

This text is machine translated.
