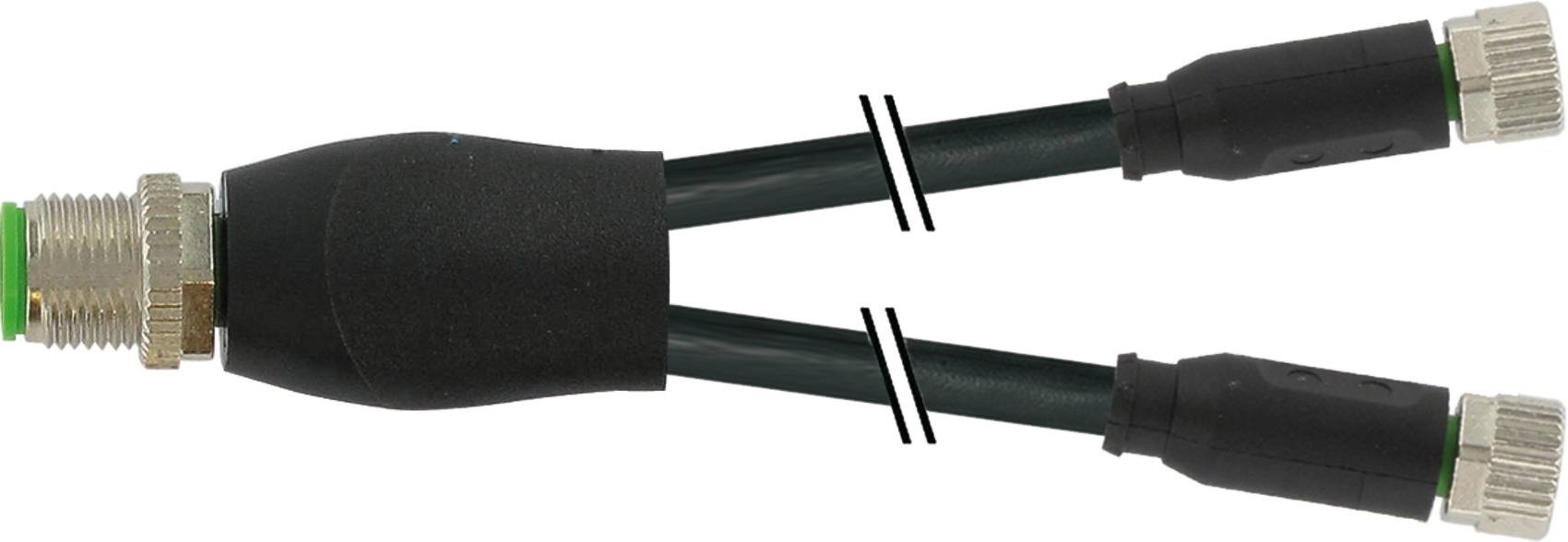

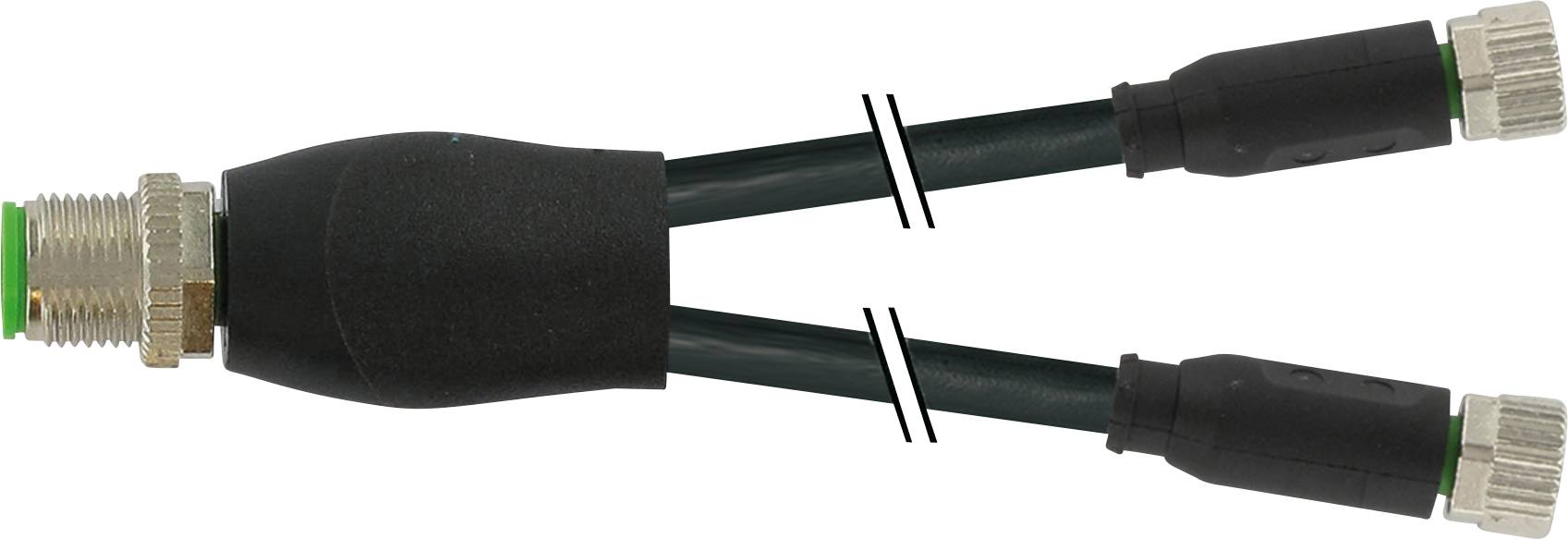

Buy Murrelektronik 7000-40821-6200300 Sensor/actuator splitter/adapter Socket, straight, Socket, straight 3.00 m No. of pins

Murrelektronik 7000-40821-6200300 Sensor/actuator splitter/adapter Socket, straight, Socket, straight 3.00 m No. of pins-0

Murrelektronik 7000-40821-6200300 Sensor/actuator splitter/adapter Socket, straight, Socket, straight 3.00 m No. of pins-1

Murrelektronik 7000-40821-6200300 Sensor/actuator splitter/adapter Socket, straight, Socket, straight 3.00 m No. of pins-2

1/3

Product type

Sensor/actuator splitter/adapter

Connector type

Socket, straight

Connection side A

M8 socket, straight

Connection side B

M12 socket, straight

No. of pins

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Total (€ 25.20 / piece)

€ 28.56

-12 %

€ 25.20

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Design: 40821
Core number/cross-section: 3× 0.25 mm²
Drag chain values: 2 Mio.
Wire insulation: PVC (br, bl, sw)
Bending radius (moving): 15× outer-Ø
Temperature range (flexible): -5...+80 °C.
Cable identification 620
Cable weight [g/m]: 26.62
Material (conductor): Plain copper braid
Resistance (conductor): Max. 79 Ω/km (20 °C)
Single wire Ø (conductor): 0.1 mm
Construction (conductor): 32× 0.1 mm (strand class 6)
AWG: Similar AWG 24
Material (wire insulation): PVC
Wire Ø incl. insulation: 1.25 mm ±5%
Wire color/numbering: br, sw, bl
Twisted-strand network: 3 wires stranded
Shielding: no.
Chemical resistance: Good resistance to oil, petrol and chemicals
Test voltage: 2000 V/AC
Bending radius (fixed): 10× outer-Ø
Number of bending cycles (drag chain): Max. 2 Mio (25 °C)
Travel path (drag chain): Max. 5 m (horizontal)
Travel speed (drag chain): Max. 3.3 m/s.
Acceleration (drag chain): Max. 5 m/s²
Dimensioning surge voltage: 1.5 kV
LED indicator: no.
Locking the slots: Screw thread (M8/M12×1 mm) recommended tightening torque 0.4/0.6 Nm, self-locking
Material (locking): Die-cast zinc, matt nickel-plated
Fastening method: Plugged, screwed
Pollution level 3

Type: 7000-40821-6200300

Product type: Sensor/actuator splitter/adapter

Connector type: Socket, straight
Socket, straight

Connection side A: M8 socket, straight

Connection side B: M12 socket, straight

No. of pins: 4

Cable length: 3.00 m

Jacket material: PUR

Nominal voltage: 300 V AC

Nominal current: 4 A

Nominal current - rounded value: 4 A

Outside Ø: 4.3 mm

Cross-section (sensor/actuator wiring): 0.25 mm²

Thread type (wiring and installation): M12

Cable colour: Black

Coding: A

Contact material: Copper alloy

Contact surface: Gold plated

: IP65
IP66K
IP67

Min. temperature: -25 °C

Max. temperature: +85 °C

Manufacturer part #: 7000-40821-6200300

Content: 1 pc(s)

Cable Ø: 4.5 mm

RoHS-compliant: Yes

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Connection side B

Type

Nominal current - rounded value

Connection side A

Connector type

No. of pins

Nominal voltage

Cable length

Thread type connection side

Murrelektronik 7000-40701-2330200 Sensor/actuator splitter/adapter M12 x 1 Socket, straight, Socket, straight 2.00 m No. of pins (RJ): 4 1 pc(s)

Item no:2312265

M12 socket, straight

7000-40701-2330200

4 A

M12 socket, straight

Socket, straightSocket, straight

300 V AC

2.00 m

M12 x 1

Murrelektronik 7000-40701-6130200 Sensor/actuator splitter/adapter M12 x 1 Socket, straight, Socket, straight 2.00 m No. of pins (RJ): 4 1 pc(s)

Item no:2312266

M12 socket, straight

7000-40701-6130200

4 A

M12 socket, straight

Socket, straightSocket, straight

300 V AC

2.00 m

M12 x 1

Murrelektronik 333370 Sensor/actuator splitter/adapter M12 x 1 straight 10 pc(s) Piece

Item no:2312292

M12 socket, straight

333370

4 A

M12 socket, straight

straight

M12 x 1

Murrelektronik 7000-40701-2230030 Sensor/actuator splitter/adapter M12 x 1 Plug, straight, Socket, straight 0.30 m No. of pins (RJ): 4 1 pc(s)

Item no:2312633

M12 socket, straight

7000-40701-2230030

4 A

M12 plug, straight

Plug, straightSocket, straight

300 V AC

0.30 m

M12 x 1

Murrelektronik 7000-40701-2330100 Sensor/actuator splitter/adapter M12 x 1 Socket, straight, Socket, straight 1.00 m No. of pins (RJ): 4 1 pc(s)

Item no:2312634

M12 socket, straight

7000-40701-2330100

4 A

M12 socket, straight

Socket, straightSocket, straight

300 V AC

1.00 m

M12 x 1

Murrelektronik 7000-40701-6130150 Sensor/actuator splitter/adapter M12 x 1 Socket, straight, Socket, straight 1.50 m No. of pins (RJ): 4 1 pc(s)

Item no:2312635

M12 socket, straight

7000-40701-6130150

4 A

M12 socket, straight

Socket, straightSocket, straight

300 V AC

1.50 m

M12 x 1

Murrelektronik 7000-40701-6130015 Sensor/actuator splitter/adapter M12 x 1 Socket, straight, Socket, straight 0.15 m No. of pins (RJ): 4 1 pc(s)

Item no:2313070

M12 socket, straight

7000-40701-6130015

4 A

M12 socket, straight

Socket, straightSocket, straight

300 V AC

0.15 m

M12 x 1

Murrelektronik 7000-15061-0000000 Sensor/actuator splitter/adapter M12 x 1 Plug, straight, Socket, straight No. of pins (RJ): 4 1 pc(s)

Item no:2313409

M12 socket, straight

7000-15061-0000000

4 A

M12 plug, straight

Plug, straightSocket, straight

M12 x 1

Murrelektronik 7000-40057-0000000 Sensor/actuator splitter/adapter M12 x 1 Plug, straight, Plug, straight No. of pins (RJ): 5 1 pc(s)

Item no:2313430

M12 plug, straight

7000-40057-0000000

4 A

M12 plug, straight

Plug, straightPlug, straight

M12 x 1

Murrelektronik 7000-40701-6130060 Sensor/actuator splitter/adapter M12 x 1 Socket, straight, Socket, straight 0.60 m No. of pins (RJ): 4 1 pc(s)

Item no:2313464

M12 socket, straight

7000-40701-6130060

4 A

M12 socket, straight

Socket, straightSocket, straight

300 V AC

0.60 m

M12 x 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2314241 Murrelektronik 7000-40821-6200300 Sensor/actuator splitter/adapter Socket, straight, Socket, straight 3.00 m No. of pins
