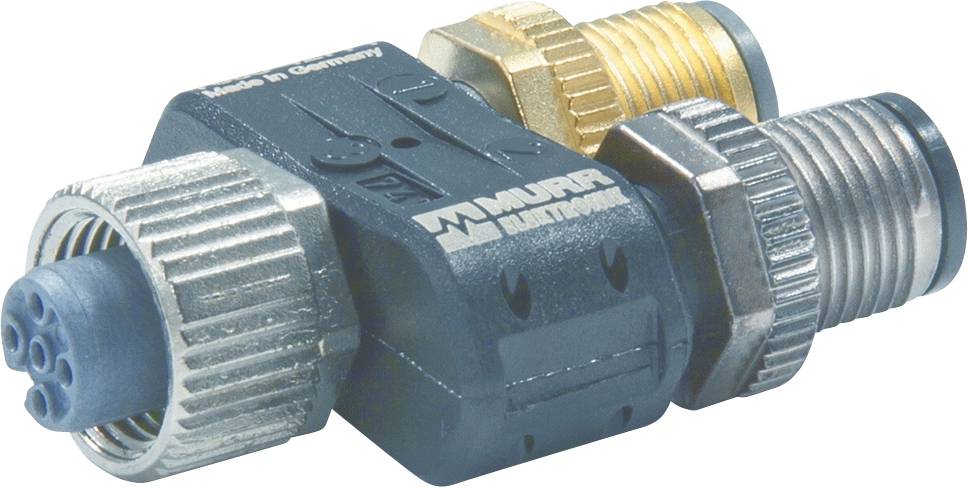

Murrelektronik 7000-42771-0000000 T piece M12 x 1 Plug, straight, Socket, straight 100 pc(s) Piece
EAN:
Part number:
Item no:
Product type
T piece
Connector type
Plug, straight
Socket, straight
Connection side A
M12 plug, straight
Connection side B
M12 socket, straight
Nominal current
4 A
Datasheet (PDF)
Number (Package size 100 pc(s))
Total (€ 13.40 / piece)
€ 1,340.34
plus VAT.
Only 1 Set(s) available
Highlights & Details
T-piece SlimLine M12-BU 5P. / 2x M12-St infeed IO-Link + infeed power to IO-Link Class B.
Our service for you
Technical specifications
- Dimensioning surge voltage: 0.8 kV
- Locking the slots: Screw thread (M12×1 mm) recommended tightening torque 0.6 Nm, self-locking
- Material (locking): Die-cast zinc, matt nickel-plated
- Fastening method: Plugged, screwed
- Pollution level 3
- Packaging type
Piece
- Type
7000-42771-0000000
- Product type
T piece
- Connector type
Plug, straight
Socket, straight
- Connection side A
M12 plug, straight
- Connection side B
M12 socket, straight
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
Push-fit
- Thread type connection side
M12 x 1
- Thread type (wiring and installation)
M12
- Coding
A
- Contact material
Copper alloy
- Contact surface
Au
IP65
IP67
- Features
A-coded
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Seal type
Screw-on
- Manufacturer part #
7000-42771-0000000
- Content
100 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2313475 Murrelektronik 7000-42771-0000000 T piece M12 x 1 Plug, straight, Socket, straight 100 pc(s) Piece
