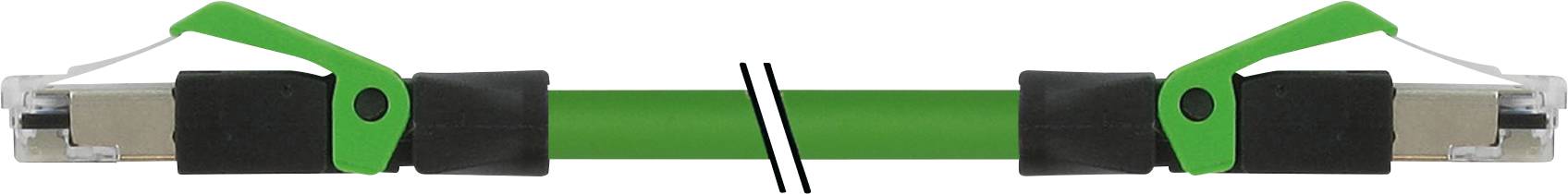

Murrelektronik 7000-74301-7961500 Sensor/actuator connector (pre-fab) RJ45 plug enclosure, RJ45 plug enclosure 15.00 m N
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector (pre-fab)
Connector type
RJ45 plug enclosure
RJ45 plug enclosure
Connector standard
RJ45
Connection side A
RJ45 plug
Connection side B
RJ45 plug
Datasheet (PDF)
Number
Total (€ 70.58 / piece)
€ 92.44
-24 %
€ 70.58
plus VAT.
Only 5 Piece(s) available
Highlights & Details
RJ45 pcs. 0° / RJ45 pcs. 0° Ethernet PUR 2x2xAWG22 shielded gn UL,CSA+tow. 15m
Our service for you
Technical specifications
- Design: 74301
- Number of wires/cross-section: 2× 2× 0.34 mm²
- drag chain values: 3 Mio
- wire insulation: PE (ws, ge, bl, or)
- bending radius (moving): 12× outer Ø
- Temperature range (moving): -30...+70 °C
- Cable identification: 796
- Cable weight [g/m]: 69.3
- Material (conductor): CU-strand, blank
- resistance (conductor): Max. 20 Ω km/insulation
- : °C (wire insulation: ±5% Ø
- C/core insulation: 4 mm ws, ge, bl, or
- Verseilverbund: Star quad, 4 wires stranded via central filler
- Shielding: Yes
- thermal resistance: Flame resistant according to UL 1581 Section 1060 (FT1), Section 1061 (cable flame), Section 1080 (VW-1) / IEC 60332-1-2
- bending radius (fixed): 5× Outer-Ø
- Number of bending cycles (drag chain): Max. 3 Mio (°C
- ) (25 m) Max. 5 m (horizontal)
- Travel speed (trailing chain): Max. 3.3 m/s
- Acceleration (trailing chain): Max. 2 m/s²
- Rated surge voltage: 1.0 kV
- LED display: no
- Locking of slots: Snap-lock material
- (locking): PA
- Mounting type: Plugged
- Pollution degree: 3
- Packaging type
Piece
- Type
7000-74301-7961500
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
RJ45 plug enclosure
RJ45 plug enclosure
- Connector standard
RJ45
- Connection side A
RJ45 plug
- Connection side B
RJ45 plug
- No. of pins
4
- Cable length
15.00 m
- Jacket material
PUR
- Nominal voltage
300 V
- Nominal current
1.5 A
- Nominal current - rounded value
1.5 A
- Outside Ø
6.7 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
RJ45
- Factory colour
Green
- Cable colour
Green
- Contact material
Copper
IP20
- Features
PUR jacket
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Seal type
Snap-in
- Manufacturer part #
7000-74301-7961500
- Content
1 pc(s)
- Cable Ø
6.7 mm
- RoHS-compliant
Yes
- Halogen-free
No
- UKCA
not relevant
