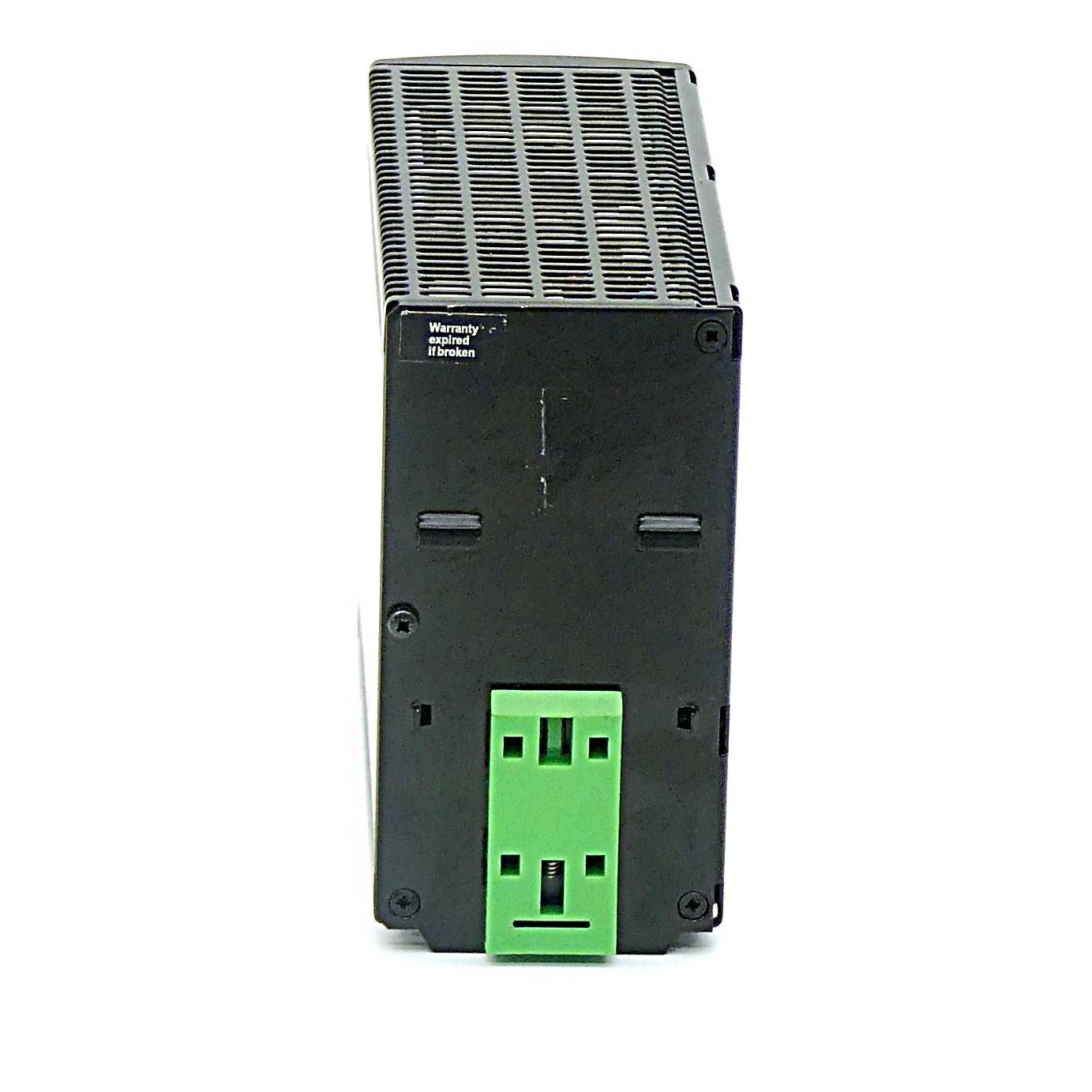

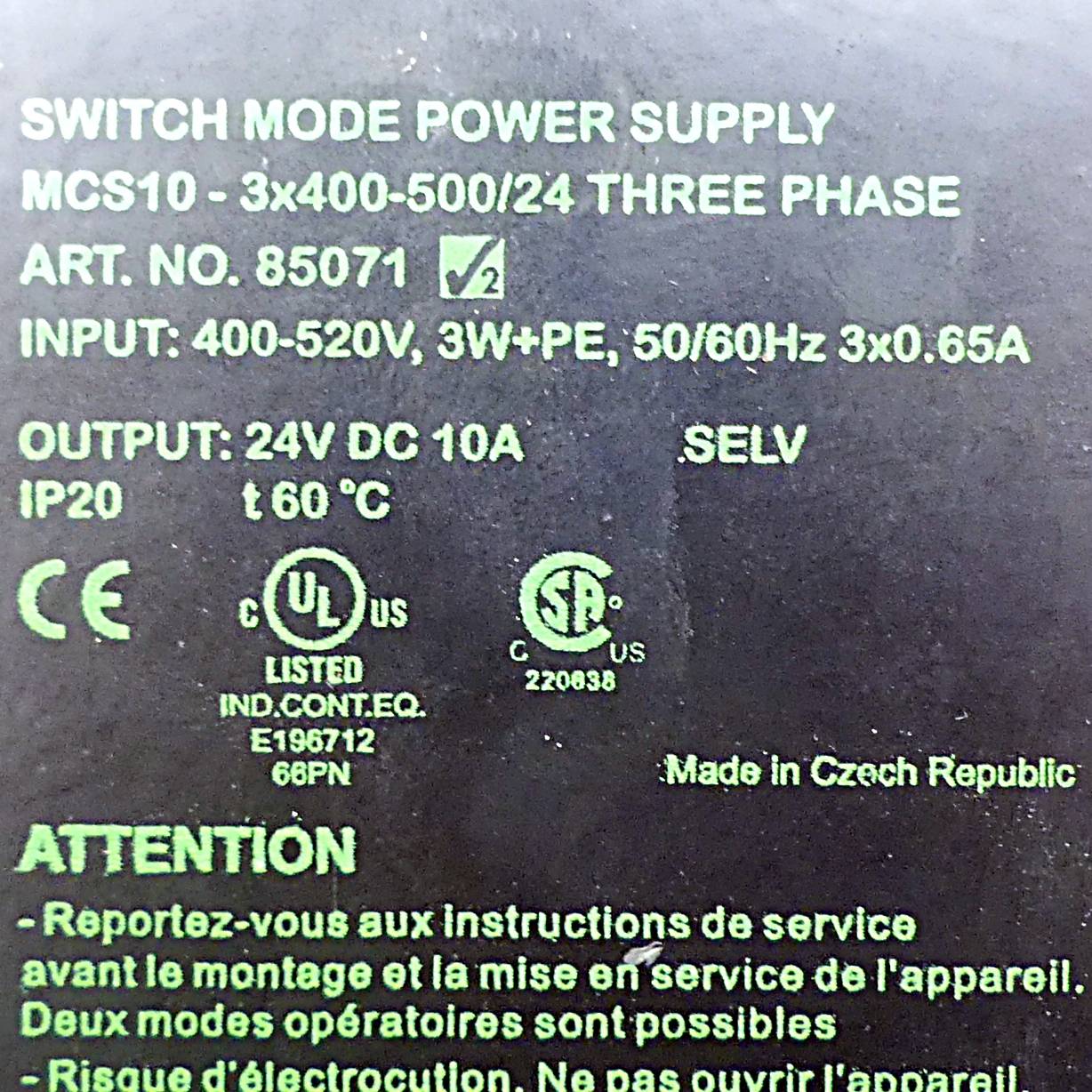

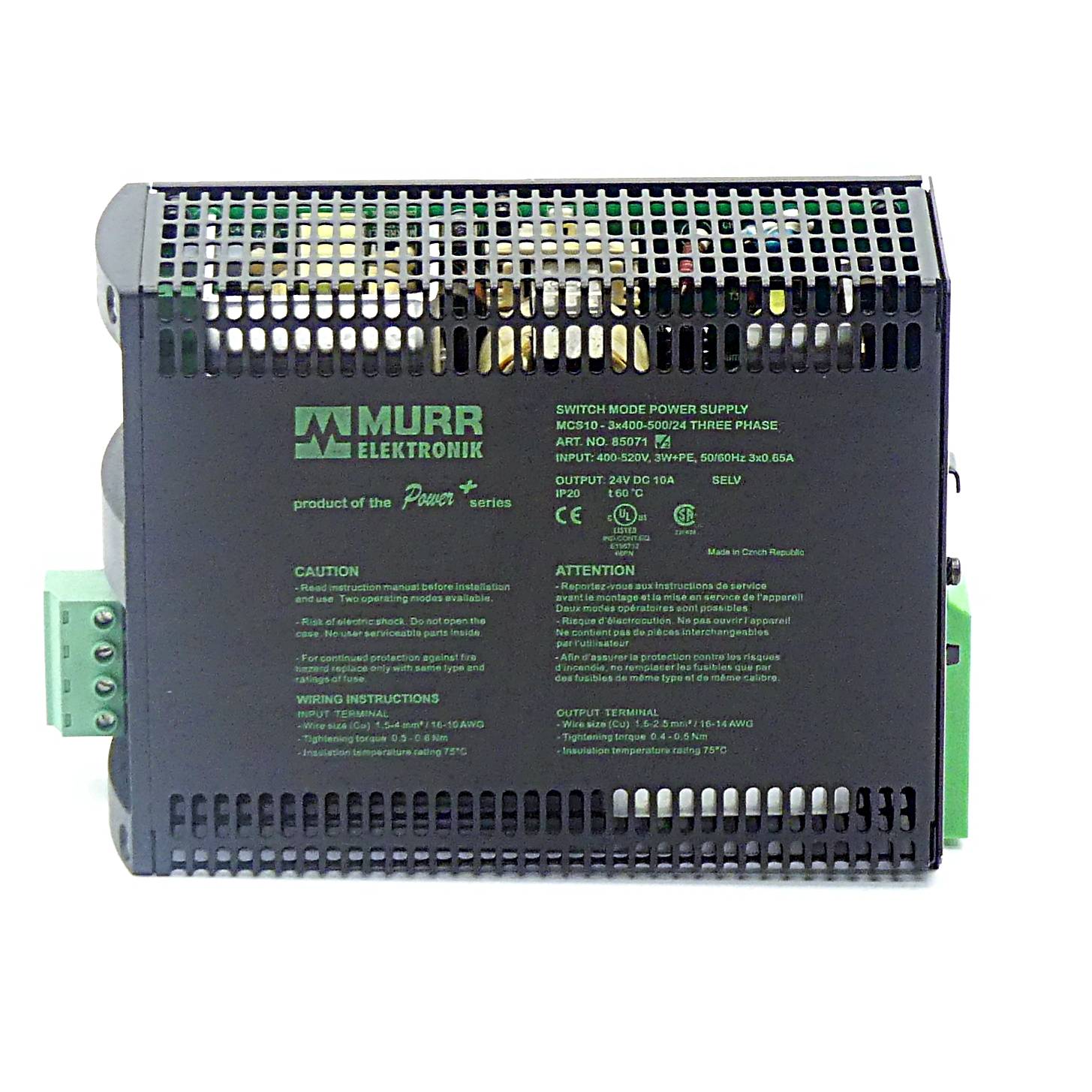

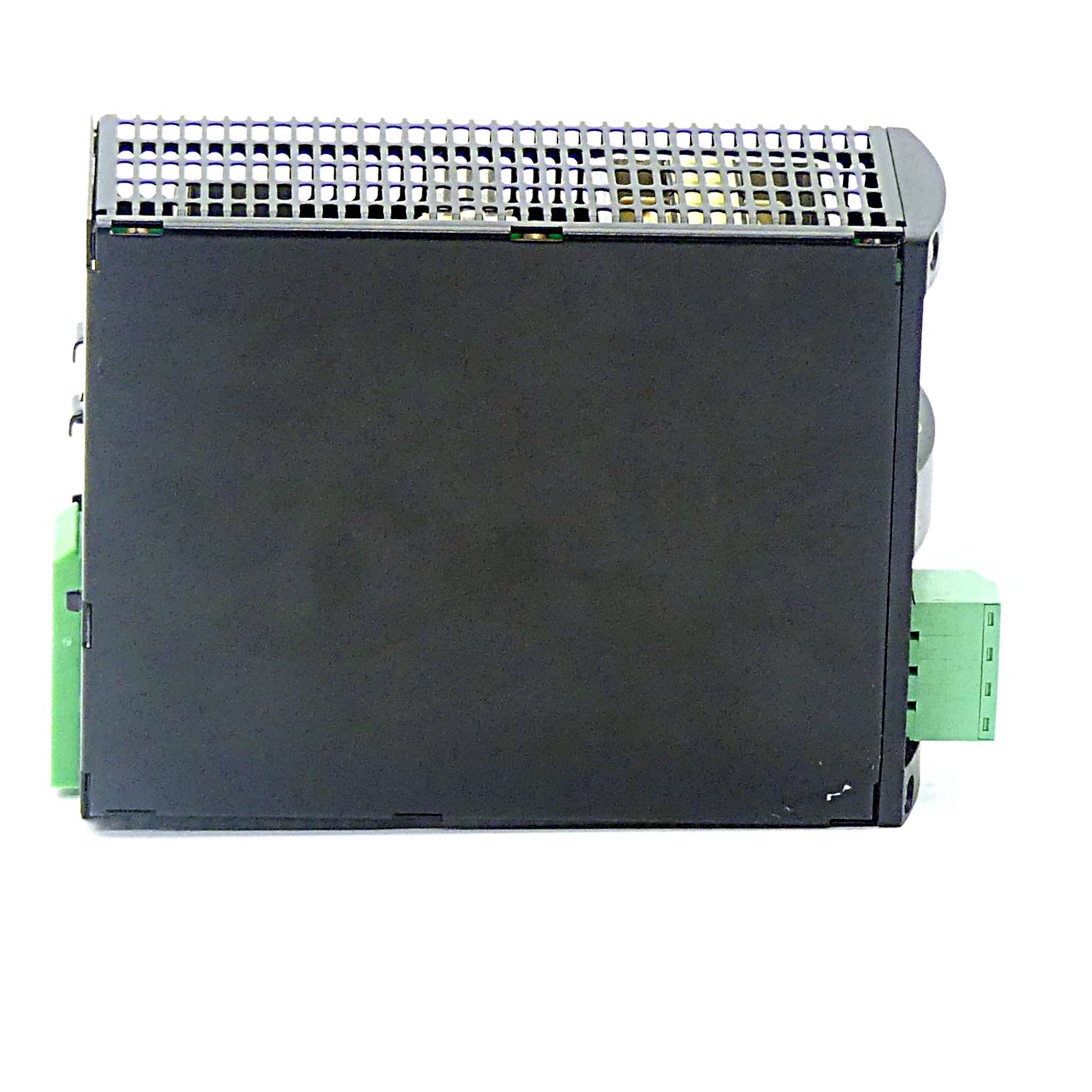

Murrelektronik 85071 Rail mounted PSU (DIN) 28 V DC 12 A No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 318.49 / piece)
€ 318.49
plus VAT.
14-day return policy included
Technical specifications
- Mounting type: Snaps onto mounting rail TH35 (EN 60715)
- Frequency: 50 Hz - 60 Hz
- Device protection: short-circuit and overload-proof
- LED display: LED (green) for output voltage
- Relative humidity: 5 % - 95 %, condensation not permitted
- Ripple: Max. 20 mV rms/RMS
- External backup fuse: Max. 3× 2 A
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
360 V AC
- Output voltage
24 V DC
- Inputs
0.65 A
- Input voltage
360 - 550 V
- Input voltage (max.)
550 V AC
- Max. output current
12 A
- Output current (max.) - rounded
12 A
- Output type (power supply units)
Adjustable
- Phases
3
- Output voltage (nominal)
28 V DC
- No. of outputs
1 x
- Dim
(L x W x H) 198 x 68 x 127 mm
- Output voltage (max.)
28 V DC
- Output voltage (min.)
24 V DC
- Operating temperature (max.)
+60 °C
- Operating temperature (min.)
0 °C
- Manufacturer part #
85071
- Content
1 pc(s)
- Width
68 mm
- Height
127 mm
- Length
198 mm
- Max. temperature
+60 °C
- Min. temperature
0 °C
- Type
85071
- Efficiency
90 %
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2309951 Murrelektronik 85071 Rail mounted PSU (DIN) 28 V DC 12 A No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2309951 Murrelektronik 85071 Rail mounted PSU (DIN) 28 V DC 12 A No. of outputs:1 x Content 1 pc(s)
