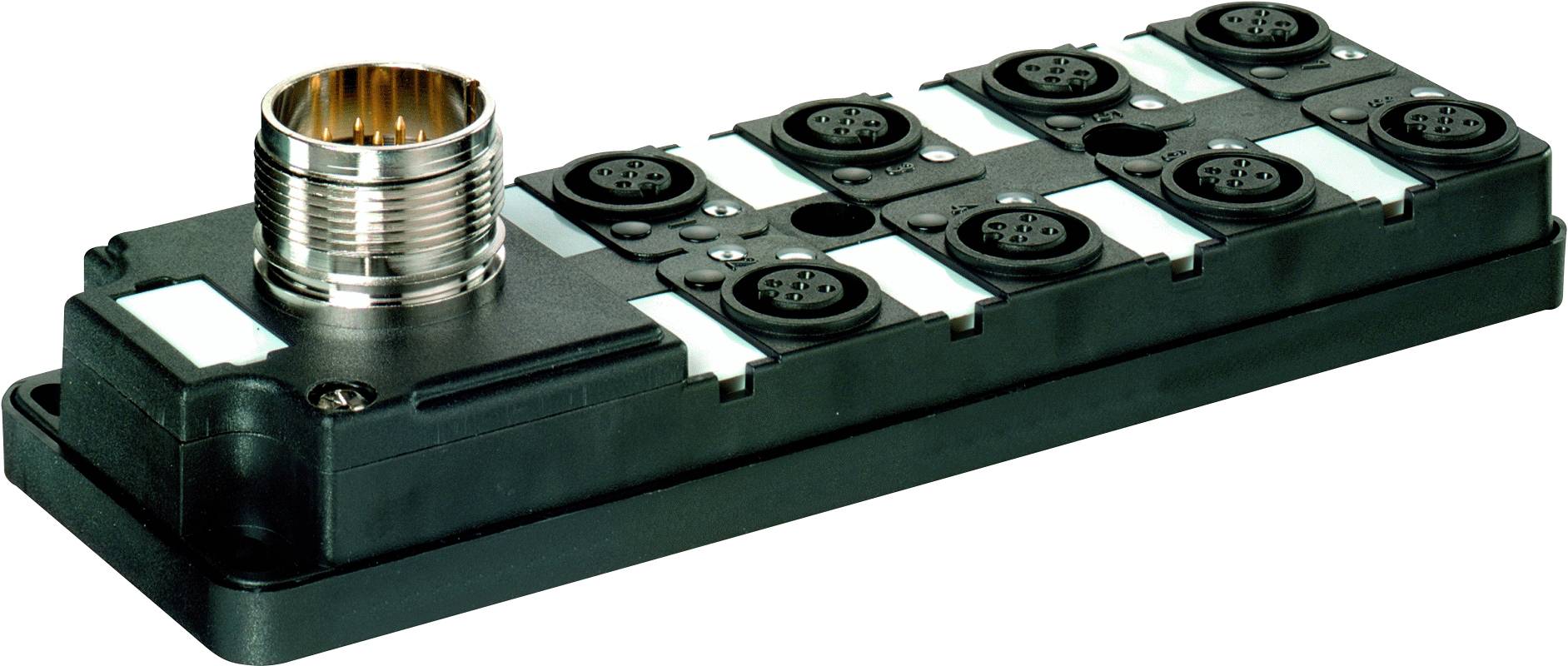

Murrelektronik 27765 27765 Sensor & actuator box (passive) M12 splitter + plastic thread 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor & actuator box (passive)
No. of signal spaces
1
No. of splitters
8-way
Type
27765
Status indicator
LED
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
14-day return policy included
Technical specifications
- Operating voltage: 24 V DC
- PIN 1 (+)
- PIN 3: (-)
- PIN 4: (NO)/(S1)
- Pin 5: (Ground)
- Slot locking: Screw thread (M12×1 mm)
- Product type
Sensor & actuator box (passive)
- No. of signal spaces
1
- Type
27765
- No. of splitters
8-way
- Status indicator
LED
- Width
50.2 mm
- Length
16.5 mm
IP67 (when connected)
IP67 (when locked)
- Max. power rating per slot
4 A
- Total current (direct supply)
10 A
- Max. temperature
+80 °C
- Min. temperature
-20 °C
- Connector type (distribution boxes)
M12 socket
- Case material
Plastic
- Total no. of pins
4
- Manufacturer part #
27765
- Content
1 pc(s)
- Number of pins
4
- Height
149.2 mm
- RoHS-compliant
Yes
- UKCA
yes
