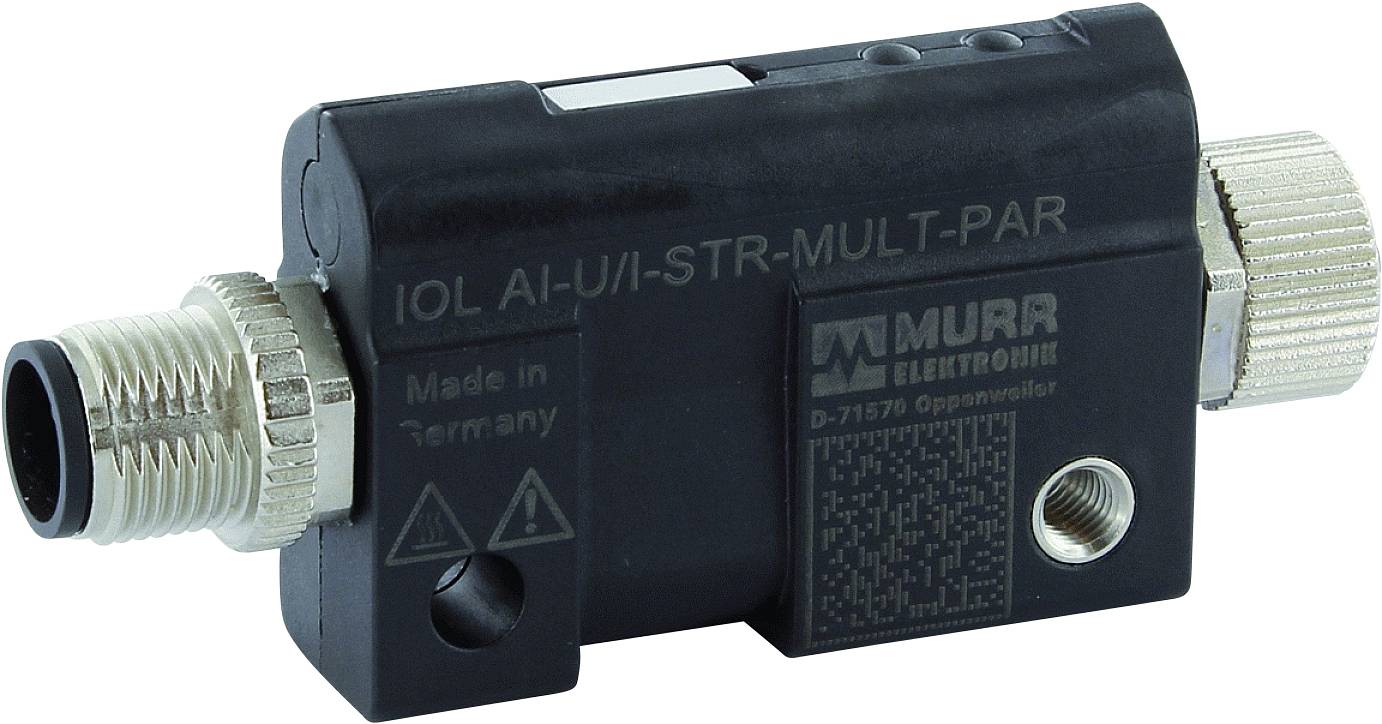

A black electronic device from Murr Elektronik with various connections and the inscription 'Made in Germany'.

Image similar

A black electronic device from Murr Elektronik with various connections and the inscription 'Made in Germany'.

Image similar

Product type

A/D converter

Interfaces

IO-Link

Type

5000-00501-1300001

Operating voltage

24 V DC

Height

32.3 mm

Datasheet (PDF)

Murrelektronik

Dispatches on Thu, 29 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 138.65 / piece)

€ 138.65

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Analogueue input: M12 (socket) 5-pin, A-coded, shielded
Resolution (analogue): 15 bits + sign
Labeling: Laser-labeled
Operating modes: COM2 (38.4 kbit/s)
Data width: 16 bits / 2 bytes
Diagnostics via IO-Link: Yes
Diagnostics: 2 bytes
Input filter: Yes, averaging, parameterizable N = 0...64
Input resistance (analogueue): 232 Ω, 232 Ω, > 100 kΩ, > 100 kΩ
IO-Link: M12 (plug) 5-pin, A-coded
Short circuit and overload: Yes
Short-circuit protection sensor: Yes, permanent
Material (housing): Plastic
Measurement range (analogueue): 0...20 mA, 4...20 mA, 0...10 V, -10...+10 V
Measured value: Current/voltage
Upper limit: 1 byte
Port class A
Regenerative feedback: Yes, permanent
Protection class IP65/IP67
Sensor supply US: 24 V DC (EN 61131-2), max. 200 mA
Specification: IO-Link V1.1
Power consumption maximum 19 mA
Temperature range -30...+70 °C (storage temperature -40...+85 °C)
Surge protection 30 V DC
Monitoring - Limit: Yes
Monitoring - Temperature: Yes
Monitoring - overvoltage: Yes
Monitoring - undervoltage: Yes
Under and over control: Yes
Lower limit: 2 bytes
Reverse polarity protection: Yes, permanent
Polarity reversal protection module: Yes, permanent
Conversion time (analogueue): Max. 5 ms
Value: 348 Na, 348 Na, 179.4 µV, 358.9 µV

Product type: A/D converter

Interfaces: IO-Link

Type: 5000-00501-1300001

Operating voltage: 24 V DC

Height: 32.3 mm

Length: 15 mm

Width: 77.2 mm

Dim: (L x W x H) 15 x 77.2 x 32.3 mm

Control LEDs: Yes

Manufacturer part #: 5000-00501-1300001

Status LEDs: 1

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2313718 Murrelektronik 5000-00501-1300001 A/D converter IO-Link

User & Safety Instructions

User & Safety Instructions 2313718 Murrelektronik 5000-00501-1300001 A/D converter IO-Link
