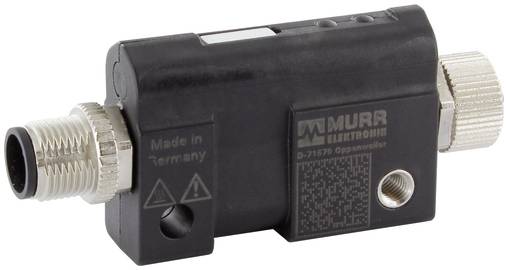

Murrelektronik 5000-00501-1400001 IOL AI-TH-V2-MULT-PAR Expansion 24
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details
IO-Link/analogue converter
- SIMATIC S7-200 is easy: programming software with Windows user interface
- instructions for quick access to PLC technology
- easy installation onto a top hat profile rail
- SIMATIC S7-200 is compact: e.g. CPU 222: (W x H x D) 90 x 80 x 62 mm
- own S7-200 net with PPI protocol
- freely programmable interface.
Technical specifications
- Functions: IO-Link Device
- Housing: Plastic
- Overvoltage protection: Yes
- CE 1
- Protection class IP67
- Depth: 15
- Width: 77.2
- Analogue input: Thermo element
- Min. Operating temperature: -30
- Height: 32.3
- Reverse polarity protection: Yes
- Max. Operating temperature: 70
- Min. Storage temperature: -40
- Storage temperature max.: 85
- Connection type 1 AI
- LED-display: Ethernet-connection/ data traffic
- Operating voltage DC 24
- Housing material: Plastic
- Revision ID: V1.1
- Connection type 2: IO-Link port
- COM2 (38.4 kbit/s) transfer rate
- CONNECTION TECHNOLOGY I/O M12
- Operating voltage min. DC: 18
- China RoHS 25: 1
- Operating voltage DC max. 30
- Port class A
- CULus 1
- Max. Power consumption: 15
- Short-circuit diagnosis: Yes
- Diagnosis by LED: Yes
- Resistance to regenerative loads: Yes
- Overload diagnosis: Yes
- Sales text 2: AI Multi thermocouple, M12, straight
- Temperature monitoring: Yes
- MATERIAL SHORT TEXT: IOL AI-TH-V2-MULT-PAR
- Conversion time with line suppression: OFF: 10 ms;50 Hz: 60 ms;60 Hz: 100 ms
- Operating voltage standard IEC / EN 61131-2
- Mean value filter Process data can be parameterized: Yes
- Diagnostics via IO-Link: Yes
- IO-Link events: Undervoltage supply;lower limit;upper limit;voltage supply;excess temperature;device defect
- Short circuit protection Sensor supply: Yes
- Ambient temperature: -40 °C - 85 °C
- Operating voltage US DC: 24
- Max. Current carrying capacity 0.2
- Cycle time min.: 10
- Process data length input: 2
- Product type
Expansion
- Operating voltage
24
- Height
32.3 mm
- Width
77.2 mm
- Type
IOL AI-TH-V2-MULT-PAR
- Manufacturer part #
5000-00501-1400001
- Dim
(W x H x D) 77.2 x 32.3 x 15 mm
- Display
No
- Max. ambient temperature
85 °C
- Min. ambient temperature
-40 °C
- Depth
15 mm
- Material
Plastic
- Protection class
IP67
- Operating voltage
24 V
- Max. temperature
70 °C
- Min. temperature
-30 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762689 Murrelektronik 5000-00501-1400001 IOL AI-TH-V2-MULT-PAR Expansion 24
Datasheet 3762689 Murrelektronik 5000-00501-1400001 IOL AI-TH-V2-MULT-PAR Expansion 24
User & Safety Instructions
User & Safety Instructions 3762689 Murrelektronik 5000-00501-1400001 IOL AI-TH-V2-MULT-PAR Expansion 24
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Application areas such as:
small and special machine construction: packaging, strapping and coiling machines · food industry: kneading, cutting machines, mix granulating machines · laboratories: laboratory mixers, heating cabinets, vacuum pumps, suction equipment.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU by a connector.
Application areas such as:
small and special machine construction: packaging, strapping and coiling machines · food industry: kneading, cutting machines, mix granulating machines · laboratories: laboratory mixers, heating cabinets, vacuum pumps, suction equipment.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU by a connector.
