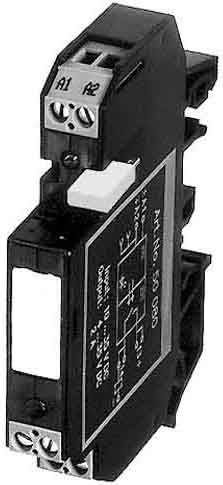

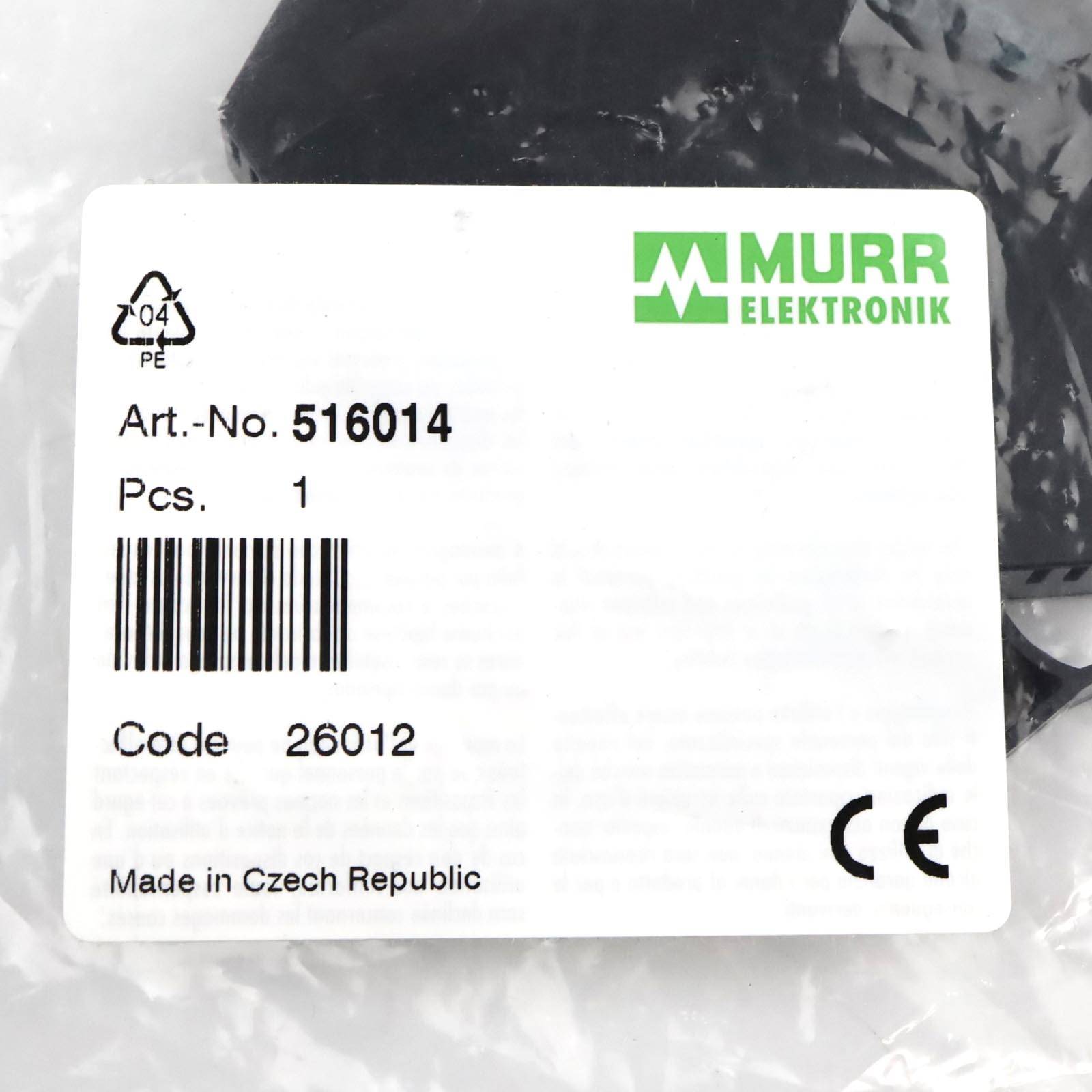

Murrelektronik 516014 Industrial relay Nominal voltage: 24 V DC Switching current (max.): 3 A 1 maker, 1 breaker 1 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial relay
Contact type
1 maker
1 breaker
Nominal voltage
24 V DC
Switching voltage (max.)
250 V DC/AC
Switching current (max.)
3 A
Datasheet (PDF)
Technical specifications
- Mounting type: Snaps onto mounting rail TH35 or G32 (EN 60715)
- LED display: LED (red)
- Minimum load current 1 mA
- Test isolation voltage 2.5 kV
- Switching frequency: Max. 10 Hz
- Product type
Industrial relay
- Type
516014
- Connection
Screw terminal
- Response time
6 ms
- Fall time
3 ms
- Contact type
1 maker
1 breaker
- Contact material
AgNi
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V DC/AC
- Switching current (max.)
3 A
- Max. switching capacity
500 VA
- Durability
20000000 switching cycles
- Features
+ LED display
- Max. temperature
+60 °C
- Min. temperature
-20 °C
- Length
68 mm
- Width
12 mm
- Height
82 mm
- Dim
(L x W x H) 68 x 12 x 82 mm
- Content
1 pc(s)
- UKCA
not relevant
