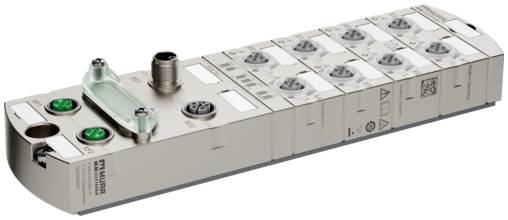

Murrelektronik 54612 MVK Pro MEC DIO8 IOL8 M12L 5P Expansion 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details
MVK Pro MEC DIO8 IOL8 M12L 5 P
- SIMATIC S7-200 is easy: programming software with Windows user interface
- instructions for quick access to PLC technology
- easy installation onto a top hat profile rail
- SIMATIC S7-200 is compact: e.g. CPU 222: (W x H x D) 90 x 80 x 62 mm
- own S7-200 net with PPI protocol
- freely programmable interface.
Technical specifications
- Product family: MVK
- Type 8× Master
- Inputs 16
- Suitable for mounting method: 2-hole screw mounting
- System: EtherCAT
- CE 1
- Protection class IP67
- Signal type Digital;IO-Link
- UKCA 1
- Short-circuit-proof: Yes
- Depth: 225
- Outputs: 16
- Width: 63
- Number of IO-Link Master: 8
- Height: 42
- Min. Storage temperature: -40
- Storage temperature max.: 85
- Connection type 1: X0-X7
- LED-display: Ethernet-connection/ data traffic
- Case material: metal
- Revision ID: V1.1
- Connection type 2: XD1
- Number of slots: 8
- TRANSFER RATE: COM1, COM2, COM3
- CONNECTION TECHNOLOGY I/O M12
- Port class A;B
- Connection type 3: XD2
- Overload-proof: Yes
- Connection type 4: XF1, XF2
- CULus 1
- Short-circuit diagnosis: Yes
- Diagnostics by LED: Per module and channel
- Actuator warning: Per channel via LED and BUS
- Overload diagnosis: Yes
- Diagnostics: Advanced
- Temperature monitoring: Yes
- Diagnostics via BUS: Per module and channel
- Material short text: MVK Pro MEC DIO8 IOL8 M12L 5P
- Type input: For 3-wire sensors or mechanical switches;IO-Link devices;PNP
- Operating voltage standard IEC / EN 61131-2
- Transmission rate detection: Automatic
- IO-Link events: Undervoltage supply; no voltage
- Protocols EtherCAT: CANopen over EtherCAT (CoE);File Access over EtherCAT (FoE);Ethernet over EtherCAT (EoE);ADS over EtherCAT (AoE)
- Cable break: Per port
- Web Interface: Yes
- Actuator current UA per output max.: 2
- Power connection M12 (5-pin)
- Operating voltage UA DC:24
- Functions: ESM, EMCY
- Total current UA max.: 16
- Total current US max.: 16
- Ambient temperature: -40 °C - 85 °C
- Operating voltage US DC: 24
- Current monitoring: Yes
- Power monitoring: Yes
- Max. Current carrying capacity 10
- Sensor current US per input max.: 2
- OPC UA Transport: UA TCP;UA Binary Encoding;UA Secure Conversation
- JSON INTEGRATION: REST API;MQTT
- Output current per pin max. 2
- Total current outputs max.: 10
- Process data length output: 32
- Process data length input: 32
- Output current per port max. 4
- FMMU:8
- Sync Manager: 4
- OPC UA publication interval min.: 100
- Number of sessions/clients OPC UA max.: 5
- Product type
Expansion
- No. of digital inputs (max.)
16
- No. of inputs (max.)
16
- No. of outputs (max.)
16
- Operating voltage
24 V DC
- Height
42 mm
- Width
63 mm
- Type
MVK Pro MEC DIO8 IOL8 M12L 5P
- Manufacturer part #
54612
- Dim
(W x H x D) 63 x 42 x 225 mm
- Max. ambient temperature
85 °C
- Min. ambient temperature
-40 °C
- Depth
225 mm
- Ethernet ports
8
- Protection class
IP67
- UKCA
yes
