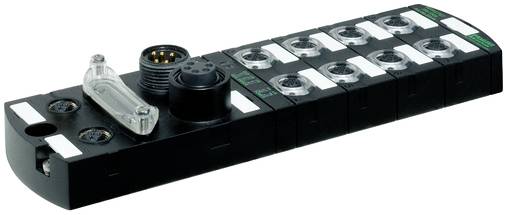

Murrelektronik 55081 IMPACT67 EC DI16 Expansion 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
IMPACT67 compact module, plastic
- SIMATIC S7-200 is easy: programming software with Windows user interface
- instructions for quick access to PLC technology
- easy installation onto a top hat profile rail
- SIMATIC S7-200 is compact: e.g. CPU 222: (W x H x D) 90 x 80 x 62 mm
- own S7-200 net with PPI protocol
- freely programmable interface.
Technical specifications
- Product family: Impact67
- Inputs 16
- Suitable for mounting method: 2-hole screw mounting
- System: EtherCAT
- CE 1
- Protection class IP67
- Signal type: Digital
- UKCA 1
- Short-circuit-proof: Yes
- Depth: 225
- Width: 63
- Min. Operating temperature: -25
- Height: 39
- Max. Operating temperature: 55
- Min. Storage temperature: -25
- Storage temperature max.: 70
- Connection type 1: 0-7
- LED-display: Ethernet-connection/ data traffic
- Housing material: Plastic
- Connection type 2: Port 1, port 2
- Number of slots: 8
- CONNECTION TECHNOLOGY I/O M12
- Connection type 3: Power in
- Overload-proof: Yes
- CCSAus: 1
- Connection type 4: Power out
- CULus 1
- Diagnostics by LED: Per module and channel
- Diagnostics: Basis
- Address setting: Automatic;rotary switch
- Diagnostics via BUS: Per module
- MATERIAL SHORT TEXT: IMPACT67 EC DI16
- Type input: For 3-wire sensors or mechanical switches; PNP
- Operating voltage standard IEC / EN 61131-2
- Power connection 7/8" (5-pin)
- Total current UA max.: 9
- Total current US max.: 9
- Ambient temperature: -25 °C to 70 °C
- Operating voltage US DC: 24
- Sensor current US per input max.: 0.2
- Product type
Expansion
- No. of digital inputs (max.)
16
- No. of inputs (max.)
16
- Operating voltage
24 V DC
- Height
39 mm
- Width
63 mm
- Type
IMPACT67 EC DI16
- Manufacturer part #
55081
- Dim
(W x H x D) 63 x 39 x 225 mm
- Max. ambient temperature
55 °C
- Min. ambient temperature
-25 °C
- Depth
225 mm
- Ethernet ports
8
- Protection class
IP67
- Max. temperature
55 °C
- Min. temperature
-25 °C
- UKCA
yes
